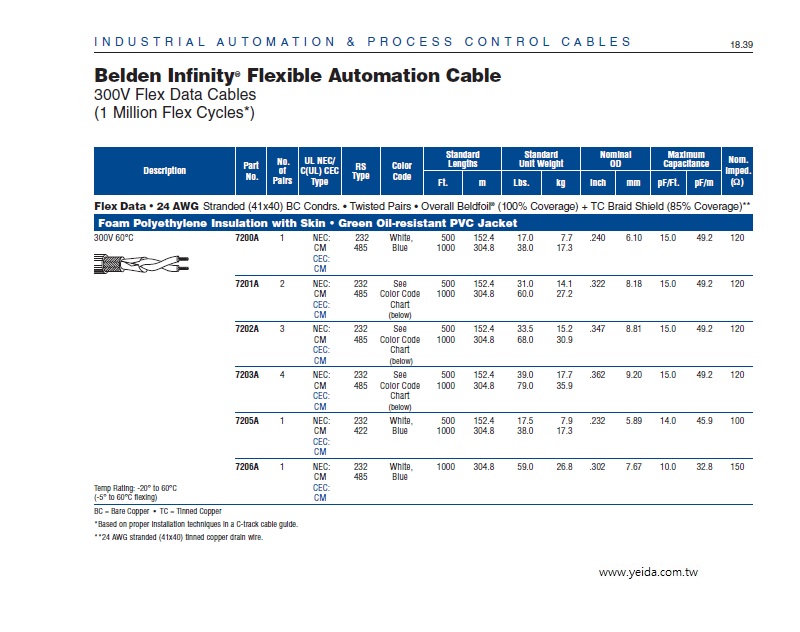

Belden Infinity® Flexible Automation Cable
300V Flex Data Cables
(1 Million Flex Cycles*)

FlexData • 24AWG Stranded (41x40) BC Condrs. • Twisted Pairs • Overall Beldfoil® (100% Coverage) + TC Braid Shield (85% Coverage)**
Foam Polyethylene Insulation with Skin • Green Oil-resistant PVC Jacket
300V 60°C CM

Belden- 7200A 1P  RS-232/ 485
Belden- 7201A 2P  RS-232/ 485
Belden- 7202A 3P  RS-232/ 485
Belden- 7203A 4P  RS-232/ 485
Belden- 7205A 1P  RS-232/ 422
Belden- 7206A 1P RS-232/ 485
　

Temp Rating: -20° to 60°C CEC:
(-5° to 60°C flexing) CM
BC = Bare Copper • TC = Tinned Copper
*Based on proper installation techniques in a C-track cable guide.
**24 AWG stranded (41x40) tinned copper drain wire.

7202A    Multi-Conductor - 300V Flex Data Cables 24 AWG stranded (41x40) bare copper conductors, twisted pairs, foam polyethylene insulation with skin, overall Beldfoil® (100% coverage), tinned copper braid shield (85% coverage), oil-resistant PVC jacket. 　 Put Ups and Colors: Item # Putup Ship Weight Color Notes Item Desc 7202A X4P1000 1,000 FT 68.000 LB GREEN X4P C 3 PR #24 FHDPE/HDPE SH PVC 7202A X4P500 500 FT 33.500 LB GREEN X4P C 3 PR #24 FHDPE/HDPE SH PVC Notes: 　 C = CRATE REEL PUT-UP. 　 Usage (Overall) Suitable Applications: Flex Data, RS232, RS485 Physical Characteristics (Overall) Conductor AWG: # Pairs AWG Stranding Conductor Material 3 24 41x40 BC - Bare Copper Insulation Insulation Material: Insulation Material FPE - Foam Polyethylene PE - Polyethylene Insulation Resistance: 6.1 Megohms/1000 ft. minimum Outer Shield Outer Shield Material: Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%) 1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100 2   Braid TC - Tinned Copper 85 Outer Shield Drain Wire AWG: AWG Stranding Drain Wire Conductor Material 24 41x40 TC - Tinned Copper Outer Jacket Outer Jacket Material: Outer Jacket Material PVC - Polyvinyl Chloride Overall Cabling Overall Cabling Color Code Chart: Number Color 1 White/Blue & Blue/White 2 White/Orange & Orange/White 3 White/Green & Green/White Overall Nominal Diameter: 0.347 in. Mechanical Characteristics (Overall) Operating Temperature Range: -20°C To +60°C UL Temperature Rating: 60°C Bulk Cable Weight: 47.300 lbs/1000 ft. Max. Recommended Pulling Tension: 83 lbs. Min. Bend Radius (Install)/Minor Axis: 3.400 in. Min. Bend Radius (Continuous Flexing): 4.400 in. Flex Cycle Rating: 1 Million Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CM CEC/C(UL) Specification: CM EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes Other Specification: RS Type: 232/485 Flame Test UL Flame Test: UL1685 UL Loading Suitability Oil Resistance: Yes Plenum/Non-Plenum Plenum (Y/N): No Electrical Characteristics (Overall) Max. Capacitance Conductor to Conductor: Capacitance (pF/ft) 15 Nominal Velocity of Propagation: VP (%) 72 Max. Operating Voltage - UL: Voltage 300 V RMS Differential Impedance @ 1 MHz: 120 +/-15 Notes (Overall) Notes: 1 million flex cycles based on proper installation techniques in a C-track cable guide.
