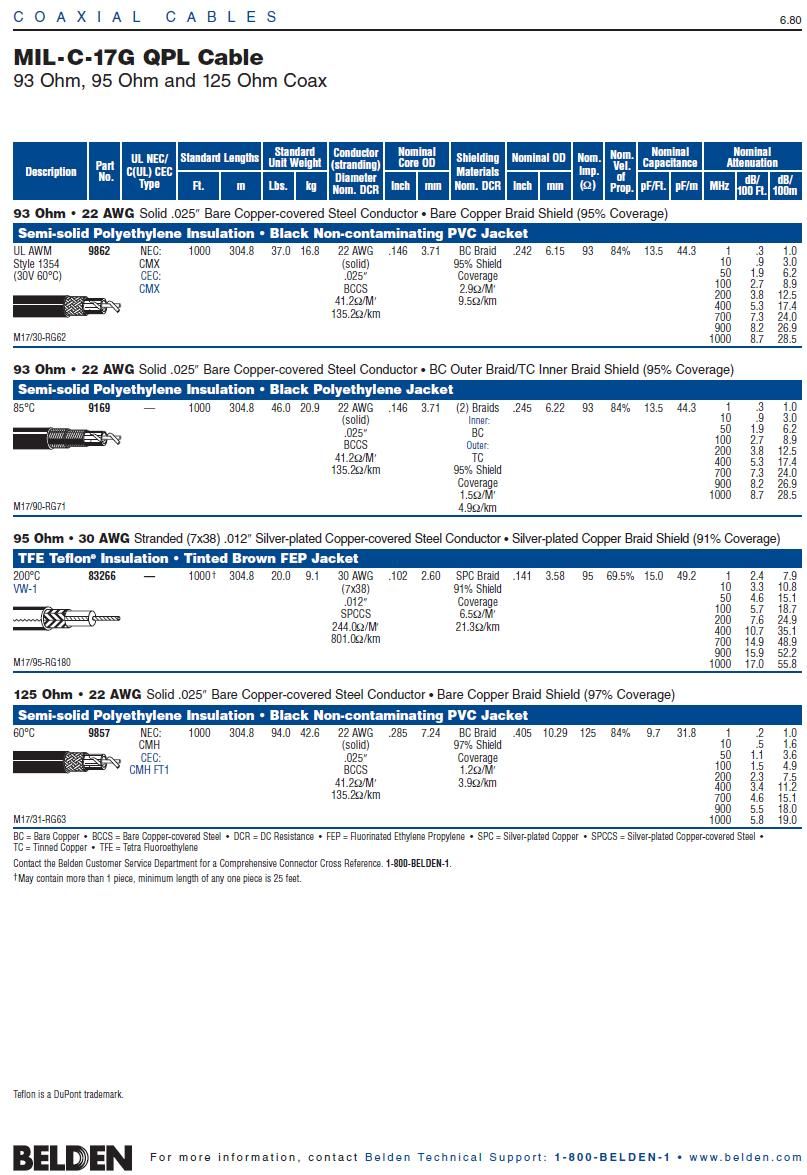

    Belden 83266 RG180 95 Ohm MIL-C-17G M17/95 Coaxial UL/MIL軍規鐵氟龍耐高溫鍍銀銅包鋼同軸電纜
    看原圖
    		463370

    商品編號: Belden-83266

    Belden 83266  RG180  95 Ohm MIL-C-17G M17/95 Coaxial UL/MIL軍規鐵氟龍耐高溫鍍銀銅包鋼同軸電纜

    95 ohm 30 AWG Stranded (7x38) .012" silver-plated copper-covered steel conductor, TFE Teflon® insulation, silver-plated copper braid shield (91% coverage), FEP jacket.


    ★★★★商品說明★★★★

    83266
    		    Coax - 95 Ohm Coax
    95 ohm 30 AWG Stranded (7x38) .012" silver-plated copper-covered steel conductor, TFE Teflon® insulation, silver-plated copper braid shield (91% coverage), FEP jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    83266 0011000 1,000 FT 19.000 LB BROWN C E #30 COAX M17/95-RG180
    Notes: 　
    C = CRATE REEL PUT-UP.
    E = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 30 7x38 SPCCS - Silver Plated Copper Covered Steel .012
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    TFE - Tetrafluoroethylene .102
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid SPC - Silver Plated Copper 91
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    FEP - Fluorinated Ethylene Propylene
    Overall Cabling
    Overall Nominal Diameter: 0.141 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -70°C To +200°C
    Non-UL Temperature Rating: 200°C
    Bulk Cable Weight: 18 lbs/1000 ft.
    Max. Recommended Pulling Tension: 25 lbs.
    Min. Bend Radius (Install)/Minor Axis: 1.400 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: No
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-C-17G M17/95-RG180
    RG Type: 180/U
    Flame Test
    UL Flame Test: VW-1
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    95
    Nom. Inductance:
    Inductance (µH/ft)
    .135
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    15.0
    Nominal Velocity of Propagation:
    VP (%)
    69.5
    Nominal Delay:
    Delay (ns/ft)
    1.48
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    244.0
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    6.5
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 2.4
    10 3.3
    50 4.6
    100 5.7
    200 7.6
    400 10.7
    700 14.9
    900 15.9
    1000 17.0
