    Belden8461 Awg18- 1Pair High-Conductivity Copper Speaker Cable 廣播聲音音響, 儀表控制電纜
    看原圖
    453114

    商品編號: Belden-8461

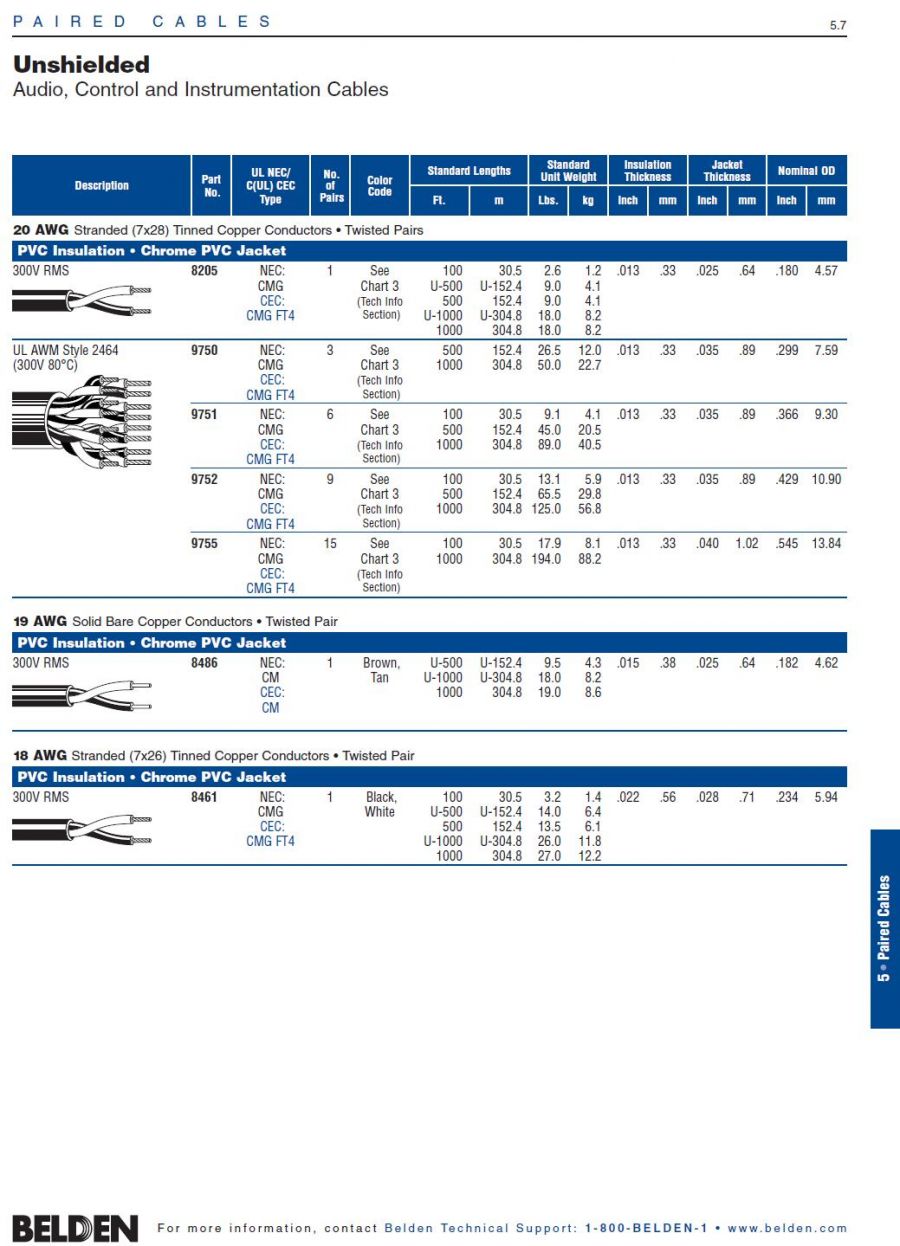

    Belden 8461 Paired - High-Conductivity Copper Speaker Cable
    廣播聲音音響, 儀表控制電纜

    18 AWG stranded (7x26) tinned copper conductors, PVC insulation, twisted pair, PVC jacket.
    8461
       Multi-Conductor - High-Conductivity Copper Speaker Cable Twisted Jacket Con
    18 AWG stranded (7x26) tinned copper conductors, PVC insulation, twisted pair, PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8461 060U1000 1,000 FT 26.000 LB CHROME   2 #18 PVC FRPVC
    8461 060U500 500 FT 14.000 LB CHROME   2 #18 PVC FRPVC
    8461 060100 100 FT 3.200 LB CHROME   2 #18 PVC FRPVC
    8461 0601000 1,000 FT 27.000 LB CHROME C 2 #18 PVC FRPVC
    8461 060500 500 FT 13.500 LB CHROME C 2 #18 PVC FRPVC
    8461 0605000 5,000 FT 130.000 LB CHROME   2 #18 PVC FRPVC
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    1 18 7x26 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .022
    Outer Shield
    Outer Shield Material:
    Outer Shield Material
    Unshielded
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material Nom. Wall Thickness (in.)
    PVC - Polyvinyl Chloride .028
    Overall Cabling
    Overall Nominal Diameter: 0.234 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Black & White
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +80°C
    Bulk Cable Weight: 24 lbs/1000 ft.
    Max. Recommended Pulling Tension: 45 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.500 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMG
    CEC/C(UL) Specification: CMG
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    C(UL) Flame Test: FT4
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    22.0
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    5.86
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    4.8 Amps per conductor @ 20°C
