    Belden-1883A 24 AWG  Single-Pair Cable 一對聲音音響儀表控制電線
    看原圖
    30015322

    商品編號: Belden-1883A

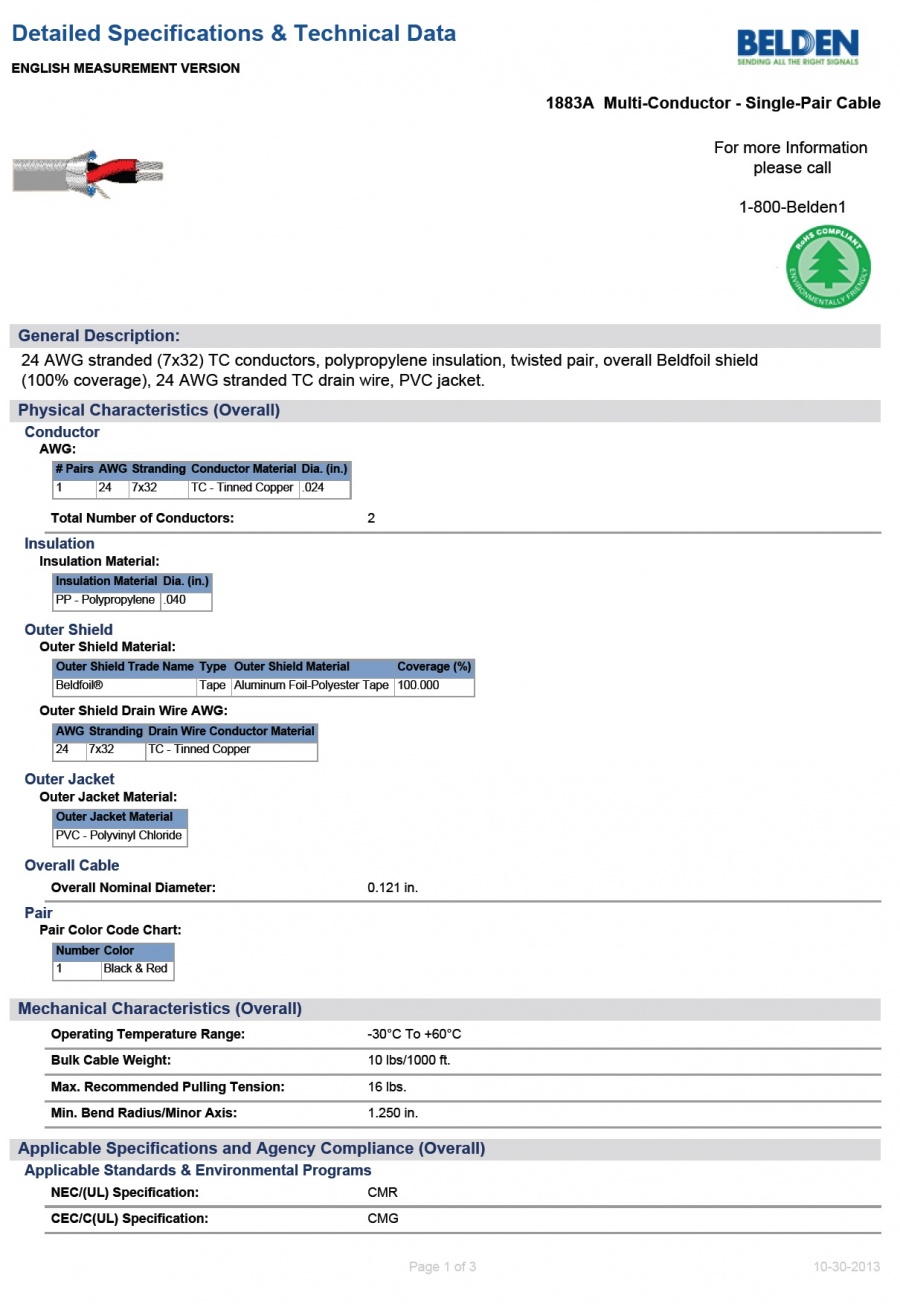

    Belden-1883A 24 AWG Single-Pair Cable 一對聲音音響儀表控制電線


    1883A
       Multi-Conductor - Single-Pair Cable
    24 AWG stranded (7x32) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket.
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material Dia. (in.)
    1 24 7x32 TC - Tinned Copper .024
    Total Number of Conductors: 2
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    PP - Polypropylene .040
    Outer Shield
    Outer Shield Material:
    Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    Beldfoil® Tape Aluminum Foil-Polyester Tape 100.000
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    24 7x32 TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cable
    Overall Nominal Diameter: 0.121 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Black & Red
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +60°C
    Bulk Cable Weight: 10 lbs/1000 ft.
    Max. Recommended Pulling Tension: 16 lbs.
    Min. Bend Radius/Minor Axis: 1.250 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMR
    CEC/C(UL) Specification: CMG
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: No
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    CSA Flame Test: FT4
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    52
    Nom. Inductance:
    Inductance (µH/ft)
    .17
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    31
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    58
    Nominal Velocity of Propagation:
    VP (%)
    66
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    23.5
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    18.5
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    2 Amps per conductor @ 25°C
    Notes (Overall)
    Notes: The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield. For cross-connect use with 1408R (et. al.) Snake Cables.
