    首頁 > Belden-Video-Camera-Triax-Cable(高級影像同軸電纜)

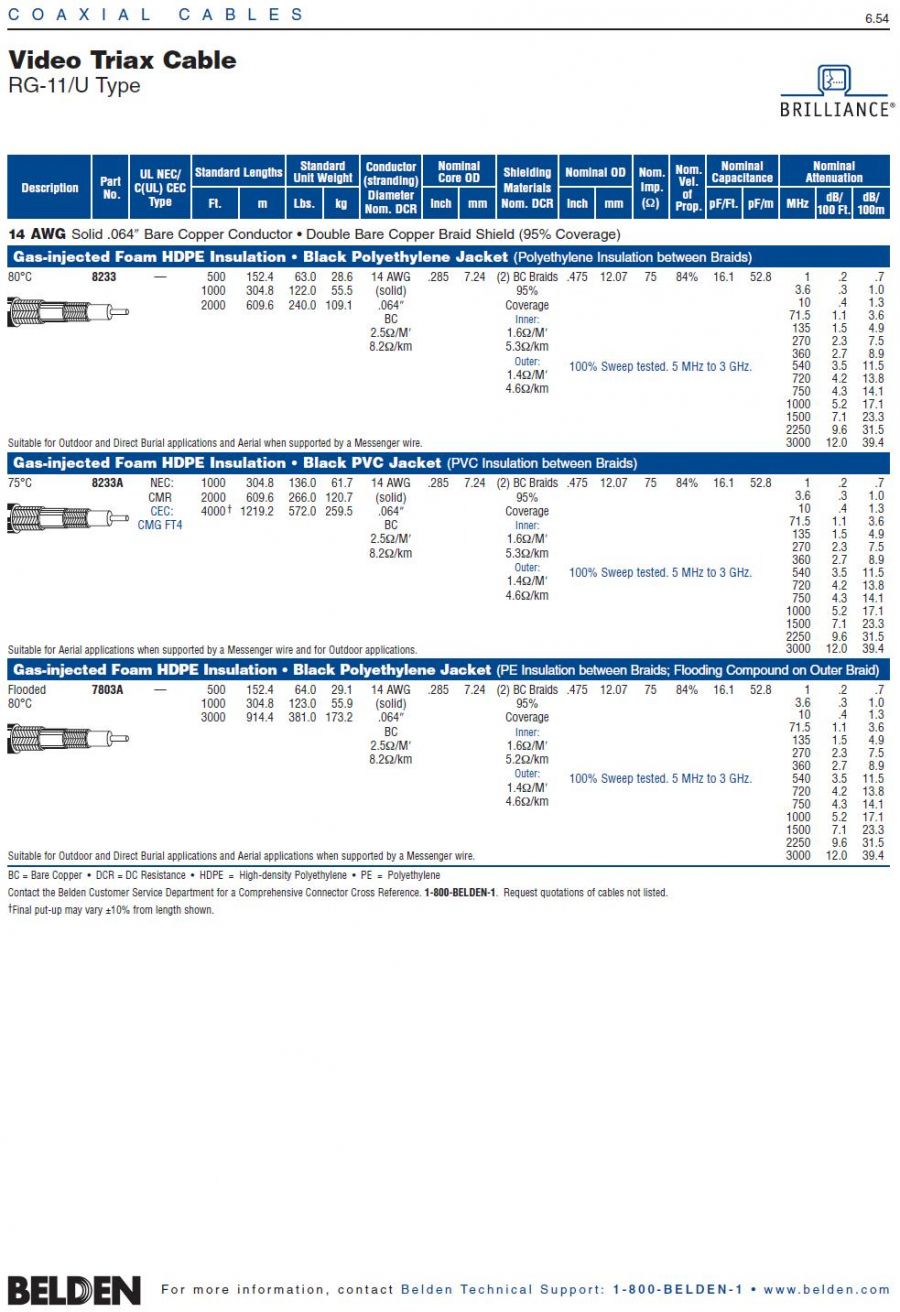

    Belden8233A  Video Triax Cable Awg14 FHDPE-PVC-PVC RG-11/U Type 高頻3GRG11雙編織影像聲音傳輸同軸電纜
    看原圖
    474115

    商品編號: Belden-8233A

    Belden8233A Video Triax Cable Awg14 FHDPE-PVC-PVC RG-11/U Type 高頻3GRG11雙編織影像聲音傳輸同軸電纜


    14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% coverage), PVC jacket.
    8233A
       Coax - RG-11/U Type
    14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% coverage), PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8233A 0101000 1,000 FT 136.000 LB BLACK C #14 GIFHDPE/PE BRD PVC BRD PVC
    8233A 0102000 2,000 FT 266.000 LB BLACK C #14 GIFHDPE/PE BRD PVC BRD PVC
    8233A 0104000 4,000 FT 572.000 LB BLACK C #14 GIFHDPE/PE BRD PVC BRD PVC
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 14 Solid BC - Bare Copper .064
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    Gas-injected FHDPE - Foam High Density Polyethylene .285
    Inner Shield
    Inner Shield Material:
    Type Inner Shield Material Coverage (%)
    Braid BC - Bare Copper 95
    Inner Jacket
    Inner Jacket Material:
    Inner Jacket Material Nom. Dia. (in.)
    PVC - Polyvinyl Chloride .365
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid BC - Bare Copper 80
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.475 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +75°C
    UL Temperature Rating: 60°C
    Non-UL Temperature Rating: 75°C
    Bulk Cable Weight: 125 lbs/1000 ft.
    Max. Recommended Pulling Tension: 170 lbs.
    Min. Bend Radius (Install)/Minor Axis: 5 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMR
    CEC/C(UL) Specification: CMG
    EU CE Mark: No
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    RG Type: 11/U
    Flame Test
    UL Flame Test: UL1666 Vertical Shaft
    Suitability
    Suitability - Indoor: Yes
    Suitability - Outdoor: Yes
    Suitability - Aerial: Yes - When supported by a messenger wire
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    75
    Nom. Inductance:
    Inductance (µH/ft)
    0.097
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    16.1
    Nominal Velocity of Propagation:
    VP (%)
    84
    Nominal Delay:
    Delay (ns/ft)
    1.20
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    2.5
    Nom. Inner Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    1.6
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    1.4
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 .2
    3.6 .3
    10 .4
    71.5 1.1
    135 1.5
    270 2.3
    360 2.7
    540 3.5
    720 4.2
    750 4.3
    1000 5.2
    1500 7.1
    2250 9.6
    3000 12.0
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Minimum Return Loss:
    Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB)
    5 850 21
    851 3000 15
    Sweep Test
    Sweep Testing: 100% Sweep tested 5 MHz to 3 GHz.
