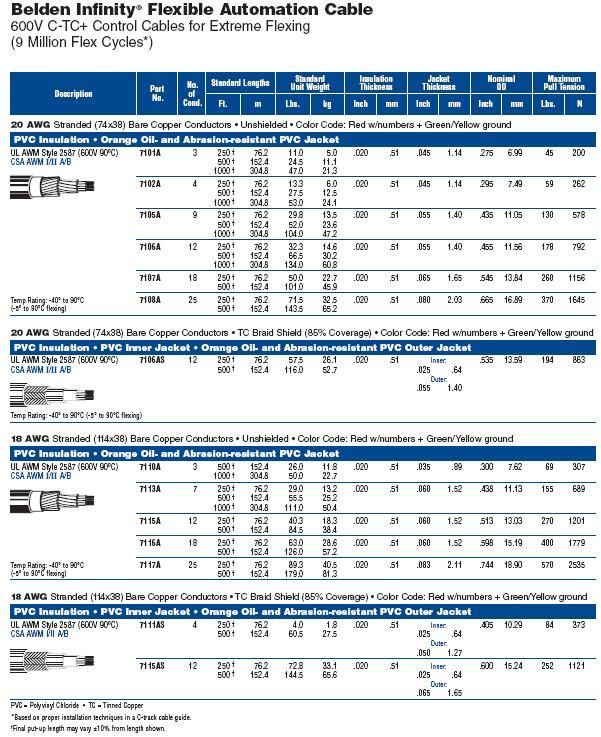

600V C-TC+ Control Cables for Extreme Flexing
(9 Million Flex Cycles*)

20 AWG Stranded (74x38) Bare Copper Conductors • Unshielded • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • Orange Oil- and Abrasion-resistant PVC Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7101A 3C
Belden-7102A 4C
Belden-7106A 12C
Temp Rating: -40° to 90°C Belden-7108A 25C (-5° to 90°C flexing)
　

20 AWG Stranded (74x38) Bare Copper Conductors • TC Braid Shield (85% Coverage) • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • PVC Inner Jacket • Orange Oil- and Abrasion-resistant PVC Outer Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7106AS 12C
Temp Rating: -40° to 90°C (-5° to 90°C flexing)
　

18 AWG Stranded (114x38) Bare Copper Conductors • Unshielded • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • Orange Oil- and Abrasion-resistant PVC Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7110A 3C
Belden-7113A 7C
Belden-7115A 12C
Belden-7116A 18C
Temp Rating: -40° to 90°C Belden-7117A 25C
(-5° to 90°C flexing)
　

18 AWG Stranded (114x38) Bare Copper Conductors • TC Braid Shield (85% Coverage) • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • PVC Inner Jacket • Orange Oil- and Abrasion-resistant PVC Outer Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7111AS 4C
Belden-7115AS 12C

PVC = Polyvinyl Chloride • TC = Tinned Copper
*Based on proper installation techniques in a C-track cable guide.
†Final put-up length may vary ±10% from length shown.

Belden Infinity® Flexible Automation Cable

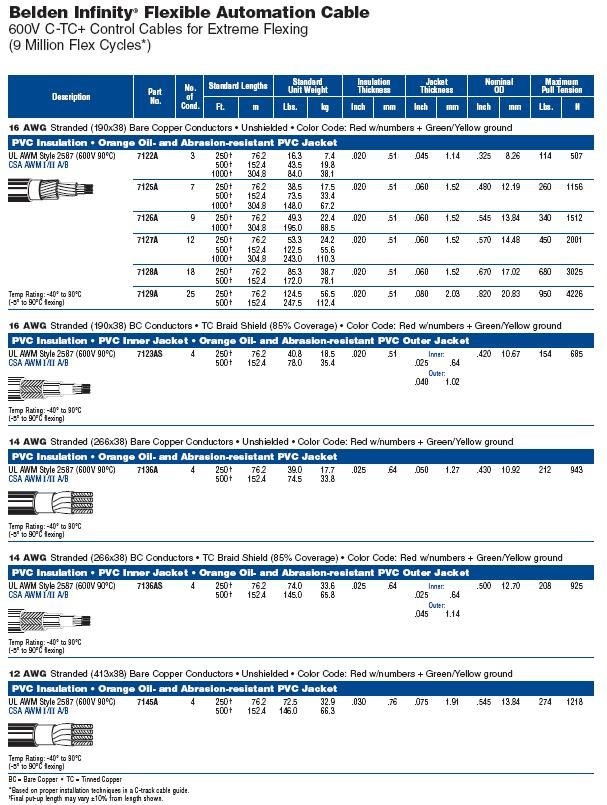

600V C-TC+ Control Cables for Extreme Flexing
(9 Million Flex Cycles*)

16 AWG Stranded (190x38) Bare Copper Conductors • Unshielded • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • Orange Oil- and Abrasion-resistant PVC Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7122A 3C
Belden-7125A 7C
Belden-7126A 9C
Belden-7127A 12C
Belden-7128A 18C
Temp Rating: -40° to 90°C Belden-7129A 25C
(-5° to 90°C flexing)
　

16 AWG Stranded (190x38) BC Conductors • TC Braid Shield (85% Coverage) • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • PVC Inner Jacket • Orange Oil- and Abrasion-resistant PVC Outer Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7123AS 4C
Temp Rating: -40° to 90°C
(-5° to 90°C flexing)
　

14 AWG Stranded (266x38) Bare Copper Conductors • Unshielded • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • Orange Oil- and Abrasion-resistant PVC Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7136A 4C
Temp Rating: -40° to 90°C
(-5° to 90°C flexing)
　

14 AWG Stranded (266x38) BC Conductors • TC Braid Shield (85% Coverage) • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • PVC Inner Jacket • Orange Oil- and Abrasion-resistant PVC Outer Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7136AS 4C
Temp Rating: -40° to 90°C
(-5° to 90°C flexing)
　

12 AWG Stranded (413x38) Bare Copper Conductors • Unshielded • Color Code: Red w/numbers + Green/Yellow ground
PVC Insulation • Orange Oil- and Abrasion-resistant PVC Jacket
UL AWM Style 2587 (600V 90°C)

Belden-7145A 4C
Temp Rating: -40° to 90°C
(-5° to 90°C flexing)
BC = Bare Copper • TC = Tinned Copper
*Based on proper installation techniques in a C-track cable guide.
†Final put-up length may vary ±10% from length shown.
