商品編號: Belden-34414
Belden-34414 Hook-up/Lead - Awg 14(41x30) UL AWM Style 3191 600V, 105°C Hypalon®海巴龍電子線
Belden 34414
|
|
Hook-up/Lead - UL AWM Style 3191
Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for Class 130(B) insulation systems. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
34414 002500 |
500 FT |
14.000 LB |
RED |
F |
#14 STR CSM 105C 600V |
34414 005500 |
500 FT |
14.000 LB |
GREEN, DARK |
F |
#14 STR CSM 105C 600V |
34414 0084000 |
4,000 FT |
108.000 LB |
GRAY |
C I U |
#14STR CSM 105C 600V GRY |
34414 008500 |
500 FT |
13.500 LB |
GRAY |
F |
#14 STR CSM 105C 600V |
34414 010100 |
100 FT |
3.300 LB |
BLACK |
|
#14 STR CSM 105C 600V |
34414 0104000 |
4,000 FT |
108.000 LB |
BLACK |
|
#14STR CSM 105C 600V BLK |
34414 010500 |
500 FT |
13.500 LB |
BLACK |
F |
#14 STR CSM 105C 600V |
|
Notes: |
|
C = CRATE REEL PUT-UP.
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10000' PER COLORCOMBINATION. (SEE TOPCOAT ADDER TABLE)
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
14 |
41x30 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Trade Name |
Insulation Material |
Wall Thickness (in.) |
Hypalon® |
Chlorosulphonated Polyethylene |
.045 |
|
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.170 in. |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Plenum/Non-Plenum
Notes (Overall)
Notes: |
Hypalon - Trademark of DuPont |
|
|
|

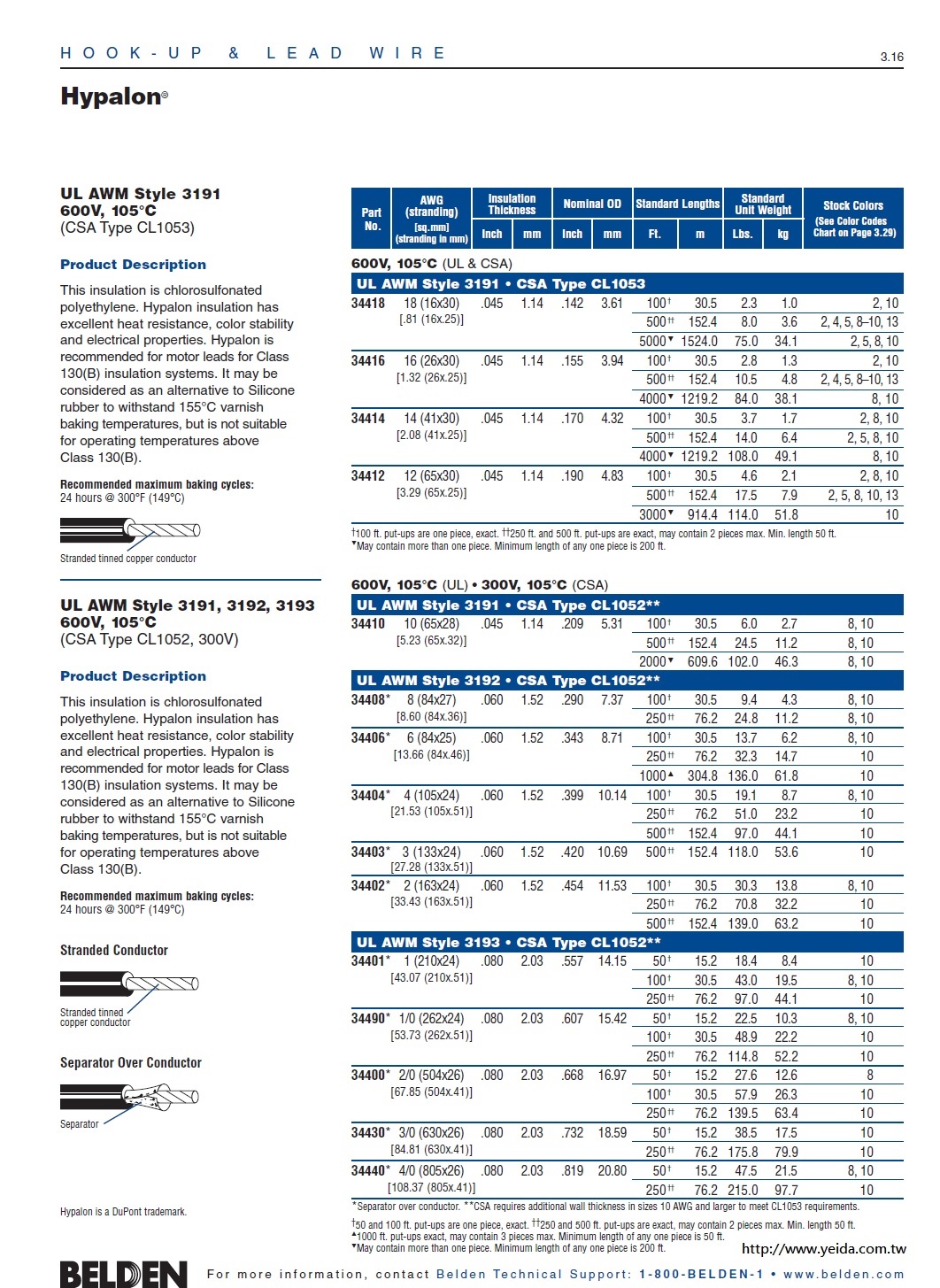

Hypalon®
UL AWM Style 3191
600V, 105°C
(CSA Type CL1053)
Product Description
This insulation is chlorosulfonated
polyethylene. Hypalon insulation has
excellent heat resistance, color stability
and electrical properties. Hypalon is
recommended for motor leads for Class
130(B) insulation systems. It may be
considered as an alternative to Silicone
rubber to withstand 155°C varnish
baking temperatures, but is not suitable
for operating temperatures above
Class 130(B).
Recommended maximum baking cycles:
24 hours @ 300°F (149°C)
|
