    首頁 > Belden-Neoprene鳥玻林電子線

    Belden31501    Hook-up/Lead  - Awg 1 UL AWM Style 3049 600V, 90°C 鳥波林電子線

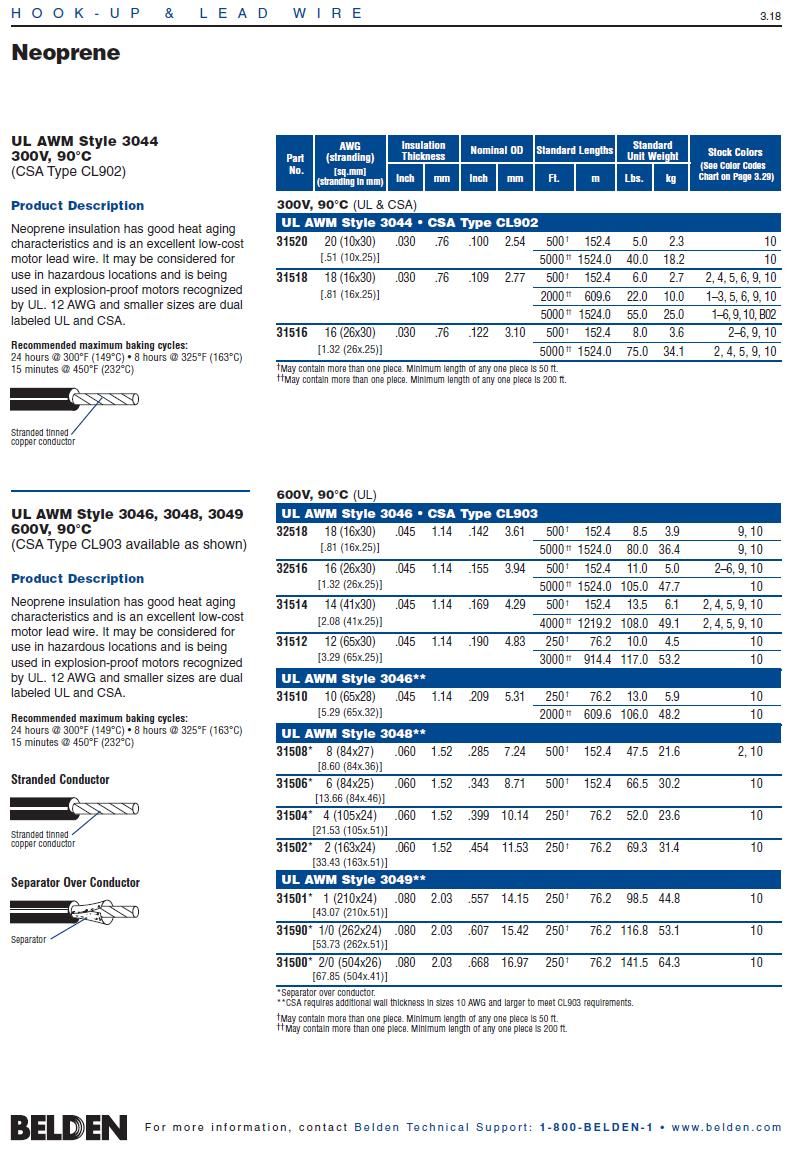

    看原圖
    455499

    商品編號: Belden-31501

    Belden31501 Hook-up/Lead - Awg 1 UL AWM Style 3049 600V, 90°C 鳥波林電子線

    DESCRIPTION:
    Neoprene insulation has good heat aging characteristics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Conductors: 1
    Total Number of Conductors: 1
    AWG: 1
    Stranding: 210x24
    Conductor Material: TC - Tinned Copper

    SEPARATOR :
    Separator Material over Conductor: Y

    INSULATION :
    Insulation Material: Neoprene
    Insulation Thickness: .080 in.

    OVERALL :
    Overall Nominal Diameter: .557 in.
    MECHANICAL CHARACTERISTICS :

    Non-UL Temperature Rating: 90°C
    Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    UL AWM Style: 3049
    UL Rating: 600 V, 90°C
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 01/01/2004

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    PUT-UPS AND COLORS:

    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
    31501 010250 #1 STR CR 90C 600V 250 98.5 BLACK C F


    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
