    Belden31520  Hook-up/Lead  - Awg 20 UL AWM Style 3044 CSA Type CL902  300V, 90°C 鳥波林電子線

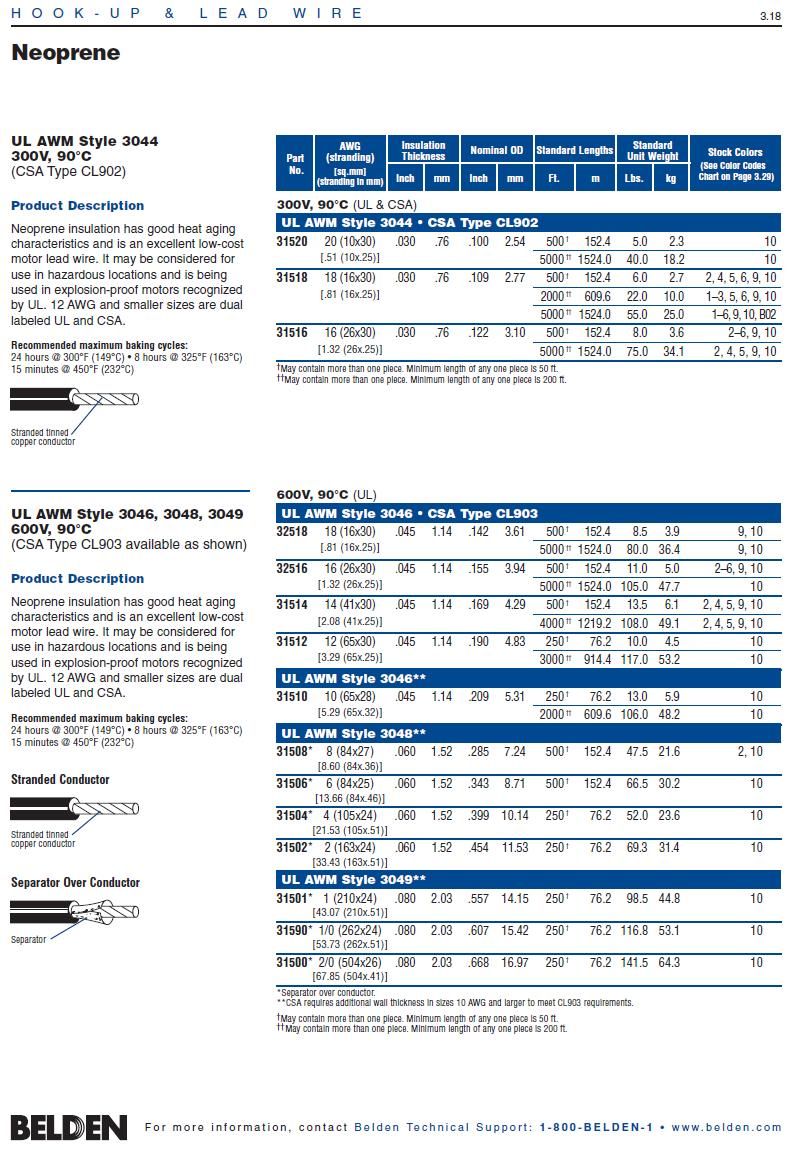

    看原圖
    455504

    品編號: Belden-31520

    Belden31520 Hook-up/Lead - Awg 20 UL AWM Style 3044 CSA Type CL902 300V, 90°C 鳥波林電子線

    31520
       Hook-up/Lead - UL AWM Style 3044
    Neoprene insulation has good heat aging characteristics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    31520 010500 500 FT 4.500 LB BLACK F #20 STR CR 90C 300V
    31520 0105000 5,000 FT 40.000 LB BLACK C I Z #20 STR CR 90C 300V
    Notes:
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 20 10x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    Neoprene .030
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.100 in.
    Mechanical Characteristics (Overall)
    Non-UL Temperature Rating: 90°C
    Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 3044
    UL Rating: 300 V RMS, 90°C
    CSA Rating: 300 V RMS, 90°C
    CSA Type: CL902
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
