    首頁 > Belden-X-Dur高溫電子線

    Belden35720  Hook-up/Lead Awg 20 -  UL AWM Style 3199 - XL-DUR® 交連PE電子線
    看原圖
    454663

    商品編號: Belden-35720

    Belden-35720 Hook-up/Lead Awg 20 - UL AWM Style 3199 - XL-DUR® 交連PE電子線

    DESCRIPTION:
    The insulation is cross-linked polyethylene applied in a single extrusion. This construction has excellent thermal aging characteristics, moisture resistance, and solvent resistance.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Conductors: 1
    Total Number of Conductors: 1
    AWG: 20
    Stranding: 10x30
    Conductor Material: TC - Tinned Copper

    INSULATION :
    Insulation Material: XLPE - Cross Linked Polyethylene
    Insulation Thickness: .015 in.

    OVERALL :
    Overall Nominal Diameter: .073 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    UL AWM Style: 3199
    UL Rating: 300 V RMS, 105°C
    CSA Type: CL1054
    CSA Rating: 300 V RMS, 105°C
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 07/01/2004

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N

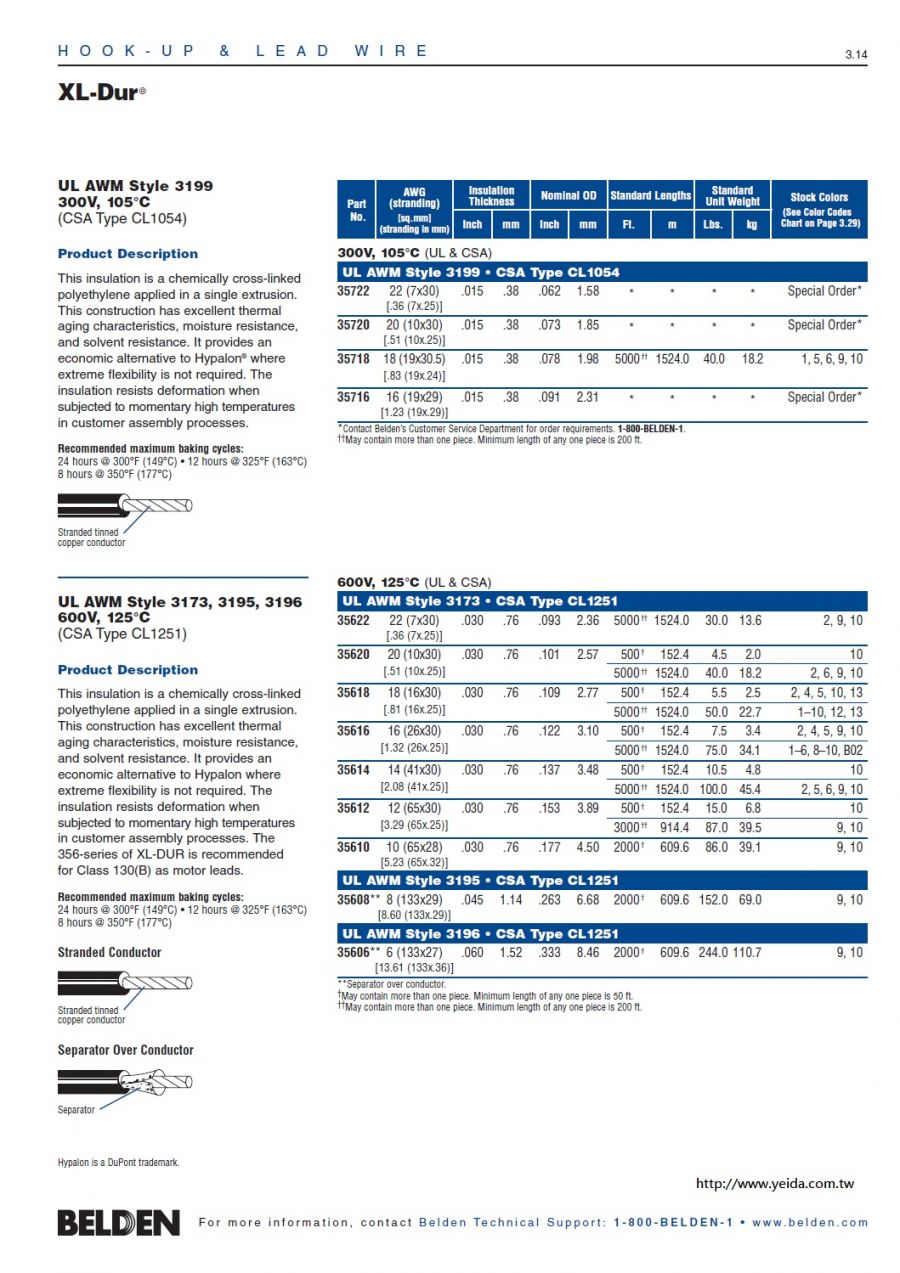

    UL AWM Style 3199
    300V, 105°C
    (CSA Type CL1054)


    Product Description
    This insulation is a chemically cross-linked
    polyethylene applied in a single extrusion.
    This construction has excellent thermal
    aging characteristics, moisture resistance,
    and solvent resistance. It provides an
    economic alternative to Hypalon® where
    extreme flexibility is not required. The
    insulation resists deformation when
    subjected to momentary high temperatures
    in customer assembly processes.
    Recommended maximum baking cycles:
    24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
    8 hours @ 350°F (177°C)
