    首頁 > Belden-X-Dur高溫電子線

    Belden-35420 Hook-up/Lead Awg 20 -  UL AWM Style 3436 and 3321 - XL-DUR® 耐高溫交連 XLPE電子線
    看原圖
    454668

    商品編號: Belden-35420

    Belden35420 Hook-up/Lead Awg 20 - UL AWM Style 3436 and 3321 - XL-DUR® 耐高溫交連 XLPE電子線

    DESCRIPTION:
    This cross-linked polyethylene lead wire is available for higher temperature applications. It is UL recognized to 600V, 150°C. As with other XLPE polyethylene lead wire, it has excellent heat aging characteristics, electrical and physical properties.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Conductors: 1
    Total Number of Conductors: 1
    AWG: 22
    Stranding: 7x30
    Conductor Material: TC - Tinned Copper

    INSULATION :
    Insulation Material: XLPE - Cross Linked Polyethylene
    Insulation Thickness: .030 in.

    OVERALL :
    Overall Nominal Diameter: .093 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    UL AWM Style: 3436, 3321
    UL Rating: 600 V, 150°C
    CSA Type: CL1251, AWM
    CSA Rating: 600 V, 125°C, 150°C

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N

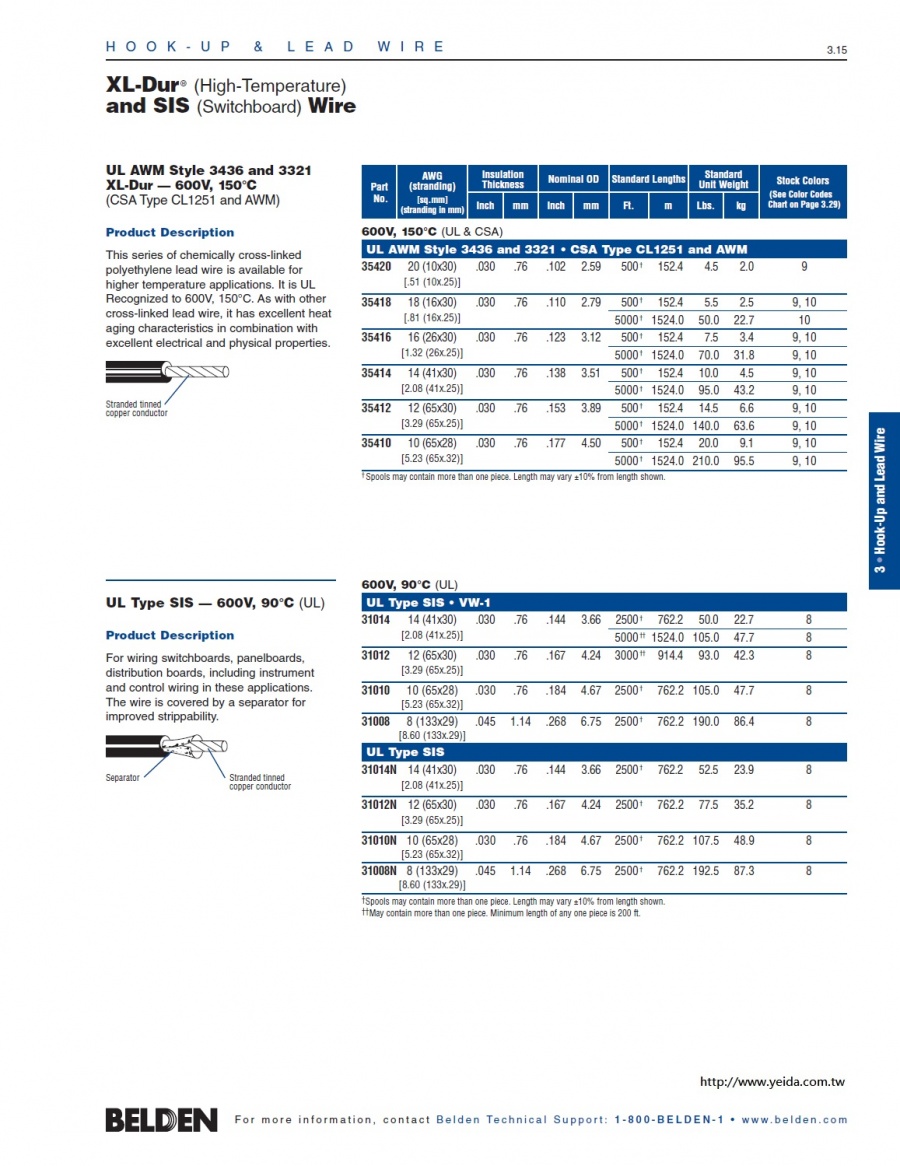

    UL AWM Style 3436 and 3321
    XL-Dur — 600V, 150°C
    (CSA Type CL1251 and AWM)


    Product Description
    This series of chemically cross-linked
    polyethylene lead wire is available for
    higher temperature applications. It is UL
    Recognized to 600V, 150°C. As with other
    cross-linked lead wire, it has excellent heat
    aging characteristics in combination with
    excellent electrical and physical properties.
