    首頁 > Belden-Silicone-Rubber矽橡膠電子線

    Belden33306  AWG 6  Hook-up/Lead  -  UL AWM Style 3213 600 V, 150°C 耐高溫矽橡膠電子線
    看原圖
    453848

    商品編號: Belden-33306

    Belden-33306  AWG 6  Hook-up/Lead  -  UL AWM Style 3213 600 V, 150°C 耐高溫矽橡膠電子線

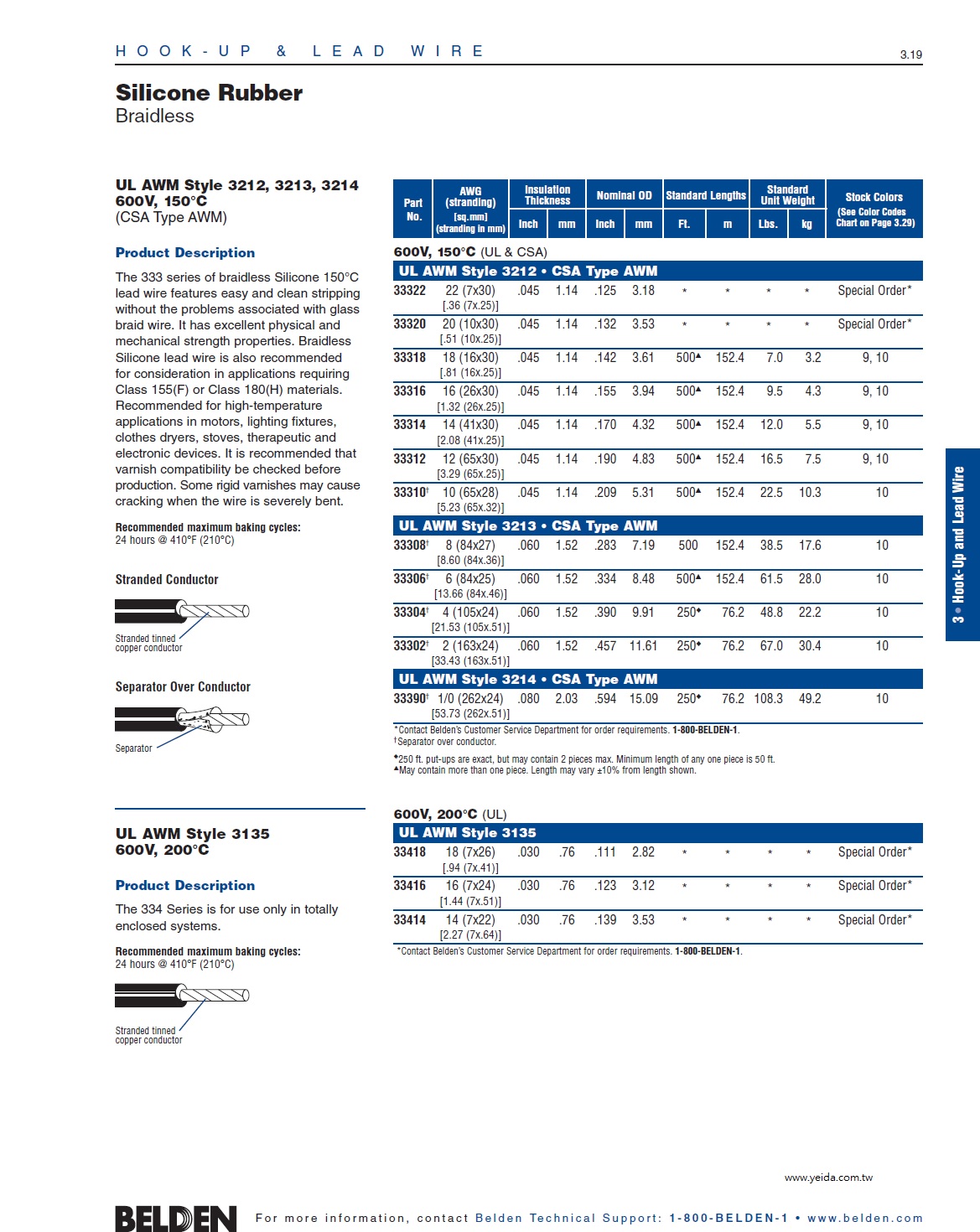

    33306   Hook-up/Lead - UL AWM Style 3213
    The 333 series of braidless Silicone 150°C lead wire features easy and clean stripping without the problems associated with glass braid wire. It has excellent physical and mechanical strength properties.
    For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    33306 010500 500 FT 61.500 LB BLACK C F #6 STR SIL 150C 600V
    Notes:
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 6 84x25 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    Silicone Rubber .060
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.334 in.
    Mechanical Characteristics (Overall)
    Non-UL Temperature Rating: 150°C
    Bulk Cable Weight: 68 lbs/1000 ft.
    Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C)
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 3213
    UL Rating: 600 V, 150°C
    CSA Rating: 600 V, 150°C
    CSA Type: AWM
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
