    首頁 > Belden-Silicone-Glass-Braid矽橡膠玻璃絲編織電子線

    Belden30808 Awg8  UL AWM Style 3071 3074 3075 3125 and 3126 600 V, 200°C, VW-1 Hook-up Wire 矽橡膠玻璃絲編織電線

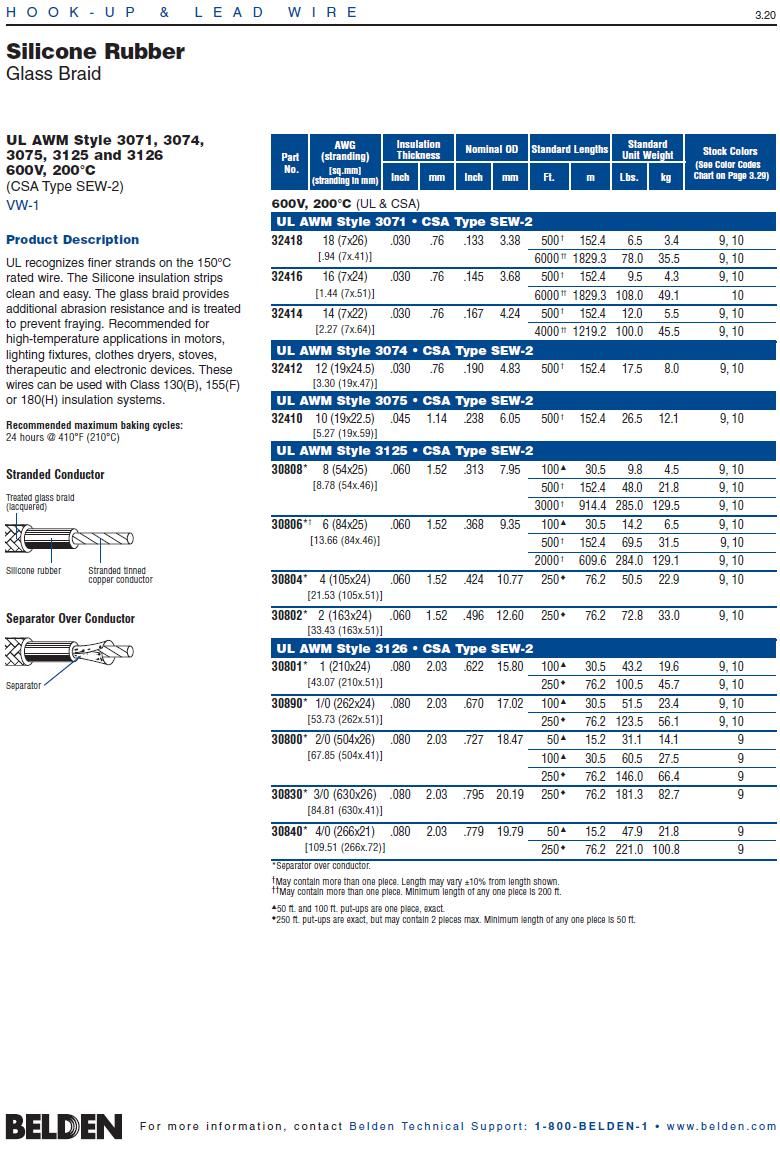

    看原圖
    454041

    商品編號: Belden-30808

    Belden30808 Awg8  UL AWM Style 3071 3074 3075 3125 and 3126 600 V, 200°C, VW-1 Hook-up Wire 矽橡膠玻璃絲編織電線


    30808
       Hook-up/Lead - UL AWM Style 3125
    The glass braid offers abrasion resistance, is treated to prevent fraying.The Silicone insulation strips easy and clean.Recommended for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    30808 009100 100 FT 9.800 LB WHITE   #8 SIL GL BRD 200C 600V
    30808 009500 500 FT 48.000 LB WHITE C F #8 SIL GL BRD 200C 600V
    30808 010100 100 FT 9.800 LB BLACK   #8 SIL GL BRD 200C 600V
    30808 0103000 3,000 FT 285.000 LB BLACK C G #8 SIL GL BRD 200C 600V
    30808 010500 500 FT 48.000 LB BLACK C F s8 SIL GL BRD 200C 600V
    Notes:
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    G = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 100'

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 8 54x25 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    Silicone with Lacquered Glass Braid Covering .060
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.313 in.
    Mechanical Characteristics (Overall)
    UL Temperature Rating: 200°C (UL AWM Style 3125)
    Bulk Cable Weight: 96 lbs/1000 ft.
    Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C)
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: UL Style 3125 (600 V 200°C)
    UL Rating: 600 V, 200°C, VW-1
    CSA Rating: 600 V, 200°C
    CSA Type: SEW-2
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Max. Operating Voltage - UL:
    Voltage
    600 V RMS (UL AWM Style 3125)
