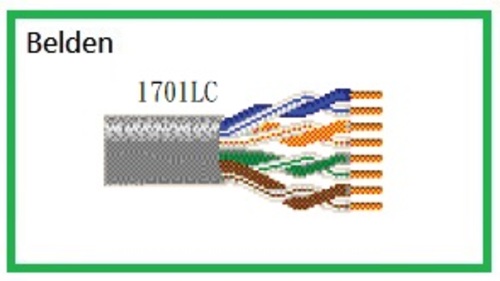

BELDEN 1701LC Multi-Conductor - Enhanced Category 5e Bonded-Pair Cable 超五類無隔離UTP乙太網路線 Bonded-Pair

BELDEN-1701LC

BELDEN 1701LC Multi-Conductor - Enhanced Category 5e Bonded-Pair Cable 超五類無隔離UTP乙太網路線 Bonded-Pair

General Description:

CAT5e+ (350MHz), 4-Bonded-Pairs, U/UTP-Unshielded, Limited Combustible FHC 25/50, Plenum-CMP, Premise Horizontal Cable, 24 AWG Solid Bare Copper Conductors, FEP Insulation, FEP Jacket.
Usage (Overall)
Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments
Physical Characteristics (Overall)
Conductor
AWG:

# Pairs	AWG	Stranding	Conductor Material
4	24	Solid	BC-Bare Copper

Total Number of Conductors: 8
Insulation
Insulation Material:

Insulation Trade Name	Insulation Material
Teflon	FEP-Fluorinated Ethylene Propylene

Outer Shield
Outer Shield Material:

Outer Shield Material

Unshielded

Outer Jacket
Outer Jacket Material:

Outer Jacket Trade Name	Outer Jacket Material
Telfon	FEP-Fluorinated Ethylene Propylene

Outer Jacket Diameter:

Nom. Dia. (mm)

4.750

Pair
Pair Color Code Chart:

Number	Color
1	White/Blue Stripe & Blue
2	White/Orange Strip & Orange
3	White/Green Strip & Green
4	White/Brown Stripe & Brown

Mechanical Characteristics (Overall)
Operating Temperature Range: -40°C To +150°C

Bulk Cable Weight: 37.205 Kg/Km

Max. Recommended Pulling Tension: 177.928 N

Min. Bend Radius/Minor Axis: 25.400 mm

Min. Bend/Installation: 48.260 mm

Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CMP, FHC 25/50

NEC Articles: 800

CEC/C(UL) Specification: CMP

EU Directive 2011/65/EU (ROHS II): Yes

Other Standards: ISO/IEC 11801 ed 2.1 (2008) Class D
EU CE Mark: Yes

EU Directive 2000/53/EC (ELV): Yes

EU Directive 2002/95/EC (RoHS): Yes

EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004

EU Directive 2002/96/EC (WEEE): Yes

EU Directive 2003/11/EC (BFR): Yes

CA Prop 65 (CJ for Wire & Cable): Yes

MII Order #39 (China RoHS): Yes

Telecommunications Standards: Category 5e - TIA 568.C.2

Other Specification: NEMA WC-63.1 Category 5e, UL Verified to Category 5e

Applicable Patents:

Country

www.belden.com/p

Flame Test
UL Flame Test: NFPA 262 Plenum Flame Test (UL910)(FT6), UL723 (NFPA 255)

CSA Flame Test: FT6

Plenum/Non-Plenum
Plenum (Y/N): Yes

Plenum Number: 1701A

Non-Plenum Number: 1700A.

Electrical Characteristics (Overall)
Nom. Mutual Capacitance:

Capacitance(pF/m)

49.215

Maximum Capacitance Unbalance (pF/100 m): 66
Nominal Velocity of Propagation:

VP(%)

Maximum Delay:

Delay (ns/100 m)

510

Max. Delay Skew

Delay Skew(ns/100m)

Maximum Conductor DC Resistance

DCR@20C (Ohm/100m)

Max. Operating Voltage - UL

Voltage

300 V RMS

Maximum DCR Unbalanced

DCR Unbalance@20C (%)

Electrical Characteristics-Premise (Overall)
Premise Cable Electrical Table 1:

Freq. (MHz)	Max.Attenuation(dB/100m)	Min.NEXT(dB)	Min.PSNET(dB)	Min.ACR(dB)	Min.PSACR(dB)	Min RL(dB)
1	2.0	65.3	65.3	63.3	63.3	20.0
4	4.0	56.3	56.3	52.3	52.3	23.0
8	5.7	51.8	51.8	46.1	46.1	24.5
10	6.4	50.3	50.3	43.9	43.9	25.0
16	8.1	47.3	47.3	39.1	39.1	25.0
20	9.2	45.8	45.8	35.2	35.2	25.0
25	10.3	44.3	44.3	34.1	34.1	24.3
31.25	11.6	42.9	42.9	31.3	31.3	23.6
62.5	16.8	38.4	38.4	21.6	21.6	21.5
100	21.7	35.3	35.3	17.1	17.1	20.1
155	27.7	32.5	32.5	4.7	4.7	19.0
200	32.0	30.8	30.8	3.0	3.0	19.0
250	36.4	29.3	29.3	＞0	＞0	18.0
300	40.5	28.2	28.2			18.0
310	41.3	27.9	27.9			18.0
350	44.3	27.2	27.2			17.0

Premise Cable Electrical Table 2:

Freq.(MHz)	Input(Unfitted)Imp.(Ohms)	Fitted Impedance	Min.ELFEXT(dB)	Min.PSELFEXT(dB)
1	100±12	105±10	63.8	60.8
4	100±12	100±10	51.7	48.8
8	100±12	100±10	45.7	42.7
10	100±12	100±10	43.8	40.8
16	100±12	100±10	39.7	36.7
20	100±12	100±10	37.7	34.7
25	100±15	100±10	35.8	32.8
31.25	100±15	100±10	33.9	30.9
62.5	100±15	100±10	27.8	24.9
100	100±15	100±10	23.8	20.8
155	100±18	100±10	19.9	16.9
200	100±18	100±10	17.7	14.7
250	100±20	100±10	15.8	12.8
300	100±20	100±10	14.2	11.2
310	100±20	100±10	13.9	10.9
350	100±22	100±10	12.9	9.9

Notes (Overall)

Belden IBDN. Jacket sequentially marked at Notes: 2 ft. intervals. Third party verified to ANSI/TIA-568-C.2, Category 5e.
Put Ups and Colors:

ITEM #	Putup	Ship Weight	Color	Notes	Item Desc
1701LC 006U1000	1000FT	23.000LB	BLUE, LIGHT		CAT5E+4PRB U/UTP LC BOX
1701LC 0061000	1000FT	24.000LB	BLUE, LIGHT	C	CAT5E+4PRB U/UTP LC REEL
1701LC 009U1000	1000FT	23.000LB	WHITE		CAT5E+4PRB U/UTP LC BOX
1701LC 0091000	1000FT	24.000LB	WHITE	C	CAT5E+4PRB U/UTP LC REEL
