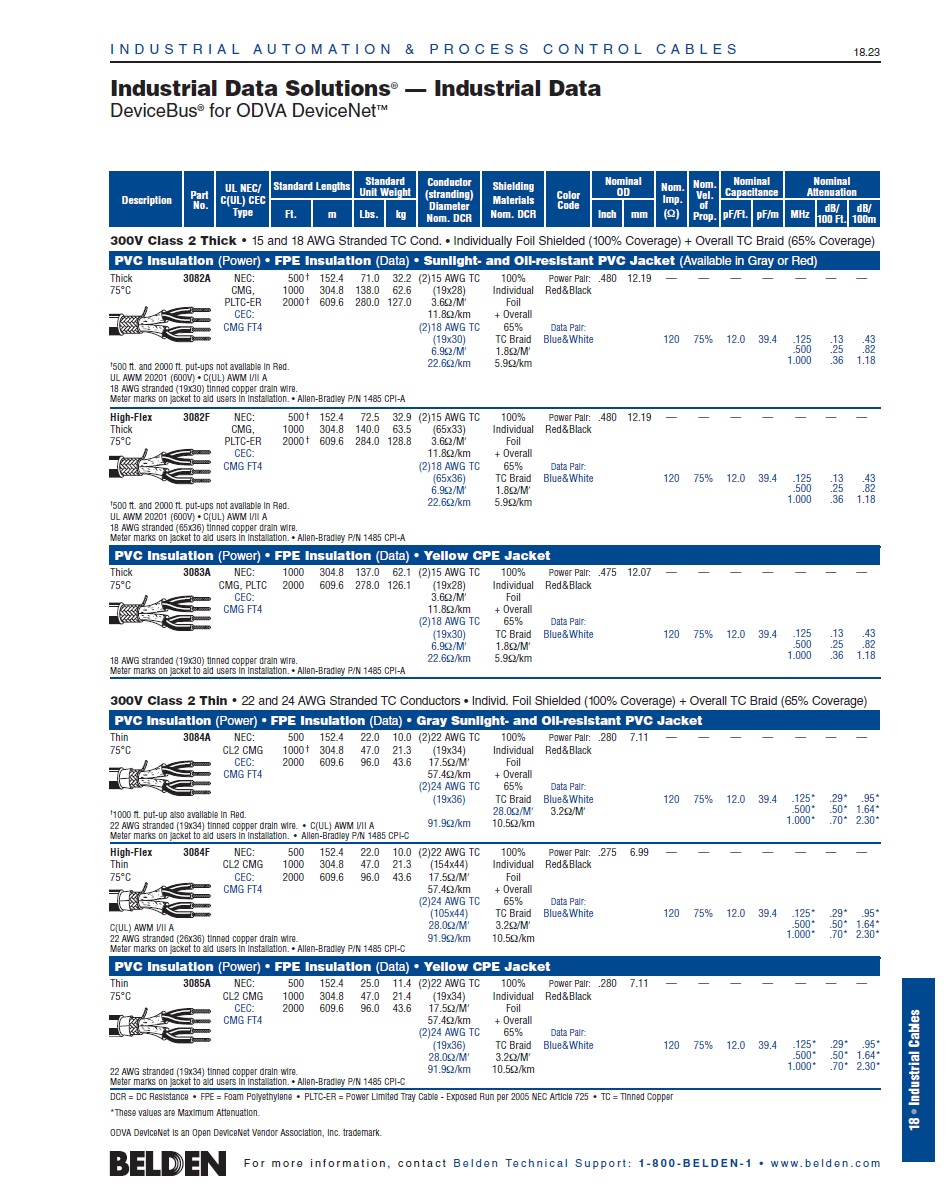

Belden 3082A DeviceBus® for ODVA DeviceNet™ 300V Class 2 Thick • 15 and 18 AWG Stranded Tinned Copper 工業電腦DeviceNet 數據傳輸電纜

468213

商品編號: Belden-3082A 工業電腦DeviceNet 數據傳輸電纜

Belden3082A DeviceBus® for ODVA DeviceNet™ 300V Class 2 Thick • 15 and 18 AWG Stranded Tinned Copper工業電腦DeviceNet 數據傳輸電纜

DESCRIPTION:
15 and 18 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (data), individually foil shielded (100% coverage) plus an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

PHYSICAL CHARACTERISTICS :

CONDUCTOR :
Number of Pairs: 2
Total Number of Conductors: 4
AWG:

Number of Pairs AWG Stranding Conductor Material Conductor Diameter (in.)
1 15 19x28 TC - Tinned Copper
1 18 19x30 TC - Tinned Copper

Stranding: 19x28, 19x30
Conductor Material: TC - Tinned Copper

INSULATION :
Insulation Material: PVC - Polyvinyl Chloride, FPE - Foam Polyethylene
Insulation Material (Multi-AWG):

AWG Layer Number Material Trade Name Material Wall Thickness (in.) Diameter (in.)
15 PVC - Polyvinyl Chloride
18 FPE - Foam Polyethylene

Pair Color Code Chart:

Number Color
1 (15 AWG) Red & Black
2 (18 AWG) Blue & White

INNER SHIELD :
Inner Shield Type: Tape/Tape
Inner Shield Material:

Layer Number/Description Material Trade Name Type Material % Coverage (%) Stranding Diameter (in.) Conductor Material
15 AWG Pair Tape Aluminum Foil-Polyester Tape 100
18 AWG Pair Tape Aluminum Foil-Polyester Tape 100

Inner Shield % Coverage: 100 %

OUTER SHIELD :
Outer Shield Type: Braid
Outer Shield Material: TC - Tinned Copper
Outer Shield %Coverage: 65 %

OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG: 18
Outer Shield Drain Wire Stranding: 19x30
Outer Shield Drain Wire Conductor Material: TC - Tinned Copper

OUTER JACKET :

Outer Jacket Material: PVC - Polyvinyl Chloride
Outer Jacket Nominal Wall Thickness: .060 in.

OVERALL NOMINAL DIAMETER :
Overall Nominal Diameter: .480 in.
MECHANICAL CHARACTERISTICS :

Operating Temperature Range: -20°C To +75°C
UL Temperature Rating: 75°C (UL AWM Style 20201)
Bulk Cable Weight: 108 lbs/1000 ft.
Max. Recommended Pulling Tension: 190 lbs.
Min. Bend Radius (Install): 4.6 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :

APPLICABLE STANDARDS :
NEC/(UL) Specification: CMG, PLTC-ER
CEC/C(UL) Specification: CMG
AWM Specification: UL Style 20201 (600 V 75°C)
CSA Specification: I/II A
EU CE Mark (Y/N): Yes
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 04/01/2005
Other Specification: ODVA Class 2 Thick

FLAME TEST :
UL Flame Test: UL1685 FT4 Loading
CSA Flame Test: FT4

SUITABILITY :
Sunlight Resistance: Yes
Oil Resistance: Yes

PLENUM/NON-PLENUM :
Plenum (Y/N): N
ELECTRICAL CHARACTERISTICS :

Unaveraged Impedance:

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Unaveraged Impedance (Ω)
18 AWG Pair Only 120

Nom. Inductance:

Description Nom. Inductance (µH/ft)
15 AWG Pair Only .174

Nom. Capacitance Conductor to Conductor:

Description Frequency (kHz) Start Frequency (kHz) Stop Frequency (kHz) Nom. Capacitance Conductor to Conductor (pF/ft)
18 AWG Pair Only 1 12.0

Nominal Velocity of Propagation:

Description Nominal Velocity of Propagation (%)
18 AWG Pair Only 75

Maximum Delay:

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Maximum Delay (ns/ft)
18 AWG Pair Only 1.36

Nom. Conductor DC Resistance @ 20 Deg. C:

Description Nom. Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
15 AWG 3.6
18 AWG 6.9

Nominal Outer Shield DC Resistance @ 20 Deg. C: 1.8 Ω/1000 ft
Max. Attenuation (dB/100 ft.):

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Max. Attenuation (dB/100 ft.)
18 AWG Pair Only .125 .13
.500 .25
1.00 .40

Max. Operating Voltage - UL:

UL Voltage Description
300 V RMS C(UL) AWM

Max. Recommended Current:

Description Max. Recommended Current
15 AWG 8.0 Amps
18 AWG 5.0 Amps

NOTES :

Notes: Thick. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Associatio, Inc. Trademark.
PUT-UPS AND COLORS:

Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
3082A 0021000 2 #15, 2 #18 SHLD FRPVC 1000 138 RED C
3082A T5U1000 2 #15, 2 #18 SHLD PVC 1000 138 GRAY T5U C
3082A T5U2000 2 #15, 2 #18 SHLD PVC 2000 280 GRAY T5U C
3082A T5U500 2 #15, 2 #18 SH PVC 500 71 GRAY T5U C
