商品編號: Belden-3083A 工業電腦DeviceNet 數據傳輸電纜線

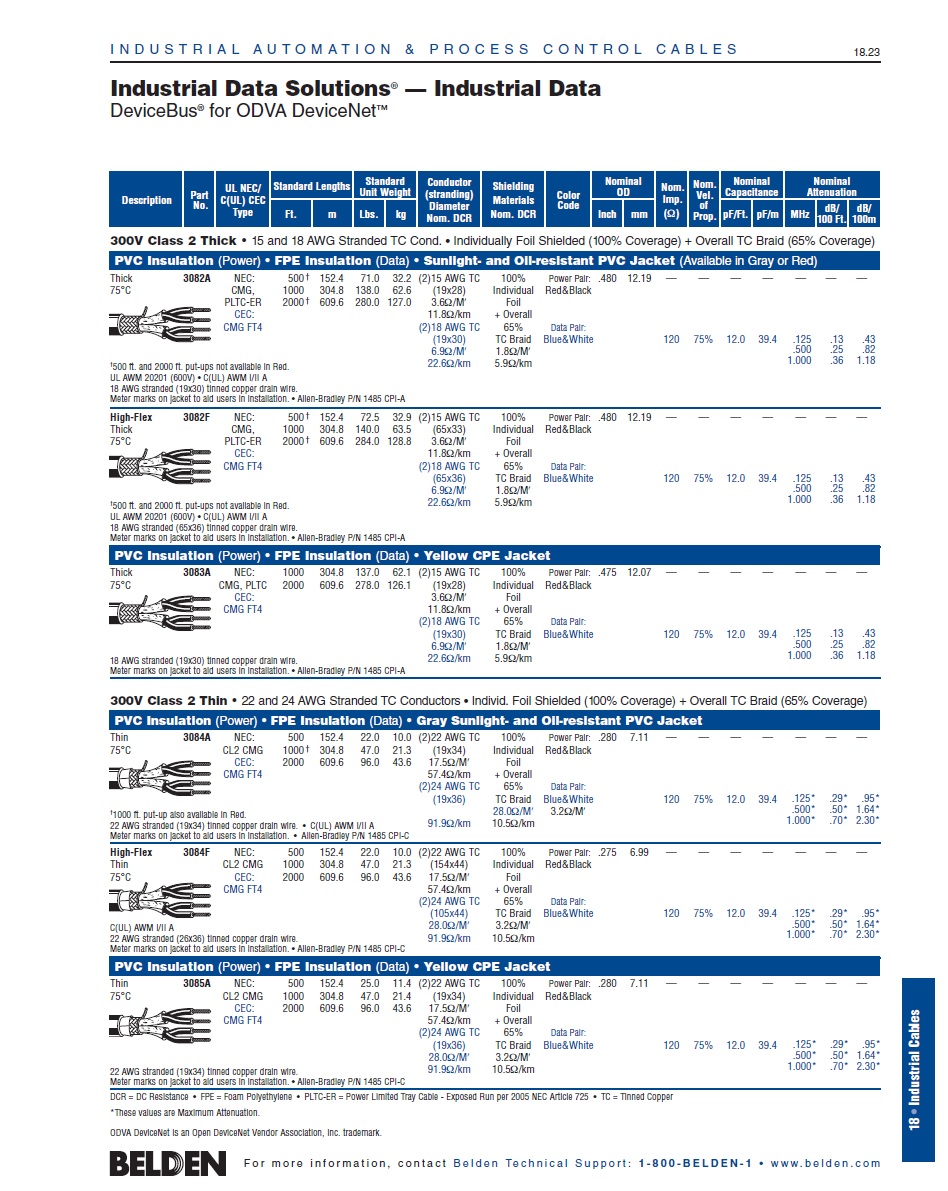

Belden3083A DeviceNet™300V Class 2 Thick • 15 and 18 AWG Stranded Tinned Copper PVC Insulation (Power) • FPE Insulation (Data) • Yellow CPE Jacket 工業電腦DeviceNet 數據傳輸電纜線
15 and 18 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (data), individually foil shielded (100% coverage) plus an overall tinned copper braid (65% coverage), CPE jacket.
PHYSICAL CHARACTERISTICS :
CONDUCTOR :
Number of Pairs: 2
Total Number of Conductors: 4
AWG:
Number of Pairs AWG Stranding Conductor Material Conductor Diameter (in.)
1 15 19x28 TC - Tinned Copper
1 18 19x30 TC - Tinned Copper
Stranding: 19x28, 19x30
Conductor Material: TC - Tinned Copper
INSULATION :
Insulation Material: PVC - Polyvinyl Chloride, FPE - Foam Polyethylene
Insulation Material (Multi-AWG):
AWG Layer Number Material Trade Name Material Wall Thickness (in.) Diameter (in.)
15 PVC - Polyvinyl Chloride
18 FPE - Foam Polyethylene
Pair Color Code Chart:
Number Color
1 (15 AWG) Red & Black
2 (18 AWG) Blue & White
INNER SHIELD :
Inner Shield Type: Tape/Tape
Inner Shield Material:
Layer Number/Description Material Trade Name Type Material % Coverage (%) Stranding Diameter (in.) Conductor Material
15 AWG Pair Tape Aluminum Foil-Polyester Tape 100
18 AWG Pair Tape Aluminum Foil-Polyester Tape 100
Inner Shield % Coverage: 100 %
OUTER SHIELD :
Outer Shield Type: Braid
Outer Shield Material: TC - Tinned Copper
Outer Shield %Coverage: 65 %
OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG: 18
Outer Shield Drain Wire Stranding: 19x30
Outer Shield Drain Wire Conductor Material: TC - Tinned Copper
OUTER JACKET :
Outer Jacket Material: CPE - Chlorinated Polyethylene
OVERALL NOMINAL DIAMETER :
Overall Nominal Diameter: .475 in.
MECHANICAL CHARACTERISTICS :
Operating Temperature Range: -30°C To +75°C
Non-UL Temperature Rating: 75°C
Bulk Cable Weight: 119 lbs/1000 ft.
Max. Recommended Pulling Tension: 190 lbs.
Min. Bend Radius (Install): 4.8 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :
APPLICABLE STANDARDS :
NEC/(UL) Specification: CMG, PLTC
CEC/C(UL) Specification: CMG
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 10/13/2005
Other Specification: ODVA Class 2 Thick
FLAME TEST :
UL Flame Test: UL1685 FT4 Loading
CSA Flame Test: FT4
SUITABILITY :
Sunlight Resistance: Yes
ELECTRICAL CHARACTERISTICS :
Unaveraged Impedance:
Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Unaveraged Impedance (Ω)
18 AWG Pair Only 120
Nom. Capacitance Conductor to Conductor:
Description Frequency (kHz) Start Frequency (kHz) Stop Frequency (kHz) Nom. Capacitance Conductor to Conductor (pF/ft)
18 AWG Pair Only 1 12.0
Nominal Velocity of Propagation:
Description Nominal Velocity of Propagation (%)
18 AWG Pair Only 75
Maximum Delay:
Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Maximum Delay (ns/ft)
18 AWG Pair Only 1.36
Nom. Conductor DC Resistance @ 20 Deg. C:
Description Nom. Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
15 AWG 3.6
18 AWG 6.9
Nominal Outer Shield DC Resistance @ 20 Deg. C: 1.8 Ω/1000 ft
Max. Attenuation (dB/100 ft.):
Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Max. Attenuation (dB/100 ft.)
18 AWG Pair Only .125 .13
.500 .26
1.00 .40
Max. Operating Voltage - UL: 300 V RMS (PLTC, CMG)
Max. Recommended Current:
Description Max. Recommended Current
15 AWG 8.0 Amps
18 AWG 5.0 Amps
NOTES :
Notes: Thick. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark.
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
3083A 5601000 2 #15, 2 #18 SH CPE 1000 137 YELLOW, BRIGHT C
3083A 5602000 2 #15, 2 #18 SH CPE 2000 278 YELLOW, BRIGHT C
