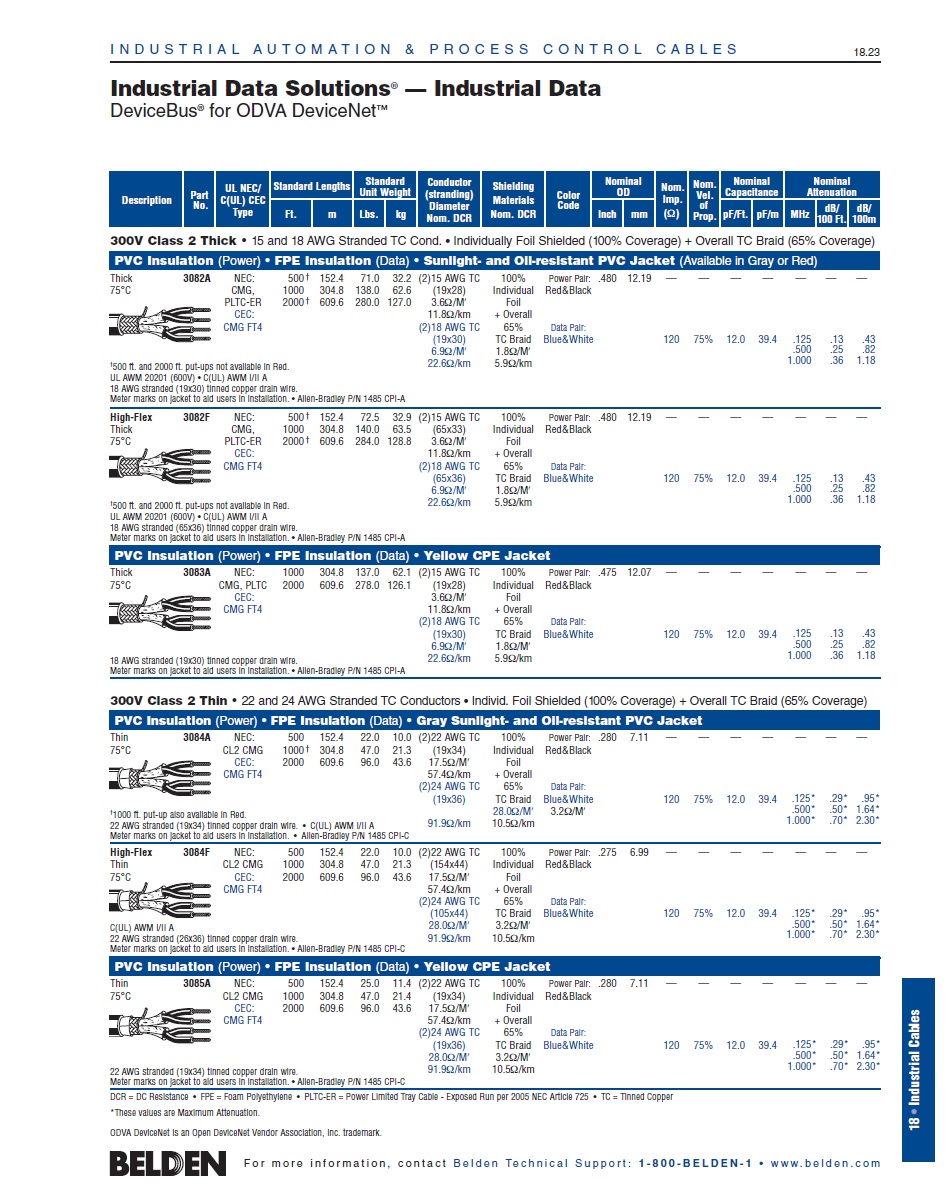

Belden 3085A DeviceNet™ 300V Class 2 Thin • 22 and 24 AWG Stranded Tinned Copper PVC Insulation (Power) • FPE Insulation (Data) • Yellow CPE Jacket 工業電腦DeviceNet 儀表控制數據傳輸電纜線

468235

商品編號: Belden-3085A

Belden3085A DeviceNet™ 300V Class 2 Thin • 22 and 24 AWG Stranded Tinned Copper PVC Insulation (Power) • FPE Insulation (Data) • Yellow CPE Jacket 工業電腦DeviceNet 儀表控制數據傳輸電纜線

DESCRIPTION:
22 and 24 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (Data), individually foil shielded (100% coverage) and an overall tinned copper braid (65% coverage), CPE jacket.

PHYSICAL CHARACTERISTICS :

CONDUCTOR :
Number of Pairs: 2
Number of Conductors: 4
AWG:

Number of Pairs AWG Stranding Conductor Material Conductor Diameter (in.)
1 22 19x34 TC - Tinned Copper
1 24 19x36 TC - Tinned Copper

Stranding: 19x34, 19x36
Conductor Material: TC - Tinned Copper

INSULATION :
Insulation Material: PVC - Polyvinyl Chloride, FPE - Foam Polyethylene
Insulation Material (Multi-AWG):

AWG Layer Number Material Trade Name Material Wall Thickness (in.) Diameter (in.)
22 PVC - Polyvinyl Chloride
24 FPE - Foam Polyethylene

Pair Color Code Chart:

Number Color
22 AWG Pair Red & Black
24 AWG Pair Blue & White

INNER SHIELD :
Inner Shield Type: Tape/Tape
Inner Shield Material:

Layer Number/Description Material Trade Name Type Material % Coverage (%) Stranding Diameter (in.) Conductor Material
22 AWG Pair Tape Aluminum Foil-Polyester Tape 100
24 AWG Pair Tape Aluminum Foil-Polyester Tape 100

Inner Shield % Coverage: 100 %
Inner Shield Drain Wire AWG: 22
Inner Shield Drain Wire Stranding: 19x34
Inner Shield Drain Wire Conductor Material: TC - Tinned Copper

OUTER SHIELD :
Outer Shield Type: Braid
Outer Shield Material: TC - Tinned Copper
Outer Shield %Coverage: 65 %

OUTER JACKET :
Outer Jacket Material: CPE - Chlorinated Polyethylene

OVERALL NOMINAL DIAMETER :
Overall Nominal Diameter: .280 in.
MECHANICAL CHARACTERISTICS :

Operating Temperature Range: -30°C To +75°C
UL Temperature Rating: 75°C
Bulk Cable Weight: 46 lbs/1000 ft.
Max. Recommended Pulling Tension: 65 lbs.
Min. Bend Radius (Install): 2.75 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :

APPLICABLE STANDARDS :
NEC/(UL) Specification: CMG, CL2
CEC/C(UL) Specification: CMG
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 10/13/2005
Other Specification: ODVA Class 2 Thin

FLAME TEST :
UL Flame Test: UL1685 FT4 Loading
CSA Flame Test: FT4

PLENUM/NON-PLENUM :
Plenum (Y/N): N
ELECTRICAL CHARACTERISTICS :

Nom. Characteristic Impedance:

Description Nom. Characteristic Impedance (Ω)
24 AWG Pair 120

Nom. Capacitance Conductor to Conductor @ 1 KHz: 12.0 pF/ft
Nom. Capacitance Conductor to Conductor:

Description Frequency (kHz) Start Frequency (kHz) Stop Frequency (kHz) Nom. Capacitance Conductor to Conductor (pF/ft)
24 AWG Pair 1 12.0

Nominal Velocity of Propagation:

Description Nominal Velocity of Propagation (%)
24 AWG Pair 75

Maximum Delay:

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Maximum Delay (ns/ft)
24 AWG Pair 1.36

Maximum Conductor DC Resistance:

Description Maximum Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
22 AWG 17.5
24 AWG 28.0

Nominal Outer Shield DC Resistance @ 20 Deg. C: 3.2 Ω/1000 ft
Max. Attenuation (dB/100 ft.):

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Max. Attenuation (dB/100 ft.)
24 AWG Pair Only .125 .29
.500 .50
1.000 .70

Max. Operating Voltage - UL: 300 V RMS
Max. Recommended Current: 1.7 Amps per conductor @ 25°C (24 AWG), 4 Amps per conductor @ 24 V per NEC CL2 (Power Pair)
NOTES :

Notes: Thin. Meter marks on jacket to aid users in installation. ODVA Devicenet is an Open DeviceNet Vendor Association, Inc. trademark.
PUT-UPS AND COLORS:

Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
3085A 5601000 2 #22, 2 #24 SHLD CPE 1000 47 YELLOW, BRIGHT C
3085A 5602000 2 #22, 2 #24 SHLD CPE 2000 96 YELLOW, BRIGHT C
3085A 560500 2 #22, 2 #24 SHLD CPE 500 22 YELLOW, BRIGHT C
