Multi-Conductor - DeviceBus® for ODVA DeviceNet™
15 and 18 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (data), individually foil shielded (100% coverage) plus an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

3082F

Multi-Conductor - DeviceBus® for ODVA DeviceNet™ 15 and 18 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (data), individually foil shielded (100% coverage) plus an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 3082F T5U1000 1,000 FT 138.000 LB GRAY T5U C 2 #15, 2 #18 SH PVC 3082F T5U2000 2,000 FT 284.000 LB GRAY T5U C 2 #15, 2 #18 SH PVC 3082F T5U500 500 FT 72.500 LB GRAY T5U C 2 #15, 2 #18 SH PVC 3082F 0021000 1,000 FT 138.000 LB RED C 2 #15, 2 #18 SHLD FRPVC

Notes:
C = CRATE REEL PUT-UP.

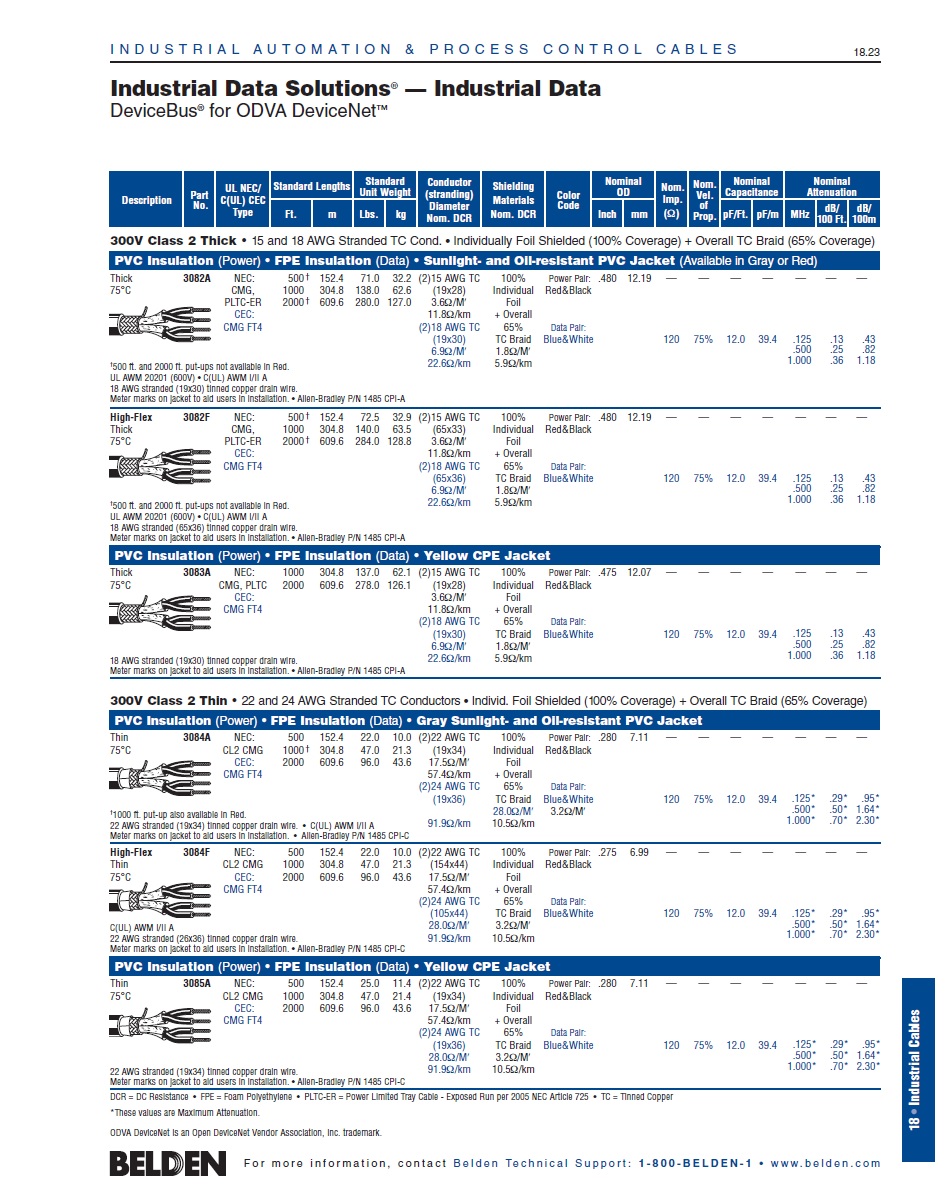

Physical Characteristics (Overall)

Conductor

AWG:

# Pairs AWG Stranding Conductor Material 1 15 65x33 TC - Tinned Copper 1 18 65x36 TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material AWG PVC - Polyvinyl Chloride 15 FPE - Foam Polyethylene 18

Inner Shield

Inner Shield Material:

Layer # Type Inner Shield Material Coverage (%) 15 AWG Pair Tape Aluminum Foil-Polyester Tape 100 18 AWG Pair Tape Aluminum Foil-Polyester Tape 100

Outer Shield

Outer Shield Material:

Type Outer Shield Material Coverage (%) Braid TC - Tinned Copper 65

Outer Shield Drain Wire AWG:

AWG Stranding Drain Wire Conductor Material 18 65x36 TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .060

Overall Cabling

Overall Nominal Diameter:

0.480 in.

Pair

Pair Color Code Chart:

Number Color 1 (15 AWG) Red & Black 2 (18 AWG) Blue & White

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +75°C

UL Temperature Rating:

75°C (UL AWM Style 20201)

Bulk Cable Weight:

108 lbs/1000 ft.

Max. Recommended Pulling Tension:

205 lbs.

Min. Bend Radius (Install)/Minor Axis:

4.600 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMG, PLTC-ER

CEC/C(UL) Specification:

CMG

AWM Specification:

UL Style 20201 (600 V 75°C)

CSA Specification:

III A

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

ODVA Class 2 Thick

Flame Test

UL Flame Test:

UL1685 FT4 Loading

CSA Flame Test:

FT4

Suitability

Sunlight Resistance:

Yes

Oil Resistance:

Yes

Surface Printing (Overall)

Electrical Characteristics (Overall)

Unaveraged Impedance:

Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Impedance (Ohm) 18 AWG Pair Only 　 　 　 120

Nom. Inductance:

Description Inductance (µH/ft) 15 AWG Pair Only .174

Nom. Capacitance Conductor to Conductor:

Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Capacitance (pF/ft) 18 AWG Pair Only 1 　 　 12.0

Nominal Velocity of Propagation:

Description VP (%) 18 AWG Pair Only 75

Maximum Delay:

Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Delay (ns/ft) 18 AWG Pair Only 　 　 　 1.36

Nom. Conductor DC Resistance:

Description DCR @ 20°C (Ohm/1000 ft) 15 AWG 3.6 18 AWG 6.9

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 1.8

Max. Attenuation:

() Description Freq. (MHz) .13 18 AWG Pair Only .125 .26   .500 .40   1.00

Max. Operating Voltage - UL:

Voltage Description 300 V RMS C(UL) AWM

Max. Recommended Current:

Description Current 15 AWG 8.0 Amps 18 AWG 5.0 Amps

Notes (Overall)

Notes:

High-Flex. Thick. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark. Jacket printed "1PR16" instead of "1PR15" due to UL requirements for CMG Listing.
