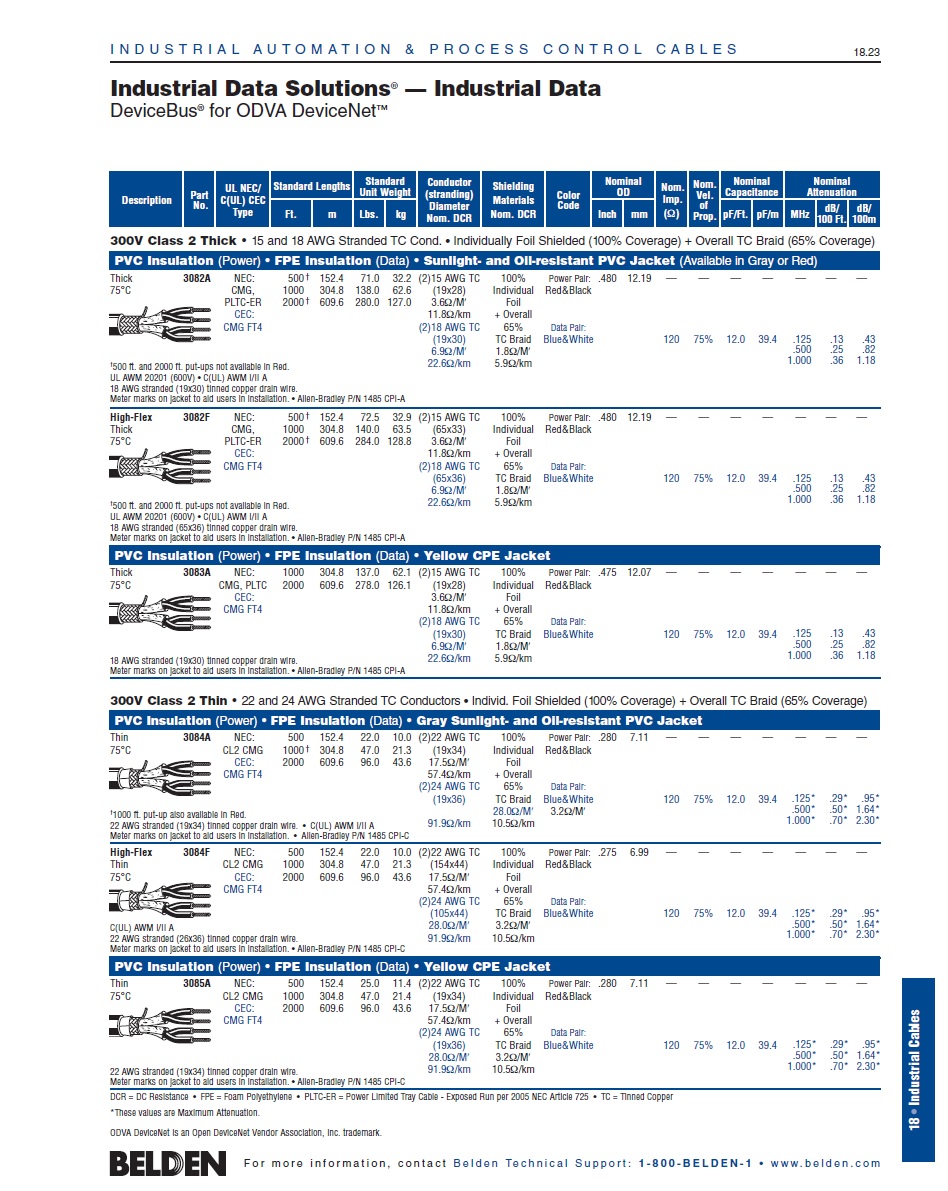

    Belden 3084F High-Flex (Thin) 超柔軟移動式Multi-Conductor - DeviceBus® for ODVA DeviceNet™
    看原圖
    5338041

    商品編號: Belden-3084F

    Belden-3084F High-Flex (Thin) 超柔軟移動式Multi-Conductor - DeviceBus® for ODVA DeviceNet™


    Multi-Conductor - DeviceBus® for ODVA DeviceNet™
    22 and 24 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (Data), individually foil shielded (100% coverage) and an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

    3084F    Multi-Conductor - DeviceBus® for ODVA DeviceNet™
    22 and 24 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (Data), individually foil shielded (100% coverage) and an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    3084F T5U1000 1,000 FT 45.000 LB GRAY T5U C 2 #22, 2 #24 SH PVC
    3084F T5U2000 2,000 FT 90.000 LB GRAY T5U C 2 #22, 2 #24 SH PVC
    3084F T5U500 500 FT 20.500 LB GRAY T5U C N 2 #22, 2 #24 SH PVC
    3084F 0021000 1,000 FT 45.000 LB RED C 2 #22, 2 #24 SH PVC
    Notes:
    C = CRATE REEL PUT-UP.
    N = FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors # Pairs AWG Stranding Conductor Material
    4 1 22 19x34 TC - Tinned Copper
      1 24 105x44 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material AWG
    PVC - Polyvinyl Chloride 22
    FPE - Foam Polyethylene 24
    Inner Shield
    Inner Shield Material:
    Layer # Inner Shield Trade Name Type Inner Shield Material Coverage (%)
    22 AWG Pair Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    24 AWG Pair Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    Inner Shield Drain Wire AWG:
    AWG
    22
    Inner Shield Drain Wire Stranding: 26x36
    Inner Shield Drain Wire Conductor Material: TC - Tinned Copper
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid TC - Tinned Copper 65
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.275 in.
    Pair
    Pair Color Code Chart:
    Number Color
    22 AWG Pair Red & Black
    24 AWG Pair Blue & White
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +75°C
    UL Temperature Rating: 75°C
    Bulk Cable Weight: 41 lbs/1000 ft.
    Max. Recommended Pulling Tension: 65 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.750 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    CEC/C(UL) Specification: CMG
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Other Specification: ODVA Class 2 Thin
    Flame Test
    UL Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4
    Suitability
    Sunlight Resistance: Yes
    Oil Resistance: Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Description Impedance (Ohm)
    24 AWG Pair 120
    Nom. Capacitance Conductor to Conductor:
    Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Capacitance (pF/ft)
    24 AWG Pair 1     12.0
    Nominal Velocity of Propagation:
    Description VP (%)
    24 AWG Pair 75
    Maximum Delay:
    Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Delay (ns/ft)
    24 AWG Pair       1.36
    Maximum Conductor DC Resistance:
    Description DCR @ 20°C (Ohm/100 m)
    22 AWG 17.5
    24 AWG 28.0
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    3.2
    Max. Attenuation:
    () Description Freq. (MHz)
    .29 24 AWG Pair Only .125
    .50   .500
    .70   1.000
    Max. Operating Voltage - UL:
    Voltage Description
    300 V RMS CL2, CMG
    300 V RMS C(UL) AWM
    Max. Recommended Current:
    Current
    1.7 Amps per conductor @ 25°C (24 AWG)
    4 Amps per conductor @ 24 V per NEC CL2 (Power Pair)
    Notes (Overall)
    Notes: Hi-Flex. Thin. Flex Test Results: "S-Bend" Flex Test - 4" Diameter Wheels, 2 lbs. tension: 150, 000 Cycles Averaged. +/-90 Degree Flex Test: 2" Diameter, 2 lbs. tension - 8500 Cycles Averaged. Flex tests were conducted at less than the recommeded cable minimum bend radius. Actual cable performance will depend on the individual application. Meter marks on jacket to aid users in installation.
