    首頁 > Belden-MIL-PVC電子線

    Belden8504  Hook-up/Lead Awg 24(7x32) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線

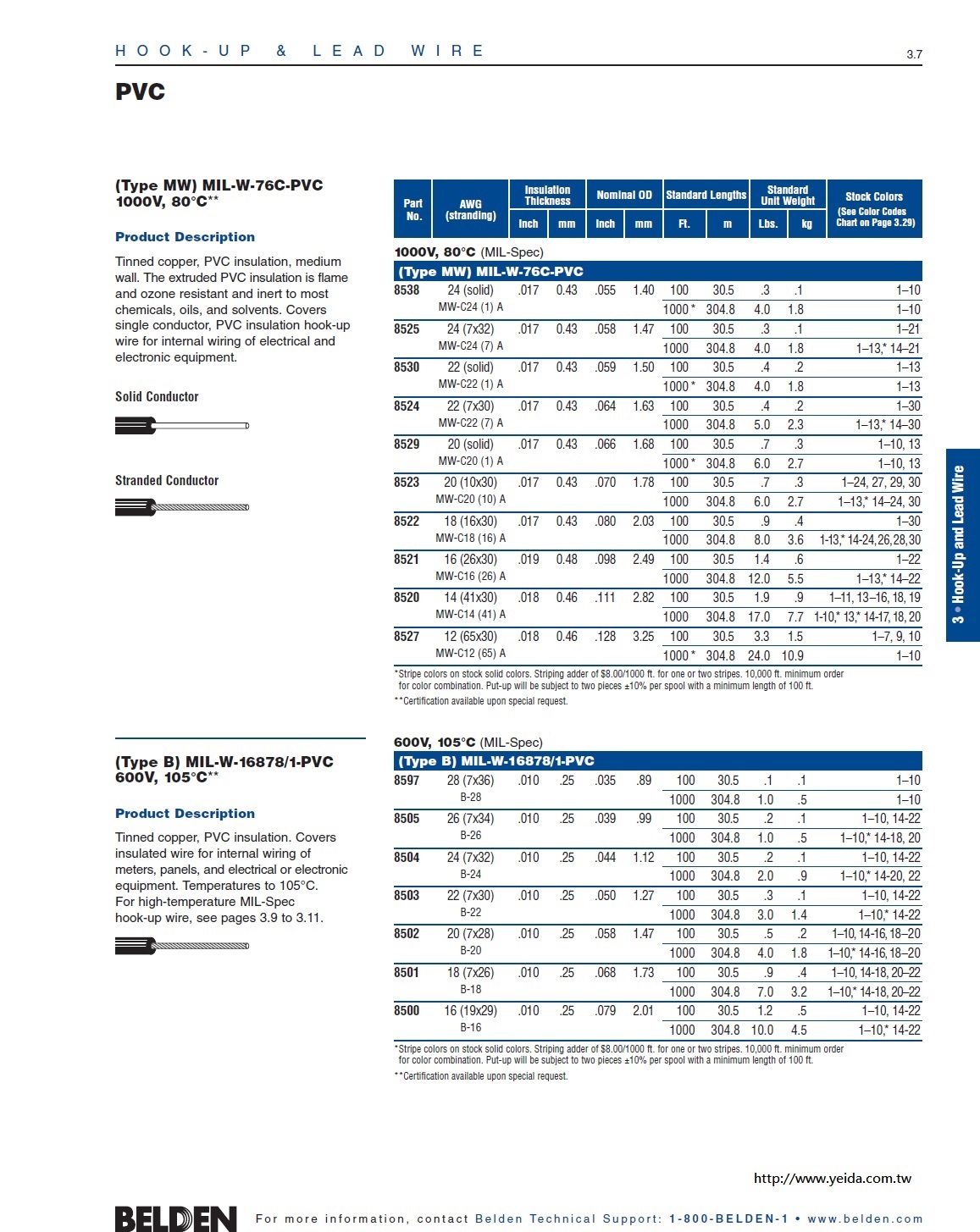

    看原圖
    452050

    商品編號: Belden8504

    Belden-8504 Hook-up/Lead Awg 24(7x32) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線


    8504    Hook-up/Lead - (Type B) MIL-W-16878/1-PVC
    Tinned copper conductor, PVC insulation. Covers insulated wire for internal wiring of meters, panels, and electrical or electronic equipment. Temperatures to 105ºC.
    For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Element SYSTEMAVAILABLE is undefined in a Java object of type class java.util.HashMap referenced as
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 24 7x32 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .010
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.044 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2006
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/1
    MIL Spec Rating: 600 V, 105°C
    Plenum/Non-Plenum
    Plenum (Y/N): No
