    首頁 > > Belden- Category 6A – Up to 860 MHz

    Belden-10GX13 Enhanced Category 6A Nonbonded-Pair Cable 23 AWG solid , FEP insulation, patented H-spline center member, ripcord, Flamarrest® jacket. CAT-6A UTP CMP 鐵氟龍/阻燃外被網路線
    看原圖
    		5167371

    商品編號: Belden-10GX13

    Belden-10GX13 Enhanced Category 6A Nonbonded-Pair Cable 23 AWG solid , FEP insulation, patented H-spline center member, ripcord, Flamarrest® jacket. CAT-6A UTP CMP 鐵氟龍/阻燃外被網路線

    10GX13

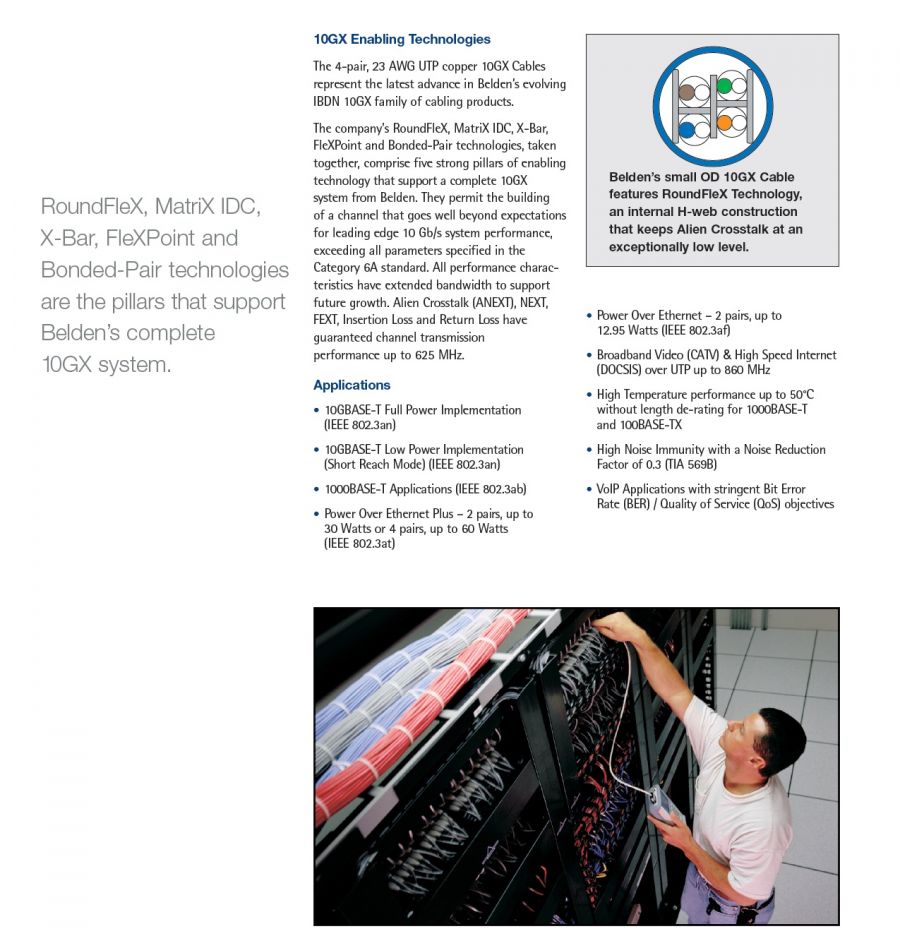

    		    Multi-Conductor - Enhanced Category 6A Nonbonded-Pair Cable
    23 AWG solid bare copper conductors, FEP insulation, patented H-spline center member, ripcord, Flamarrest® jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    10GX13 D151000 1,000 FT 43.000 LB BLUE 　 4PR23 CMP (24817995H)
    10GX13 D152500 2,500 FT 115.000 LB BLUE 　 4PR23 CMP (24817963H)
    10GX13 0041000 1,000 FT 43.000 LB YELLOW 　 4PR23 CMP (24817795H)
    10GX13 0042500 2,500 FT 115.000 LB YELLOW 　 4PR23 CMP (24817763H)
    10GX13 0045000 5,000 FT 215.000 LB YELLOW 　 4PR23 CMP (24817777H)
    10GX13 0051000 1,000 FT 43.000 LB GREEN, DARK 　 4PR23 CMP (24812895H)
    10GX13 0071000 1,000 FT 43.000 LB VIOLET 　 4PR23 CMP (24812P95H)
    10GX13 0081000 1,000 FT 43.000 LB GRAY 　 4PR23 CMP (24812195H)
    10GX13 0091000 1,000 FT 43.000 LB WHITE 　 4PR23 CMP (24817395H)
    10GX13 0101000 1,000 FT 43.000 LB BLACK 　 4PR23 CMP (24812495H)
    10GX13 0101500 1,500 FT 64.500 BLACK 　 4PR23 CMP (24812454H)
    Usage (Overall)
    Suitable Applications: Premise Horizontal Cable, 10 Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    4 23 Solid BC - Bare Copper
    Insulation
    Insulation Material:
    Insulation Material
    FEP - Fluorinated Ethylene Propylene
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material
    Flamarrest® PVC - Polyvinyl Chloride
    Outer Jacket Ripcord: Yes
    Overall Cabling
    Overall Cabling Fillers: RoundFleX - Double H cross-web
    Overall Nominal Diameter: 0.295 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 White/Blue Stripe & Blue
    2 White/Orange Stripe & Orange
    3 White/Green Stripe & Green
    4 White/Brown Stripe & Brown
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +60°C
    Bulk Cable Weight: 38 lbs/1000 ft.
    Max. Recommended Pulling Tension: 40.800 lbs.
    Min. Bend Radius (Install)/Minor Axis: 1.250 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    Other Standards: Exceeds 11801:2002 Category 6
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Telecommunications Standards: Category 6A - TIA 568.B.2-10
    Flame Test
    UL Flame Test: UL910 Steiner Tunnel
    CSA Flame Test: FT6
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 10GX12
    Electrical Characteristics (Overall)
    Nom. Mutual Capacitance:
    Capacitance (pF/ft)
    17.000
    Maximum Capacitance Unbalance (pF/100 m): 330
    Nominal Velocity of Propagation:
    VP (%)
    68.000
    Maximum Delay:
    Delay (ns/100 m)
    537 @ 100MHz
    Max. Delay Skew:
    Delay Skew (ns/100 m)
    45
    Maximum Conductor DC Resistance:
    DCR @ 20°C (Ohm/100 m)
    7.400
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Maximum DCR Unbalanced:
    DCR Unbalance @ 20°C (%)
    3.000
    Electrical Characteristics-Premise (Overall)
    Premise Cable Electrical Table 1:
    Freq. (MHz) Max. Attenuation (dB/100 m) Min. PSNEXT (dB) Min. PSACR (dB) Min RL (dB)
    1 2.100 73.3 71.2 20.000
    4 3.800 64.3 60.5 23.000
    8 5.300 59.8 54.4 24.500
    10 5.900 58.3 52.4 25.000
    16 7.500 55.2 47.8 25.000
    20 8.400 53.8 45.4 25.000
    25 9.400 52.3 43 24.300
    31.25 10.500 50.9 40.4 23.600
    62.5 15.000 46.4 31.4 21.500
    100 19.100 43.3 24.2 20.100
    155 24.100 40.4 1.4 18.800
    200 27.600 38.8 11.2 18.000
    250 31.100 37.3 6.3 17.300
    300 34.300 36.1 1.9 16.800
    350 37.200 35.1 　 16.300
    400 40.100 34.3 　 15.900
    450 42.700 35.5 　 15.500
    500 45.300 32.8 　 15.200
    550 47.700 32.2 　 14.900
    600 50.100 31.6 　 14.700
    625 51.200 31.4 　 14.500
    750 56.700 30.2 　 14.000
    860 61.200 29.3 　 13.600
    Notes (Overall)
    Notes: Jacket sequentially printed every 2 ft/1m. US Patents 5424491, 5734126 and others
