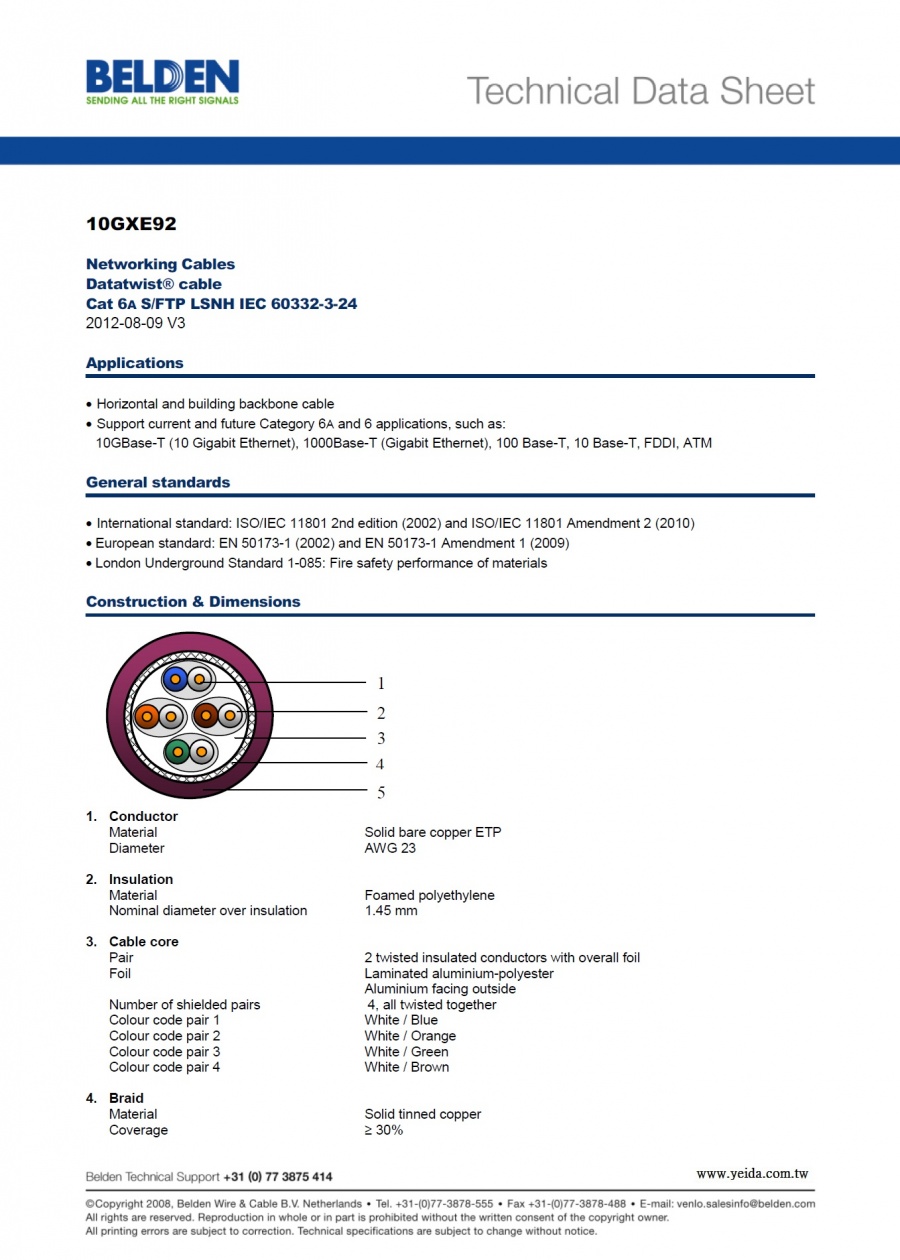

Applications
· Horizontal and building backbone cable
· Support current and future Category 6A and 6 applications, such as:
10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM
　

General standards
· International standard: ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010)
· European standard: EN 50173-1 (2002) and EN 50173-1 Amendment 1 (2009)
· London Underground Standard 1-085: Fire safety performance of materials
　

Construction & Dimensions
1. Conductor
Material Solid bare copper ETP
Diameter AWG 23
　

2. Insulation
Material Foamed polyethylene
Nominal diameter over insulation 1.45 mm
　

3. Cable core
Pair 2 twisted insulated conductors with overall foil
Foil Laminated aluminium-polyester
Aluminium facing outside
Number of shielded pairs 4, all twisted together
Colour code pair 1 White / Blue
Colour code pair 2 White / Orange
Colour code pair 3 White / Green
Colour code pair 4 White / Brown
　

4. Braid
Material Solid tinned copper
Coverage ≥ 30%
　

5. Jacket
Material LSNH
Diameter 8.0 ± 0.3 mm
Ripcord Nylon ripcord under jacket
