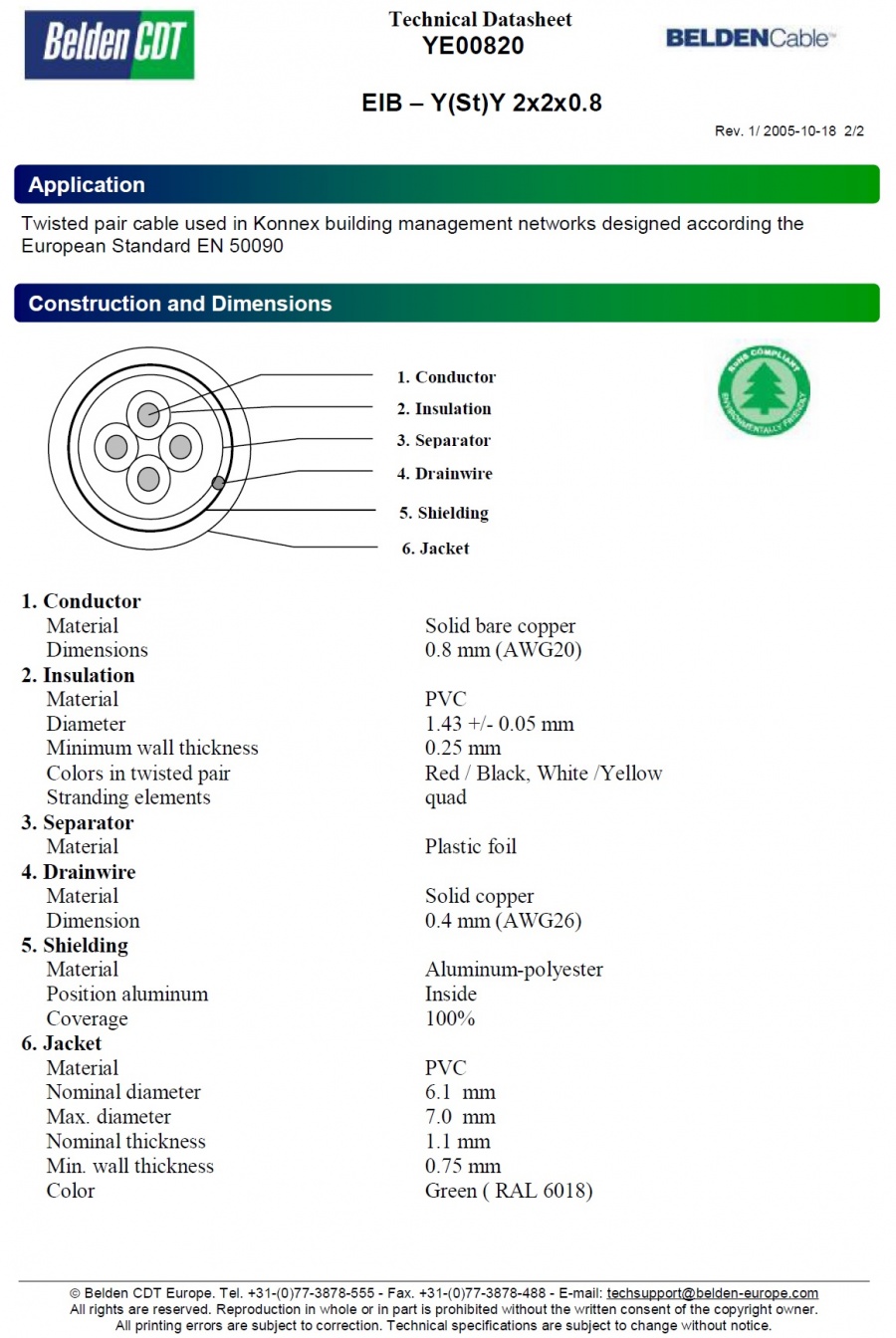

Technical Datasheet
YE00820
EIB – Y(St)Y 2x2x0.8

Application

Twisted pair cable used in Konnex building management networks designed according the
European Standard EN 50090

Construction and Dimensions

1. Conductor
Material Solid bare copper
Dimensions 0.8 mm (AWG20)
2. Insulation
Material PVC
Diameter 1.43 +/- 0.05 mm
Minimum wall thickness 0.25 mm
Colors in twisted pair Red / Black, White /Yellow
Stranding elements quad
3. Separator
Material Plastic foil
4. Drainwire
Material Solid copper
Dimension 0.4 mm (AWG26)
5. Shielding
Material Aluminum-polyester
Position aluminum Inside
Coverage 100%
6. Jacket
Material PVC
Nominal diameter 6.1 mm
Max. diameter 7.0 mm
Nominal thickness 1.1 mm
Min. wall thickness 0.75 mm
Color Green ( RAL 6018)

Requirements and test methods

Electrical:
Max. capacitance conductor to conductor   @ 800kHz 100 nF/km
Max.capacitance unbalance   @ 800kHz 300 pF/100m
Max.conductor DC loop resistance   @ 20°C 73.2 Ohm/km
Maximum operating voltage    300 V rms

Mechanical and physical:
Maximum pulling tension   50 N
Minimum bending radius   60 mm
Copper weight   19.2 kg/km
Total weight   52 kg/km
Temperature rating (Installation)   -10 to + 50 ˚C
(Storage and usage)   - 25 to + 70 ˚C
Flame resistance   IEC 60332-1
Applicable specification   EN 50090
Environmental    RoHS compliant

Ordering information

MARKING
Sheath
color
RAL Text
Green 6018 BELDEN cable (TM) YE00820 EIB 2x2x0.8 mm YYYYY MMMM REG nr 109/7253/05
