商品編號: Belden-580206

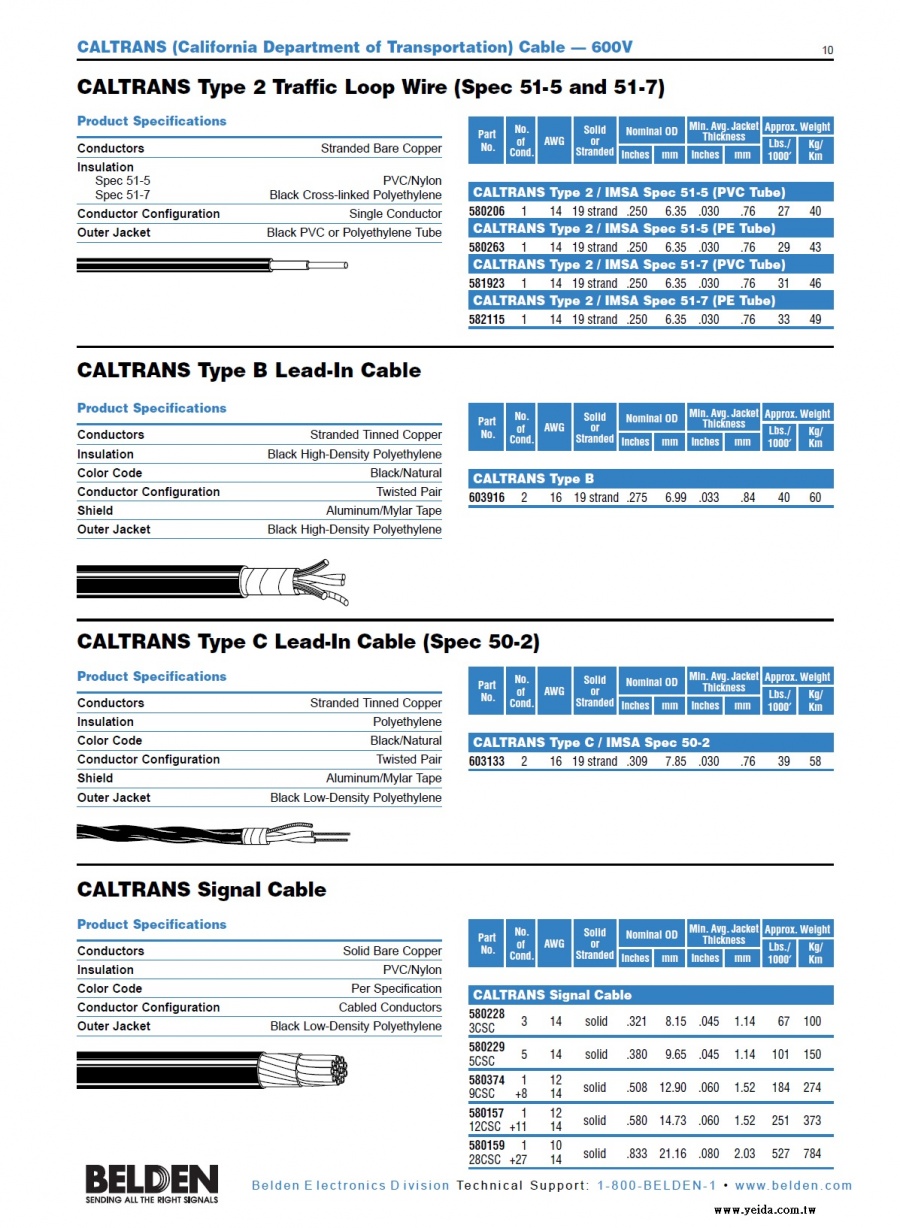

Belden-IMSA CALTRANS Type 2 Traffic Loop Wire (Spec 51-5 and 51-7) 加州國際城市信號協會（IMSA）認可交通號誌等城市公用電纜




CALTRANS (California Department of Transportation) Cable — 600V
CALTRANS Type 2 Traffic Loop Wire (Spec 51-5 and 51-7)

Product Specifications

Conductors :  Stranded Bare Copper

Insulation

Spec 51-5 :  PVC/Nylon

Spec 51-7 :  Black Cross-linked Polyethylene

Conductor Configuration :  Single Conductor

Outer Jacket :  Black PVC or Polyethylene Tube

CALTRANS (California Department of Transportation) Cable — 600V
CALTRANS Type B Lead-In Cable

Product Specifications

Conductors :  Stranded Tinned Copper

Insulation :  Black High-Density Polyethylene

Color Code :  Black/Natural

Conductor Configuration :  Twisted Pair

Shield :  Aluminum/Mylar Tape

Outer Jacket :  Black High-Density Polyethylene

CALTRANS (California Department of Transportation) Cable — 600V
　

CALTRANS Type C Lead-In Cable (Spec 50-2)

Product Specifications

Conductors :  Stranded Tinned Copper

Insulation :  Polyethylene

Color Code :  Black/Natural

Conductor Configuration :  Twisted Pair

Shield :  Aluminum/Mylar Tape

Outer Jacket :  Black Low-Density Polyethylene

CableCALTRANS Signal Cable

Product Specifications

Conductors :  Solid Bare Copper

Insulation :  PVC/Nylon

Color Code :  Per Specification

Conductor Configuration :  Cabled Conductors

Outer Jacket :  Black Low-Density Polyethylene
