Thermax-MIL-W-16878/5 (Type EE) wire—heavy-wall extruded PTFE insulation -55 to 260° C. 1,000V 鍍銀, 鎳軍規超厚鐵氟龍耐高低溫 高壓電子線(Awg8 to 32)

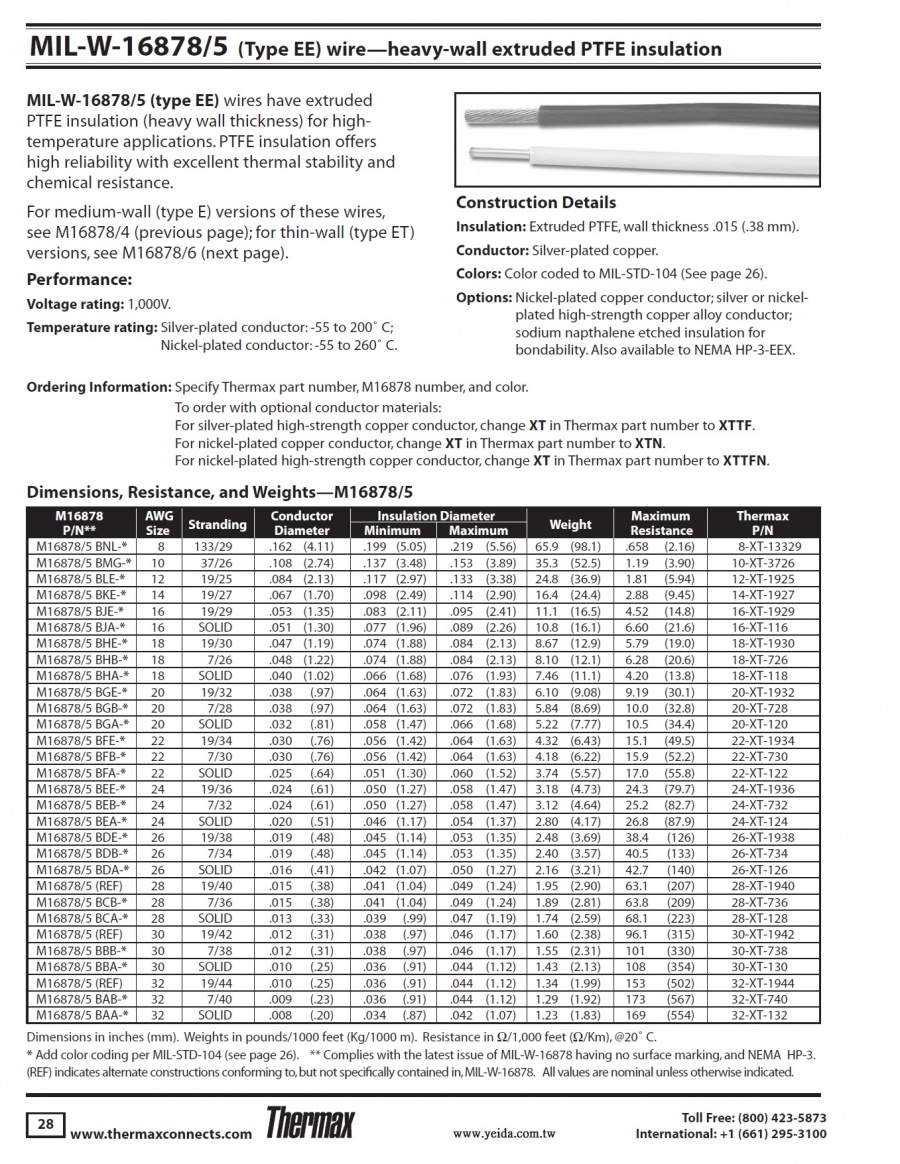

MIL-W-16878/5 (Type EE) wire—heavy-wall extruded PTFE insulation
MIL-W-16878/5 (type EE) wires have extruded
PTFE insulation (heavy wall thickness) for hightemperature
applications. PTFE insulation offers
high reliability with excellent thermal stability and
chemical resistance.
For medium-wall (type E) versions of these wires,
see M16878/4 (previous page); for thin-wall (type ET)
versions, see M16878/6 (next page).
Performance:
Voltage rating: 1,000V.
Temperature rating: Silver-plated conductor: -55 to 200° C;
Nickel-plated conductor: -55 to 260° C.
Construction Details
Insulation: Extruded PTFE, wall thickness .015 (.38 mm).
Conductor: Silver-plated copper.

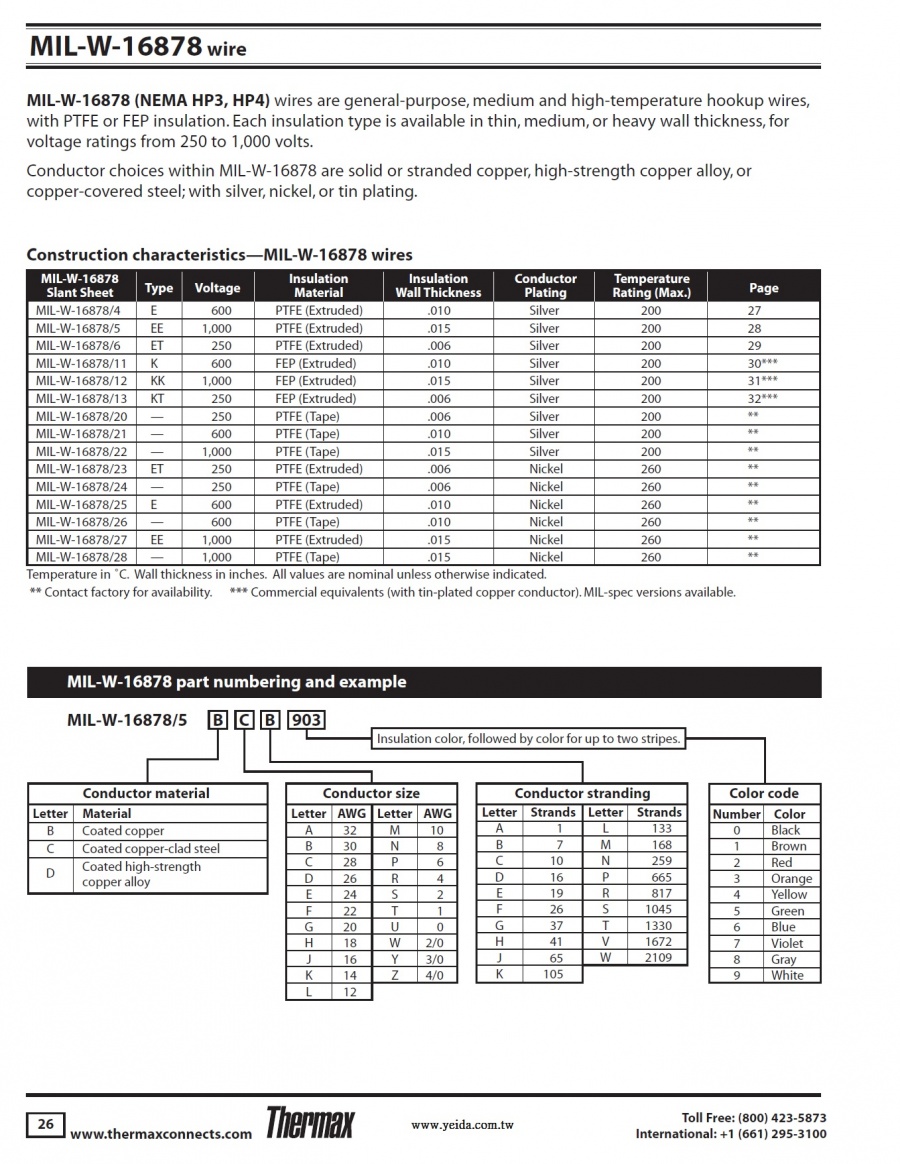

Colors: Color coded to MIL-STD-104 (See page 26).
Options: Nickel-plated copper conductor; silver or nickelplated
high-strength copper alloy conductor;
sodium napthalene etched insulation for
bondability. Also available to NEMA HP-3-EEX.
|
