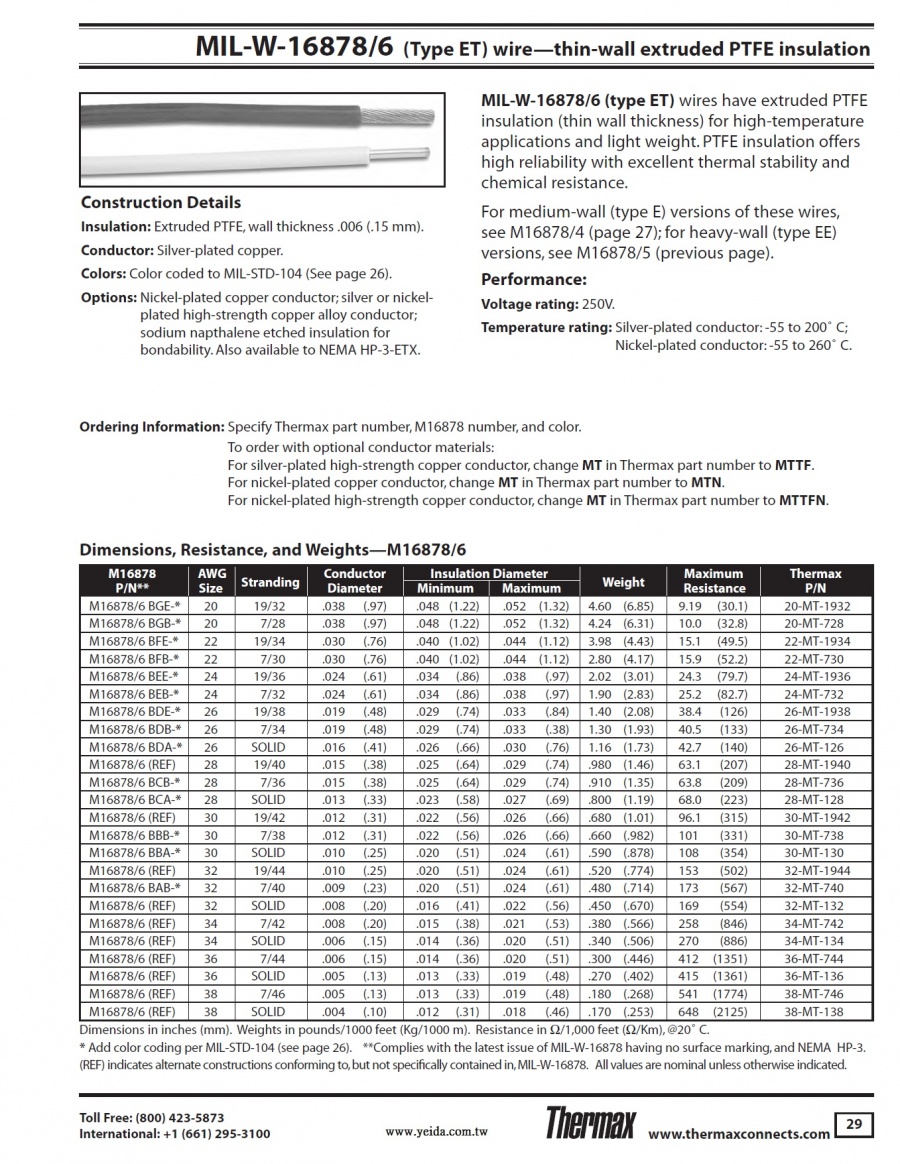

MIL-W-16878/6 (Type ET) wire—thin-wall extruded PTFE insulation
MIL-W-16878/6 (type ET) wires have extruded PTFE
insulation (thin wall thickness) for high-temperature
applications and light weight. PTFE insulation offers
high reliability with excellent thermal stability and
chemical resistance.
For medium-wall (type E) versions of these wires,
see M16878/4 (page 27); for heavy-wall (type EE)
versions, see M16878/5 (previous page).
Performance:
Voltage rating: 250V.
Temperature rating: Silver-plated conductor: -55 to 200° C;
Nickel-plated conductor: -55 to 260° C.
Construction Details
Insulation: Extruded PTFE, wall thickness .006 (.15 mm).
Conductor: Silver-plated copper.

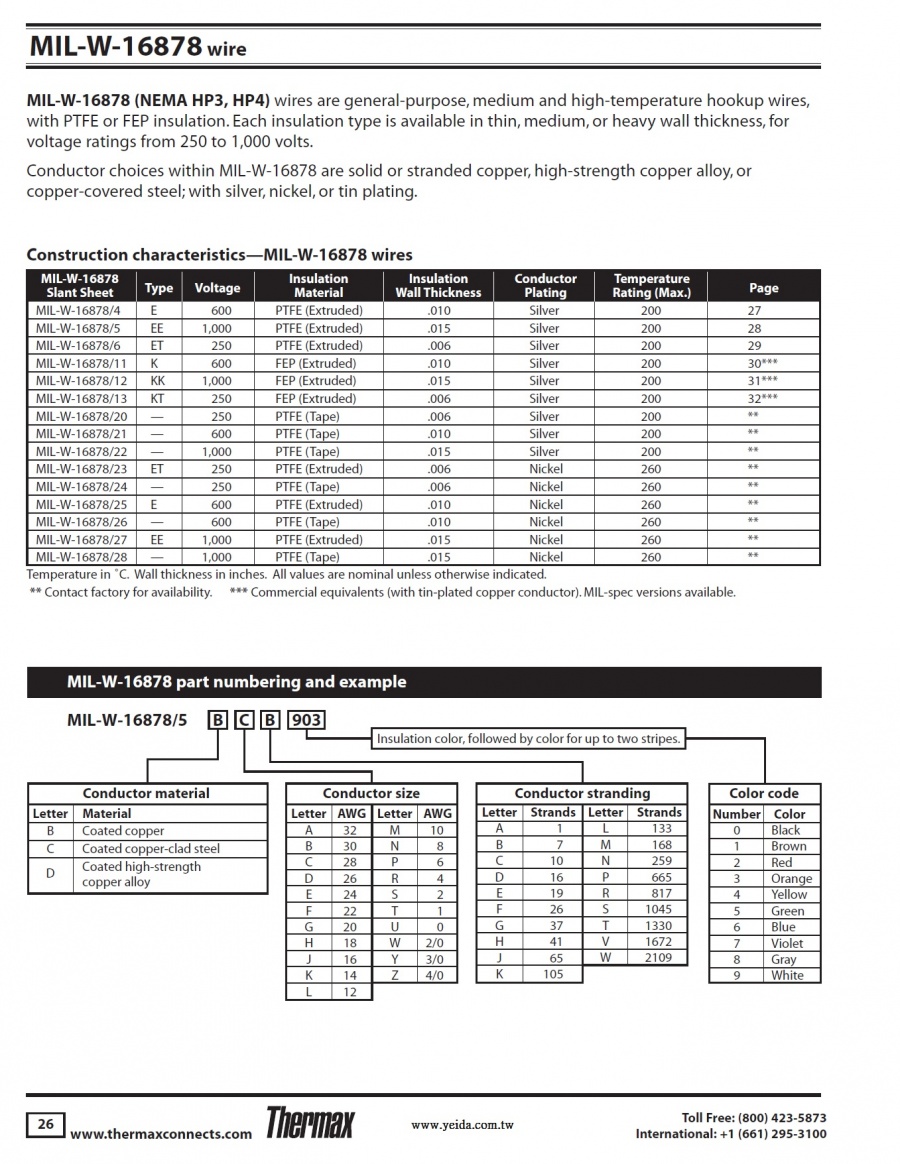

Colors: Color coded to MIL-STD-104 (See page 26).
Options: Nickel-plated copper conductor; silver or nickelplated
high-strength copper alloy conductor;
sodium napthalene etched insulation for
bondability. Also available to NEMA HP-3-ETX.
|
