M22759 (SAE AS22759) wires are high-performance, medium and high-temperature hookup wires with
extruded PTFE or ETFE, or PTFE/polyimide tape insulators, and stranded conductors.
These wires are designed for severe-environment aerospace applications, such as engine controls and
SWAMP areas. Some types are available with highly abrasion-resistant insulation and / or high-strength
conductors for maximum performance under mechanical stresses.
Wire types with PTFE tape insulation are available with our unique Seamless Wrap PTFE tape insulation
(see page 54 for details and part numbers).
　

M22759 (SAE AS22759)導線是高性能，中，高溫安裝線帶
擠壓PTFE或ETFE，PTFE或/聚酰亞胺膠帶絕緣體，和絞線。
這些導線被設計為嚴重環境航空航天應用，比如發動機控制和
沼澤地。某些類型的可與高耐磨性的絕緣和/或高強度的
導體在機械應力最大性能。
可與我們獨特的無縫裹PTFE膠帶絕緣導線類型與聚四氟乙烯絕緣膠帶

M22759

MIL-W-22759/5 Extruded mineral-filled PTFE* Silver 200 600 37
MIL-W-22759/6 Extruded mineral-filled PTFE* Nickel 260 600 37
MIL-W-22759/7 Extruded mineral-filled PTFE (light weight)* Silver 200 600 38
MIL-W-22759/8 Extruded mineral-filled PTFE (light weight)* Nickel 260 600 38
MIL-W-22759/9 Extruded PTFE Silver 200 1000 39
MIL-W-22759/10 Extruded PTFE Nickel 260 1000 39

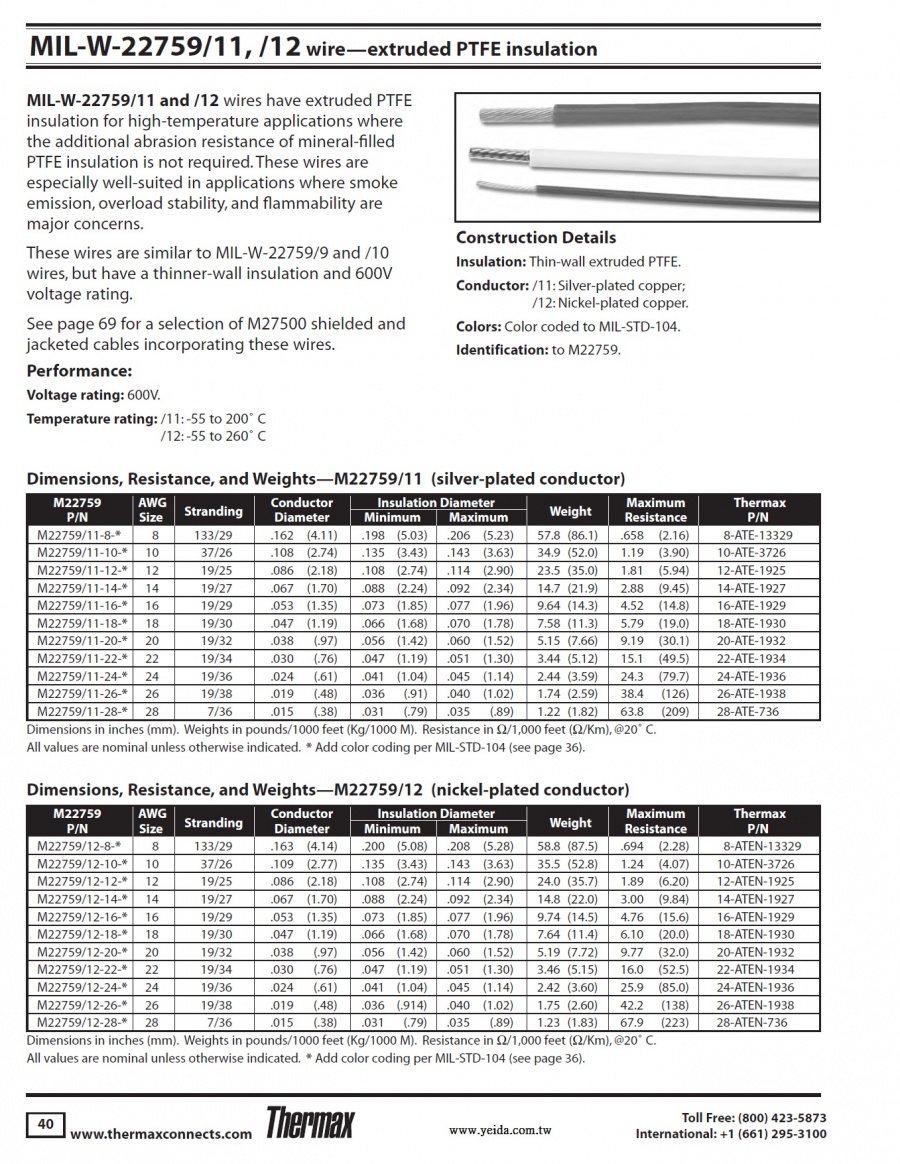

MIL-W-22759/11 Extruded PTFE (medium weight) Silver 200 600 40
MIL-W-22759/12 Extruded PTFE (medium weight) Nickel 260 600 40

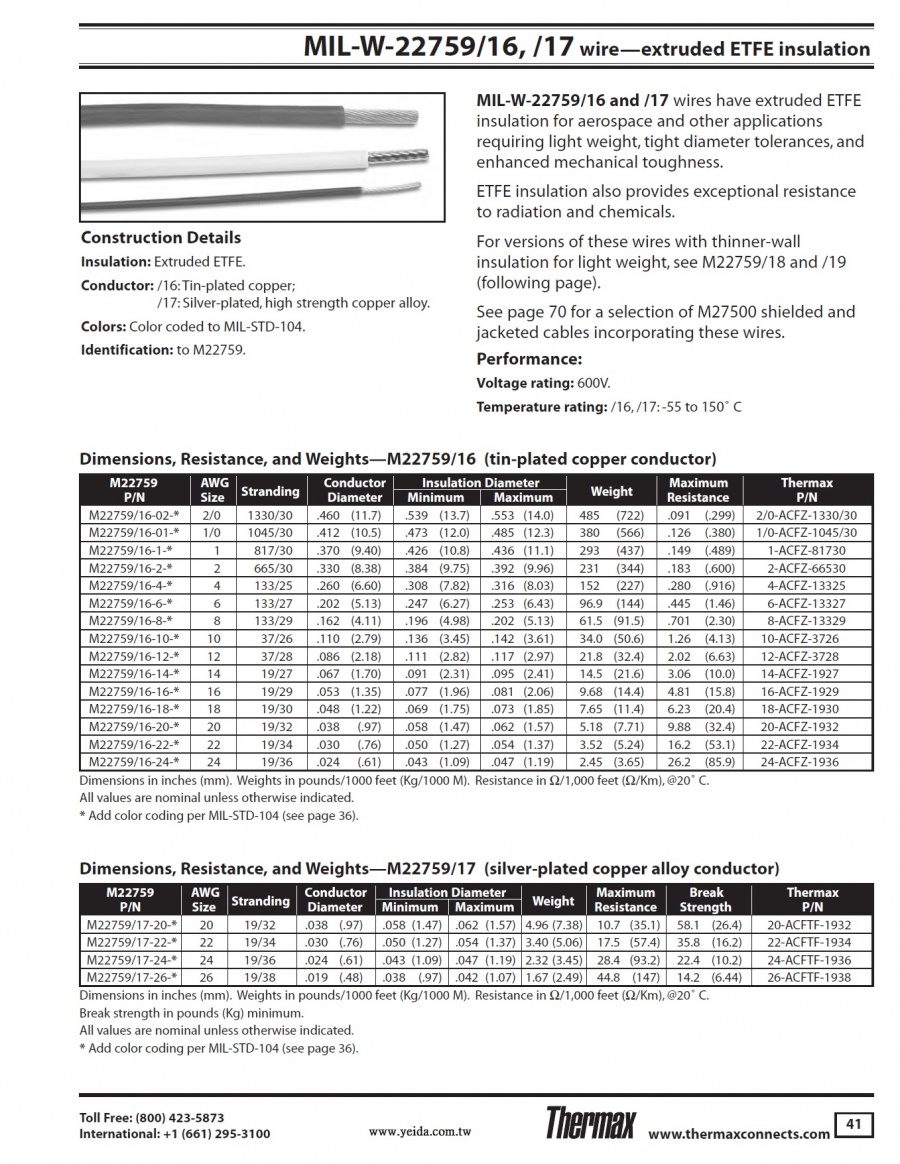

MIL-W-22759/16 Extruded ETFE Tin 150 600 41
MIL-W-22759/17 Extruded ETFE Silver 150 600 41

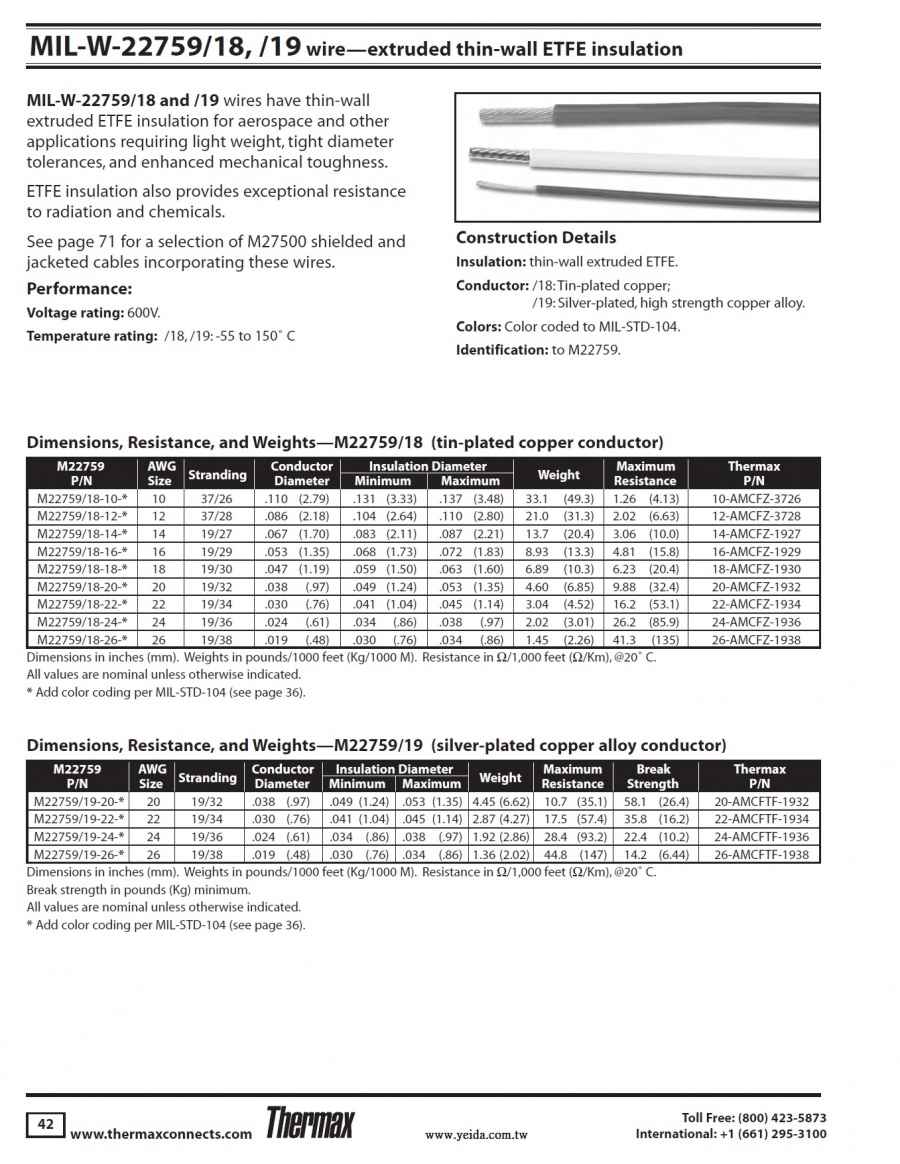

MIL-W-22759/18 Extruded ETFE (light weight) Tin 150 600 42
MIL-W-22759/19 Extruded ETFE (light weight) Silver 150 600 42
MIL-W-22759/20 Extruded PTFE Silver*** 200 1000 43
MIL-W-22759/21 Extruded PTFE Nickel*** 260 1000 43
MIL-W-22759/22 Extruded PTFE (light weight) Silver*** 200 600 44
MIL-W-22759/23 Extruded PTFE (light weight) Nickel*** 260 600 44
MIL-W-22759/28 Extruded PTFE with polyimide hardcoat* Silver 200 600 45
MIL-W-22759/29 Extruded PTFE with polyimide hardcoat* Nickel 260 600 45
MIL-W-22759/30 Extruded PTFE with polyimide hardcoat* Silver*** 200 600 46
MIL-W-22759/31 Extruded PTFE with polyimide hardcoat* Nickel*** 260 600 46
MIL-DTL-22759/80 PTFE/polyimide/PTFE tape and PTFE tape (light weight)** Tin 150 600 47
MIL-DTL-22759/81 PTFE/polyimide/PTFE tape and PTFE tape (light weight)** Silver*** 200 600 47
MIL-DTL-22759/82 PTFE/polyimide/PTFE tape and PTFE tape (light weight)** Nickel*** 260 600 47
MIL-DTL-22759/83 PTFE/polyimide/PTFE tape and PTFE tape** Silver 200 600 48
MIL-DTL-22759/84 PTFE/polyimide/PTFE tape and PTFE tape** Nickel 260 600 48
MIL-DTL-22759/85 PTFE/polyimide/PTFE tape and PTFE tape** Tin 150 600 48
MIL-DTL-22759/86 PTFE/polyimide/PTFE tape and PTFE tape** Silver 200 600 49
MIL-DTL-22759/87 PTFE/polyimide/PTFE tape and PTFE tape** Nickel 260 600 50
MIL-DTL-22759/88 PTFE/polyimide/PTFE tape and PTFE tape** Tin 150 600 51
MIL-DTL-22759/89 PTFE/polyimide/PTFE tape and PTFE tape** Silver*** 200 600 52
MIL-DTL-22759/90 PTFE/polyimide/PTFE tape and PTFE tape** Nickel*** 260 600 52
MIL-DTL-22759/91 PTFE/polyimide/PTFE tape and PTFE tape (light weight)** Silver 200 600 53
MIL-DTL-22759/92 PTFE/polyimide/PTFE tape and PTFE tape (light weight)** Nickel 260 600 53
Construction characteristics—M22759 wires
M22759 color coding
Temperature in °C. • *High abrasion resistance. • ** Available with Seamless Wrap PTFE tape outer insulation.
*** High-strength and ultra-high-strength copper alloy conductors.
