商品編號: Carlisle-TLL26-1190AS-19
Carlisle-AccuPhase® TLL26-1190AS-19, Low Loss Coaxial Cables frequencies up to 40GHz. Available in 77% Extruded PTFE, VP 50歐姆鍍銀鐵氟龍耐高低溫低損耗同軸電纜
-

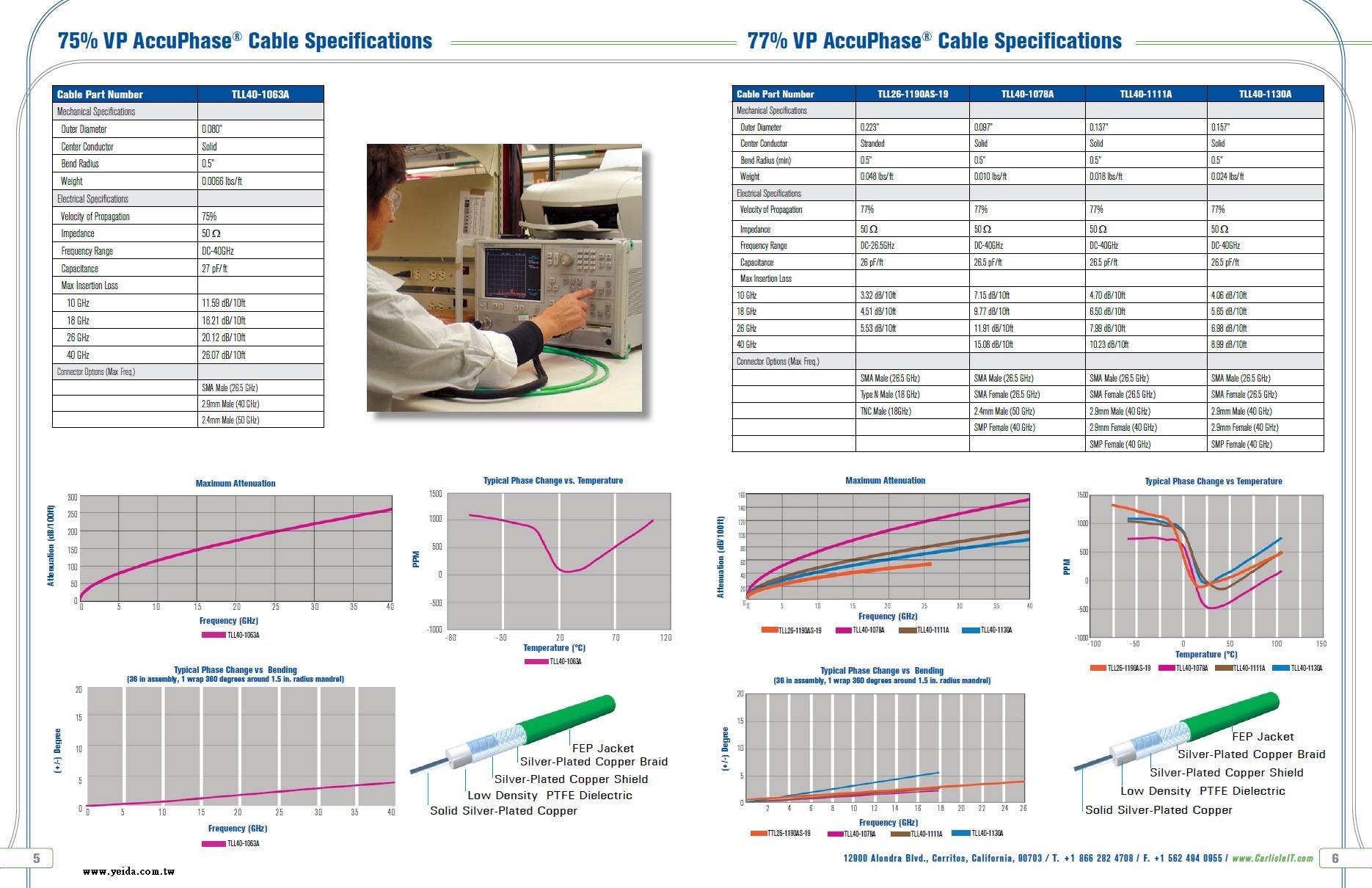

AccuPhase® Low Loss Coaxial Cables
AccuPhase® is a complete product family of low loss and phase stable flexible coaxial cable with frequencies up to 40GHz. Available in 70%, 75%, 77% and 82% VP, CarlisleIT’s AccuPhase® product line is ideal for many application...
77% Extruded PTFE
- Low Insertion Loss
- Phase Stable with Flexure
- Phase Stable over Temperature
- Low VSWR
- Durable
- Frequency Range up to 40 GHz
| Cable P/N |
TLL26-1190AS-19
|
TLL40-1078A
|
TLL40-1111A
|
TLL40-1130A
|
| Mechanical Specifications |
|
|
|
|
| Outer Diameter |
0.223”
|
0.097”
|
0.137”
|
0.157”
|
| Center Conductor |
Stranded
|
Solid
|
Solid
|
Solid
|
| Bend Radius (min) |
0.5”
|
0.5”
|
0.5”
|
0.5”
|
| Weight |
0.048 lbs/ft
|
0.048 lbs/ft
|
0.048 lbs/ft
|
0.048 lbs/ft
|
| Electrical Specifications |
|
|
|
|
| VP |
77%
|
77%
|
77%
|
77%
|
| Impedance |
50 Ω
|
50 Ω
|
50 Ω
|
50 Ω
|
| Frequency Range |
DC-26.5GHz
|
DC-40GHz
|
DC-40GHz
|
DC-40GHz
|
| Capacitance |
26 pF/ft
|
26.5 pF/ft
|
26.5 pF/ft
|
26.5 pF/ft
|
| Max Insertion Loss: |
|
|
|
|
| 10 GHz |
3.32 dB/10ft
|
7.15 dB/10ft
|
4.70 dB/10ft
|
4.06 dB/10ft
|
| 18GHz |
4.51 dB/10ft
|
9.77 dB/10ft
|
6.50 dB/10ft
|
5.65 dB/10ft
|
| 26 GHz |
5.53 dB/10ft
|
11.91 dB/10ft
|
7.99 dB/10ft
|
6.98 dB/10ft
|
| 40 GHz |
--
|
15.08 dB/10ft
|
10.23 dB/10ft
|
8.99 dB/10ft
|
