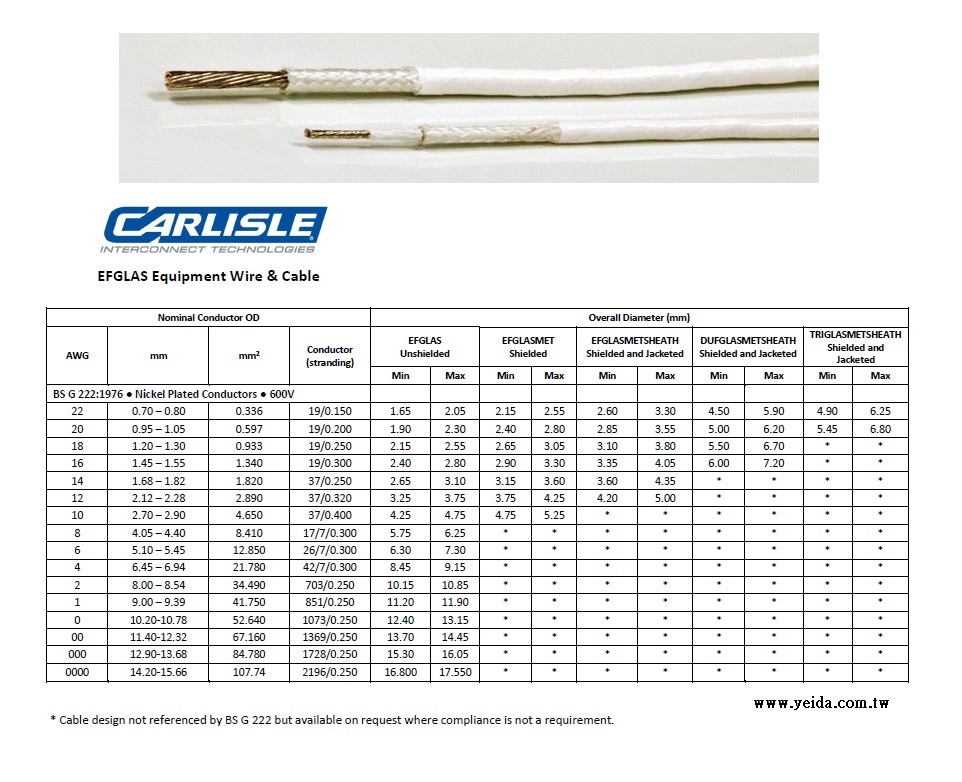

EFGLAS Equipment Wire & Cable
A composite insulation of glass and PTFE (Polytetrafluoroethylene), EFGLAS provides extreme strength, abrasion and temperature resistance from the combination of PTFE tape and a PTFE impregnated glass yarn braid. Typical applications include aerospace and aircraft wiring, and industrial applications where high tensile strength is required.
Excellent resistance to fuels, hydraulic fuel and petroleum and ester based oils
Operating temperature - 75°C to + 260°C
600 V rating
Nickel-plated conductors
White with EFGLAS print legend for ease of identification
Non-flammable
Combination of PTFE tape and a PTFE impregnated glass yarn braid
Nominal Conductor OD
Overall Diameter (mm)
AWG
mm
mm²
Conductor (stranding)
EFGLAS Unshielded
EFGLASMET Shielded
EFGLASMETSHEATH Shielded and Jacketed
DUFGLASMETSHEATH Shielded and Jacketed
TRIGLASMETSHEATH Shielded and Jacketed
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
BS G 222:1976 ● Nickel Plated Conductors ● 600V
22
0.70 – 0.80
0.336
19/0.150
1.65
2.05
2.15
2.55
2.60
3.30
4.50
5.90
4.90
6.25
20
0.95 – 1.05
0.597
19/0.200
1.90
2.30
2.40
2.80
2.85
3.55
5.00
6.20
5.45
6.80
18
1.20 – 1.30
0.933
19/0.250
2.15
2.55
2.65
3.05
3.10
3.80
5.50
6.70
*
*
16
1.45 – 1.55
1.340
19/0.300
2.40
2.80
2.90
3.30
3.35
4.05
6.00
7.20
*
*
14
1.68 – 1.82
1.820
37/0.250
2.65
3.10
3.15
3.60
3.60
4.35
*
*
*
*
12
2.12 – 2.28
2.890
37/0.320
3.25
3.75
3.75
4.25
4.20
5.00
*
*
*
*
10
2.70 – 2.90
4.650
37/0.400
4.25
4.75
4.75
5.25
*
*
*
*
*
*
8
4.05 – 4.40
8.410
17/7/0.300
5.75
6.25
*
*
*
*
*
*
*
*
6
5.10 – 5.45
12.850
26/7/0.300
6.30
7.30
*
*
*
*
*
*
*
*
4
6.45 – 6.94
21.780
42/7/0.300
8.45
9.15
*
*
*
*
*
*
*
*
2
8.00 – 8.54
34.490
703/0.250
10.15
10.85
*
*
*
*
*
*
*
*
1
9.00 – 9.39
41.750
851/0.250
11.20
11.90
*
*
*
*
*
*
*
*
0
10.20-10.78
52.640
1073/0.250
12.40
13.15
*
*
*
*
*
*
*
*
00
11.40-12.32
67.160
1369/0.250
13.70
14.45
*
*
*
*
*
*
*
*
000
12.90-13.68
84.780
1728/0.250
15.30
16.05
*
*
*
*
*
*
*
*
0000
14.20-15.66
107.74
2196/0.250
16.800
17.550
*
*
*
*
*
*
*
*
* Cable design not referenced by BS G 222 but available on request where compliance is not a requirement.
