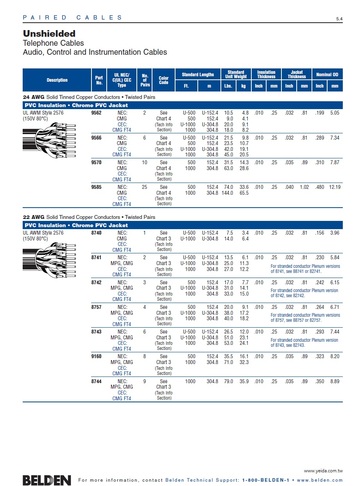

Unshielded
Telephone Cables
Audio, Control and Instrumentation Cables

24 AWG Solid Tinned Copper Conductors • Twisted Pairs
PVC Insulation • Chrome PVC Jacket
UL AWM Style 2576 (150V 80°C) NEC: CMG CEC:FT4

Belden-9562  2 P
Belden-9566  6P
Belden-9570  10P
Belden-9585  25P
　

22 AWG Solid Tinned Copper Conductors • Twisted Pairs
PVC Insulation • Chrome PVC Jacket
UL AWM Style 2576 (150V 80°C) NEC: CMG CEC:FT4

Belden-8740 1P
Belden-8741  2P
Belden-8742  3P
Belden-8757  4P
Belden-8743  6P
Belden-9160  8P
Belden-8744 9P

Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
　

Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
　

As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
　

Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
　

Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging.
