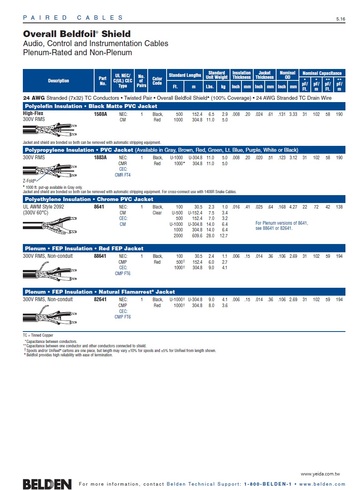

Overall Beldfoil® Shield
Audio, Control and Instrumentation Cables
Plenum-Rated and Non-Plenum

24 AWG Stranded (7x32) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 24 AWG Stranded TC Drain Wire
Polyolefin Insulation • Black Matte PVC Jacket
High-Flex 300V RMS CM

Belden-1508A  1P
Jacket and shield are bonded so both can be removed with automatic stripping equipment.
　

Polypropylene Insulation • PVC Jacket (Available in Gray, Brown, Red, Green, Lt. Blue, Purple, White or Black)
300V RMS CMR FT4

Belden-1883A  1P
CMR FT4
1000 ft. put-up available in Gray only.
Jacket and shield are bonded so both can be removed with automatic stripping equipment. For cross-connect use with 1408R Snake Cables.
　

Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 2092

Belden-8641  1P
(300V 60°C) CM Clear

Plenum • FEP Insulation • Red FEP Jacket
300V RMS, Non-conduit

Belden-88641  1P
CMP FT6
　

Plenum • FEP Insulation • Natural Flamarrest® Jacket
300V RMS, Non-conduit

Belden-82641  1P
CMP FT6
TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools and/or UnReel® cartons are one piece, but length may vary ±10% for spools and ±5% for UnReel from length shown.
Beldfoil provides high reliability with ease of termination.

22 AWG Solid Tinned Copper Conductors • Twisted Pairs • Overall Beldfoil Shield (100% Coverage) • 22 AWG Stranded TC Drain Wire
PVC Insulation • Chrome PVC Jacket
UL AWM Style 2464 CMG FT4

Belden-9302  2P
Belden-9305  4P
Belden-9306  6P
Belden-9309  9P
Belden-9315  15P
Belden-9319  19P
Belden-9327  27P
300V RMS, 60ºC Belden-8751  51P
CMG FT4 T/8-4

22 AWG Solid Tinned Copper Conductors • Twisted Pairs • Duofoil® Shield (100% Coverage) • 22 AWG Stranded Tinned Copper Drain Wire
Datalene® Insulation • Black PVC Jacket
UL AWM Style 2668

Belden-9184  2P
(300V 60°C) CM
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools are one piece, but length may vary -0 to +20% from length shown.
Datalene insulation features include low dielectric constant and a See Attenuation, Rise Time and Bit Rate data for this series on page 5.10.
dissipation factor for high-speed, low-distortion data handling.
Physical properties include good crush resistance and light weight

Introduction

Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
　

Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
　

As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
　

Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
　

Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
