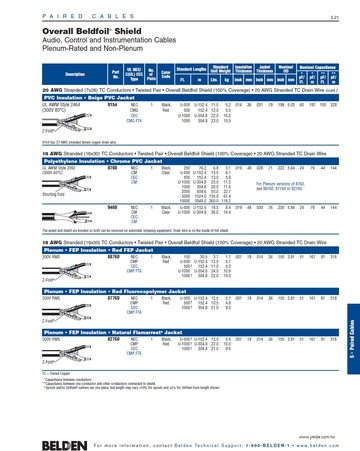

Beden-9460, Audio, Control and Instrumentation FTP Cables CM, CMR, CMG, CMP 20, 18, 16, 14, 12 AWG 1對型鋁箔隔離声音音響通訊儀表監控電纜
Overall Beldfoil® Shield
Audio, Control and Instrumentation Cables
Plenum-Rated and Non-Plenum
20 AWG Stranded (7x28) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 20 AWG Stranded TC Drain Wire (cont.)
PVC Insulation • Beige PVC Jacket
UL AWM Style 2464 CMG FT4
Belden-9154 1P
Belden-9154 has 22 AWG stranded tinned copper drain wire.
18 AWG Stranded (16x30) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 20 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 2092 (300V 60°C) CM
Belden-8760 1P
Belden-9460 1P
The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is on the inside of foil shield.
18 AWG Stranded (19x30) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 20 AWG Stranded TC Drain Wire
Plenum • FEP Insulation • Red FEP Jacket
300V RMS CMP FT6
Belden-88760 1P
Plenum • FEP Insulation • Red Fluorocopolymer Jacket
300V RMS CMP FT6
Belden-87760 1P
Plenum • FEP Insulation • Natural Flamarrest® Jacket
300V RMS CMP FT6
Belden-82760 1P
TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools and/or UnReel® cartons are one piece, but length may vary ±10% for spools and ±5% for UnReel from length shown.
Overall Beldfoil® Shield
Audio, Control and Instrumentation Cables
16 AWG Stranded (19x29) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 18 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 20253 (600V 80°C) CM, CL2
Belden-8719 1P
14 AWG Stranded (19x27) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 16 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 20253 (600V 80°C) CM, CL2
Belden-8720 1P
12 AWG Stranded (19x25) TC Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 14 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 20253 (600V 80°C) CL2
Belden-8718 1P
TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
keywords: Beden-9154, Audio, Control and Instrumentation FTP Cables CM, CMR, CMG, CMP 20, 18, 16, 14, 12 AWG 1對型鋁箔隔離声音音響通訊儀表監控電纜, Beden 9154, Beden8760, Beden9460, Beden88760, Beden87760, Beden82760, ul2092, ul20263, ul2464 |
