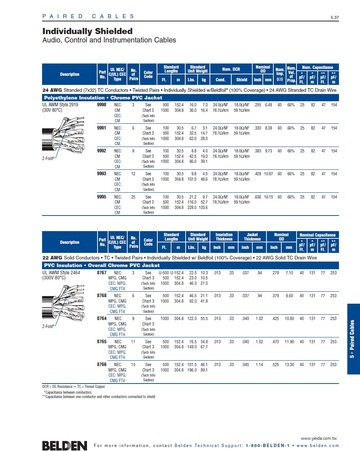

Beden-8768, Audio, Control and Instrumentation Individually Shielded Cables CM, CMG, CMP, FT4 22, 24 AWG 多對型個別鋁箔隔離声音音響通訊儀表監控電纜
Individually Shielded
Audio, Control and Instrumentation Cables
24 AWG Stranded (7x32) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 24 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 2919 (30V 80°C) CM
Belden-9990 3P
Belden-9991 6P
Belden-9992 9P
Belden-9993 12P
Belden-9995 25P
Individually Shielded
Audio, Control and Instrumentation Cables
22 AWG Solid Conductors • TC • Twisted Pairs • Individually Shielded w/ Beldfoil (100% Coverage) • 22 AWG Solid TC Drain Wire
PVC Insulation • Overall Chrome PVC Jacket
UL AWM Style 2464 (300V 80°C) MPG, CMG FT4
Belden-8767 3P
Belden-8768 6P
Belden-8764 9P
Belden-8765 11P
Belden-8766 15P
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Individually Shielded
Audio, Control and Instrumentation Cables
Plenum-Rated and Non-Plenum
22 AWG Stranded (7x30) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 22 AWG Stranded TC Drain Wire
Semi-rigid PVC Insulation • Pale Fawn Beige PVC Jacket (Shielded Pairs Parallel under Jacket)
UL AWM Style 2464 (300V 80°C) CMG FT4
Belden-9406 2P
22 AWG Stranded (7x30) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil (100% Coverage) • 24 AWG Stranded TC Drain Wire
Polypropylene Insulation • Chrome PVC Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
300V RMS 60°C CM
Belden-8723 2P
Polypropylene Insulation • Black Low-Smoke, Zero-Halogen Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
300V RMS 60°C CMG-LS FT4 Limited Smoke
Belden-8723SB 2P
Plenum • FEP Insulation • Natural Flamarrest® Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
300V RMS, Non-conduit CMP FT6
Belden-82723 2P
Plenum • FEP Insulation • Red FEP Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
300V RMS, Non-conduit CMP FT6
Belden-88723 2P
Plenum • FEP Insulation • Red Fluorocopolymer Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
300V RMS, Non-conduit CMP FT6
Belden-87723 2P
DCR = DC Resistance • FEP = Fluorinated Ethylene Propylene • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools and/or UnReel® cartons are one piece, but length may vary ±10% for spools and ±5% for UnReel from length show.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
