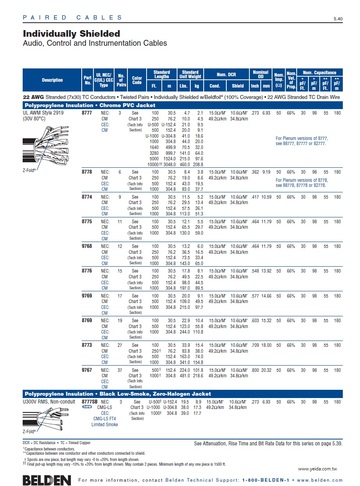

Beden-8774 Audio, Control and Instrumentation Individually Shielded Cables (30V 80°C) CM 50Ω 22 AWG 多對型UL/2919個別鋁箔隔離声音音響通訊儀表監控電纜
Individually Shielded
Audio, Control and Instrumentation Cables
22 AWG Stranded (7x30) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 22 AWG Stranded TC Drain Wire
Polypropylene Insulation • Chrome PVC Jacket
UL AWM Style 2919 (30V 80°C) CM
Belden-8777 3P
Belden-8778 6P
Belden-8774 9P
Belden-8775 11P
Belden-9768 12P
Belden-8776 15P
Belden-9769 17P
Belden-8769 19P
Belden-8773 27P
Belden-9767 37P
Polypropylene Insulation • Black Low-Smoke, Zero-Halogen Jacket
U300V RMS, Non-conduit
Belden-8777SB 3P
CMG-LS FT4 Limited Smoke
DCR = DC Resistance • TC = Tinned Copper See Attenuation, Rise Time and Bit Rate Data for this series on page 5.39.
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools are one piece, but length may vary -0 to +20% from length shown.
†† Final put-up length may vary -10% to +20% from length shown. May contain 2 pieces. Minimum length of any one piece is 1500 ft.
Individually Shielded
Audio, Control and Instrumentation Cables
Plenum-Rated and Non-Plenum
22 AWG Stranded (7x30) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 22 AWG Stranded TC Drain Wire
Plenum • FEP Insulation • Natural Flamarrest® Jacket
300V RMS CMP FT6 46, 50Ω
Belden-82777 3P
Belden-82778 6P
Plenum • FEP Insulation • Red FEP Jacket
300V RMS CMP FT6 50Ω
Belden-88777 3P
Belden-88778 6P
Plenum • FEP Insulation • Red Fluorocopolymer Jacket
300V RMS CMP FT6 50Ω
Belden-87777 3P
Belden-87778 6P
20 AWG Stranded (7x28) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil (100% Coverage) • 22 AWG Stranded TC Drain Wire
Semi-rigid PVC Insulation • Overall Chrome PVC Jacket
UL AWM Style 2464 (300V 80°C) CMG FT4
Belden-9402 2P
20 AWG Stranded (10x30) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil (100% Coverage) • 22 AWG Stranded TC Drain Wire
Polypropylene Insulation • Black High-density Polyethylene Jacket
Belden-9883 3P
Belden-9886 6P
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools and/or UnReel® cartons are one piece, but length may vary ±10% for spools and ±5% for UnReel from length shown.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
