商品編號: Belden-9685
Beden-8730, Special Audio, Control and Instrumentation Combination Shields Cables 特殊結構組合多對型隔離声音音響通訊儀表監控電纜

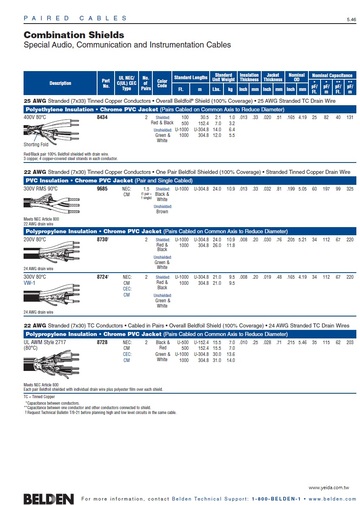

Combination Shields
Special Audio, Communication and Instrumentation Cables
25 AWG Stranded (7x33) Tinned Copper Conductors • Overall Beldfoil® Shield (100% Coverage) • 25 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
400V 80ºC
Belden-8434 2P (1P Shielded + 1PUnshielded)
Red/Black pair 100% Beldfoil shielded with drain wire.
3 copper, 4 copper-covered steel strands in each conductor.
22 AWG Stranded (7x30) Tinned Copper Conductors • One Pair Beldfoil Shielded (100% Coverage) • Stranded Tinned Copper Drain Wire
PVC Insulation • Chrome PVC Jacket (Pair and Single Cabled)
300V RMS 90ºC CM
Belden-9685 1.5P (1 pair Shielded + 1 single Unshielded Brown)
Meets NEC Article 800
22 AWG drain wire
Polypropylene Insulation • Chrome PVC Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
200V 80ºC
Belden-8730† 2P (1 pair Shielded + 1 pair Unshielded)
24 AWG drain wire White
300V 80ºC VW-1 CM
Belden-8724† 2P (1 pairShielded + 1 pair Unshielded)
24 AWG drain wire
22 AWG Stranded (7x30) TC Conductors • Cabled in Pairs • Overall Beldfoil Shield (100% Coverage) • 24 AWG Stranded TC Drain Wires
Polypropylene Insulation • Chrome PVC Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
UL AWM Style 2717 (80°C) CM Meets NEC Article 800
Belden-8728 2P
Each pair Beldfoil shielded with individual drain wire plus polyester film over each shield.
TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Request Technical Bulletin T/8-21 before planning high and low level circuits in the same cable.
Combination Shields
Special Audio, Communication and Instrumentation Cables
20 AWG Stranded (7x28) TC Conductors • Conductors Cabled • Beldfoil® Shield as noted (100% Coverage) • 20 or 22 AWG Stranded TC Drain Wire
Polyethylene Insulation • Chrome PVC Jacket
350V 80ºC
Belden-8763 — 1.5P (1 pair Shielded + 1 single Unshielded)
Beldfoil shield over Red and Black pair only. Clear conductor is unshielded. 20 AWG drain wire.
PVC Insulation • Chrome PVC Jacket (Pairs Cabled on Common Axis to Reduce Diameter)
350V 80ºC VW-1 CMG FT4
Belden-8722 2P (1 pair Shielded + 1 pair Unshielded)
Beldfoil shield over Red and Black conductors only. 22 AWG drain wire.
Request Technical Bulletin T/8-21 before planning high and low level circuits in the same cable.
Polypropylene Insulation • Chrome PVC Jacket (Cabled Around a Common Axis)
400V 105ºC VW-1 CM
Belden-8725 4P
Four groups of two conductors with drain wires, each group individually Beldfoil shielded with polyester tape wrap. 22 AWG drain wire.
20 and 18 AWG Stranded (7x28 and 16x30) TC Conductors • Beldfoil Shield (100% Coverage) over 20 AWG Pair • 22 AWG Stranded TC Drain Wire
Polyethylene Insulation • Beige PVC Jacket
UL AWM Style 2094 (300V 60ºC) CM
Belden-9155 2P (1 pair 20 (7x28) Shielded + 1 pair 18 (16x30) Unshielded)
NEC Article 800
TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
