商品編號: Belden-88442

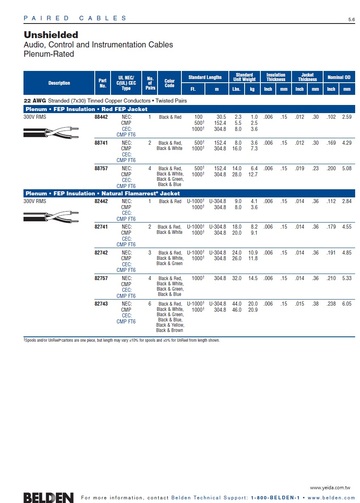

Beden-88741 Audio, Control and Instrumentation UTP Cables 18, 22 AWG Plenum-Rated 鐵氟龍耐燃多對型声音音響通訊儀表監控電纜
Plenum-Rated
Unshielded
Audio, Control and Instrumentation Cables
22 AWG Stranded (7x30) Tinned Copper Conductors • Twisted Pairs
Plenum • FEP Insulation • Red FEP Jacket
300V RMS CMP FT6
Belden-88442 1P Black & Red
Belden-88741 2P
Belden-88757 4P
Plenum • FEP Insulation • Natural Flamarrest® Jacket
300V RMS
Belden-82442 1P
Belden-82741 2P
Belden-82742 3P
Belden-82757 4P
Belden-82743 6P
18 AWG Stranded (19x30) Tinned Copper Conductors • Twisted Pair
Plenum • FEP Insulation • Red FEP Jacket
300V RMS CMP FT6
Belden-89740 1P
Plenum • FEP Insulation • Red Fluorocopolymer Jacket
300V RMS CMP FT6
Belden-87740 1P
Plenum • FEP Insulation • Natural Flamarrest Jacket
300V RMS CMP FT6
Belden-82740 1P
†Spools and/or UnReel® cartons are one piece, but length may vary ±10% for spools and ±5% for UnReel from length shown.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
