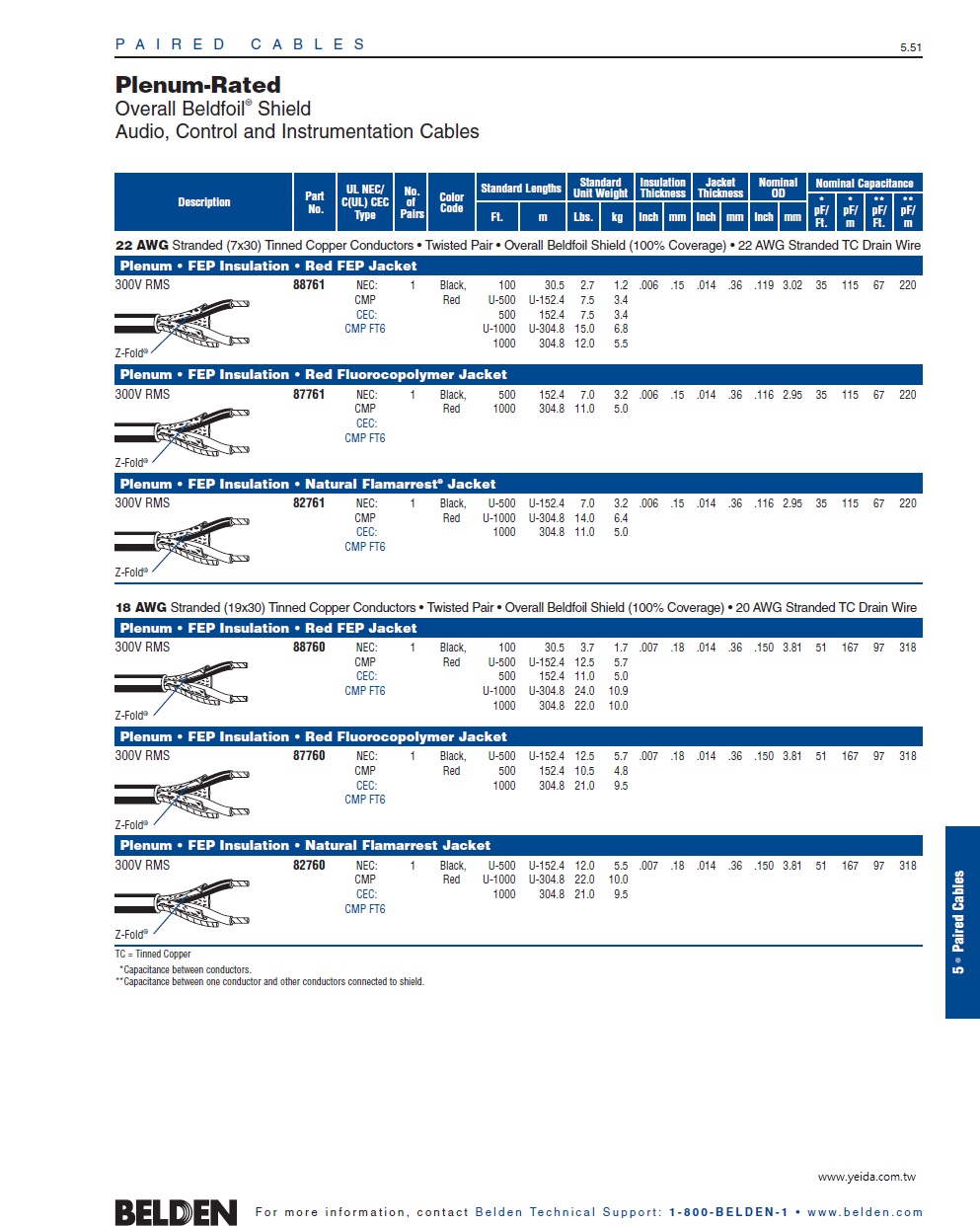

Plenum-Rated
Overall Beldfoil® Shield
Audio, Control and Instrumentation Cables

22 AWG Stranded (7x30) Tinned Copper Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 22 AWG Stranded TC Drain Wire
Plenum • FEP Insulation • Red FEP Jacket
300V RMS CMP FT6

Belden-88761  1P

Plenum • FEP Insulation • Red Fluorocopolymer Jacket
300V RMS CMP FT6

Belden-87761  1P

Plenum • FEP Insulation • Natural Flamarrest® Jacket
300V RMS CMP FT6

Belden-82761  1P
　

18 AWG Stranded (19x30) Tinned Copper Conductors • Twisted Pair • Overall Beldfoil Shield (100% Coverage) • 20 AWG Stranded TC Drain Wire
Plenum • FEP Insulation • Red FEP Jacket
300V RMS CMP FT6

Belden-88760  1P
　

Plenum • FEP Insulation • Red Fluorocopolymer Jacket
300V RMS CMP FT6

Belden-87760  1P

Plenum • FEP Insulation • Natural Flamarrest Jacket
300V RMS CMP FT6

Belden-82760  1P
TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.

Introduction

Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
　

Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
　

As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
　

Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
　

Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
