商品編號: Belden-89730
Belden-89729, Low-Capacitance Computer Cables for EIA RS-422 & 232 Individually Foil Shield 24 AWG 300V 100(Ω)歐姆低電容多芯對型個別鋁箔隔離數位音響電腦線

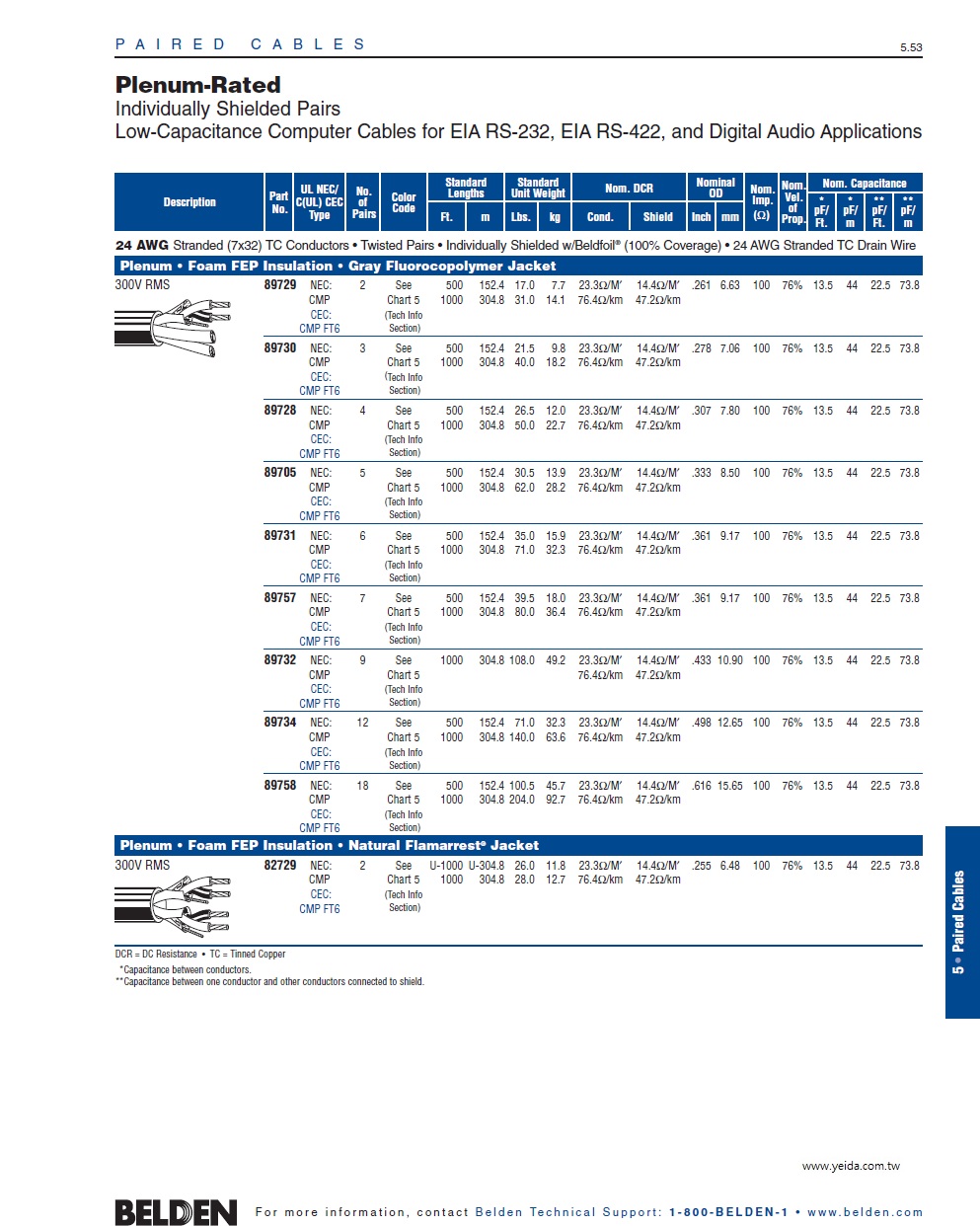

Plenum-Rated
Individually Shielded Pairs
Low-Capacitance Computer Cables for EIA RS-232, EIA RS-422, and Digital Audio Applications
24 AWG Stranded (7x32) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 24 AWG Stranded TC Drain Wire
Plenum • Foam FEP Insulation • Gray Fluorocopolymer Jacket
300V RMS CMP FT6
Belden-89729 2P
Belden-89730 3P
Belden-89728 4P
Belden-89705 5P
Belden-89731 6P
Belden-89757 7P
Belden-89732 9P
Belden-89734 12P
Belden-89758 18P
Plenum • Foam FEP Insulation • Natural Flamarrest® Jacket
300V RMS CMP FT6
Belden-82729 2P
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
