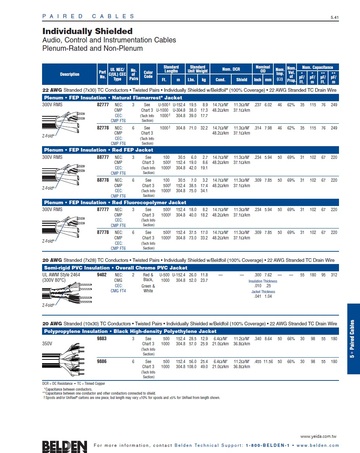

Plenum-Rated
Individually Shielded Pairs
Audio, Control and Instrumentation Cables

22 AWG Stranded (7x30) TC Conductors • Twisted Pairs • Individually Shielded Beldfoil® (100% Coverage) • 22 AWG Stranded TC Drain Wire††
Plenum • FEP Insulation • Natural Flamarrest® Jacket
300V RMS CMP FT6

Belden-82723  2P
Belden-82723 has 24 AWG drain wire
Pairs cabled on common axis to reduce diameter.
300V RMS

Belden-82777  3P
Belden-82778  6P
　

Plenum • FEP Insulation • Red FEP Jacket
Belden- 88723  2P
Belden-88723 has 24 AWG drain wire
Belden-88777  3P
Belden-88778  6P
Pairs cabled on common axis to reduce diameter.
　

Plenum • FEP Insulation • Red Fluorocopolymer Jacket
Belden-87723  2P
Belden-87723 has 24 AWG drain wire.
Belden-87777  3P
Belden-87778  6P
Pairs cabled on common axis to reduce diameter.
DCR = DC Resistance • FEP = Fluorinated Ethylene Propylene • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.

Introduction

Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
　

Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
　

As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
　

Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
　

Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
