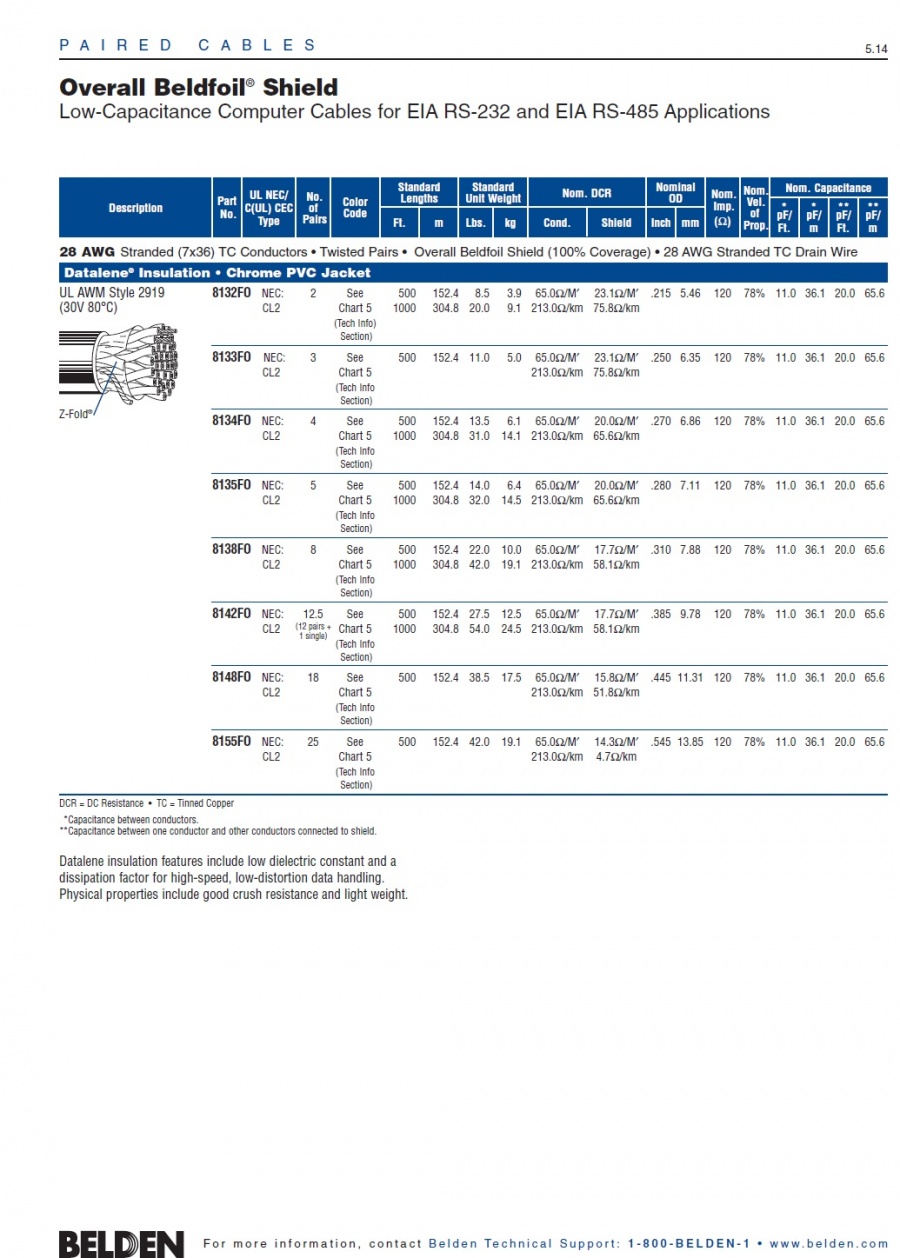

Overall Beldfoil® Shield
Low-Capacitance Computer Cables for EIA RS-232 and EIA RS-485 Applications

28 AWG Stranded (7x36) TC Conductors • Twisted Pairs • Overall Beldfoil Shield (100% Coverage) • 28 AWG Stranded TC Drain Wire
Datalene® Insulation • Chrome PVC Jacket
UL AWM Style 2919 (30V 80°C) CL2

Belden- 8132FO  2P
Belden- 8133FO  3P
Belden- 8134FO  4P
Belden- 8135FO  5P
Belden- 8138FO  8P
Belden- 8142FO  12.5P
Belden- 8148FO  18P
Belden- 8155FO  25P
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Datalene insulation features include low dielectric constant and a
dissipation factor for high-speed, low-distortion data handling.
Physical properties include good crush resistance and light weight.

Introduction

Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
　

Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
　

As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
　

Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
　

Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
