商品編號: Belden-8334 RS232-SFTP-24
Belden 8355 Low-Capacitance Computer Cables for EIA RS-232 Overall Foil/Braid Shield 24 AWG (300V 80°C) 75(Ω)歐姆低電容多芯對型UL/2464鋁箔銅網隔離電腦線

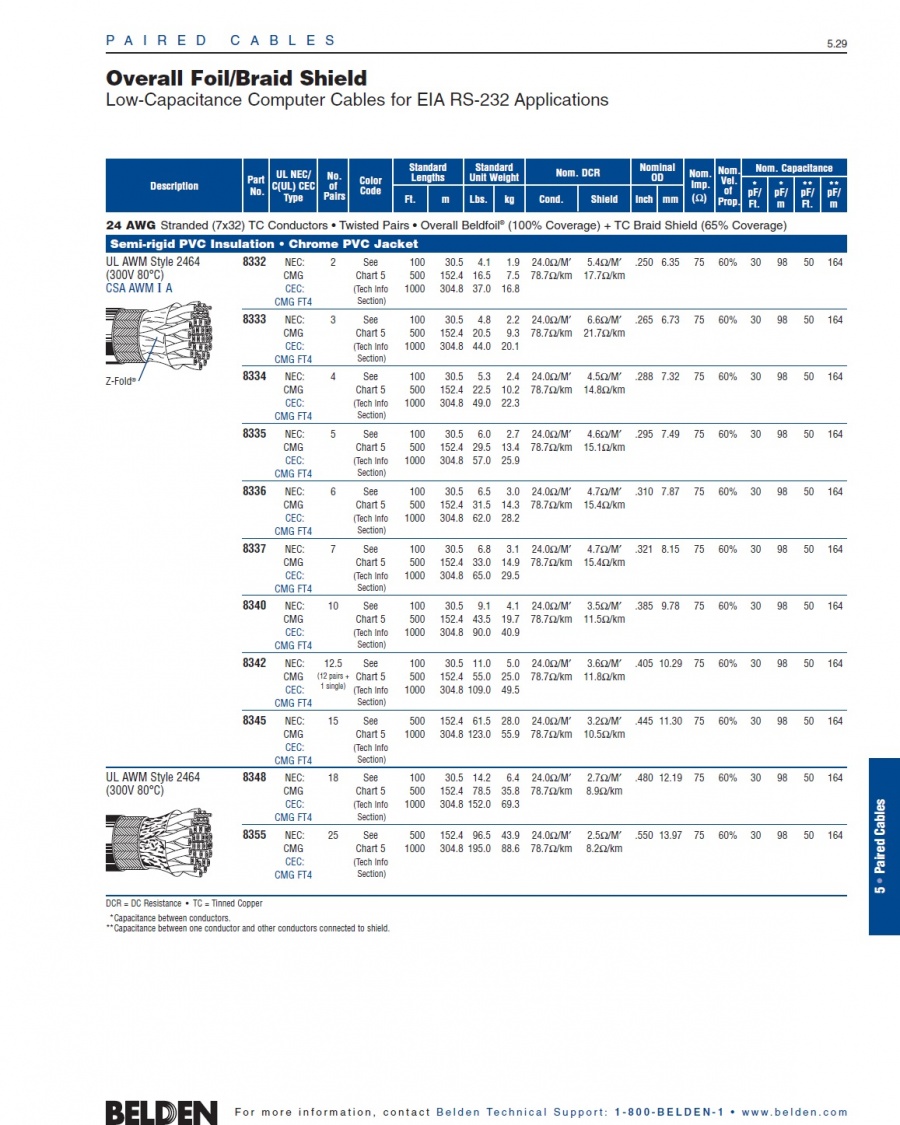

Overall Foil/Braid Shield
Low-Capacitance Computer Cables for EIA RS-232 Applications
24 AWG Stranded (7x32) TC Conductors • Twisted Pairs • Overall Beldfoil® (100% Coverage) + TC Braid Shield (65% Coverage)
Semi-rigid PVC Insulation • Chrome PVC Jacket
UL AWM Style 2464 (300V 80°C) CMG FT4
Belden-8332 2P
Belden-8333 3P
Belden-8334 4P
Belden-8335 5P
Belden-8336 6P
Belden-8337 7P
Belden-8340 10P
Belden-8342 12.5P S
Belden-8345 15P
UL AWM Style 2464 (300V 80°C) CMG FT4
Belden-8348 18P
Belden-8355 25P
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
|
