商品編號: Belden-9839 RS422-SFTP-24

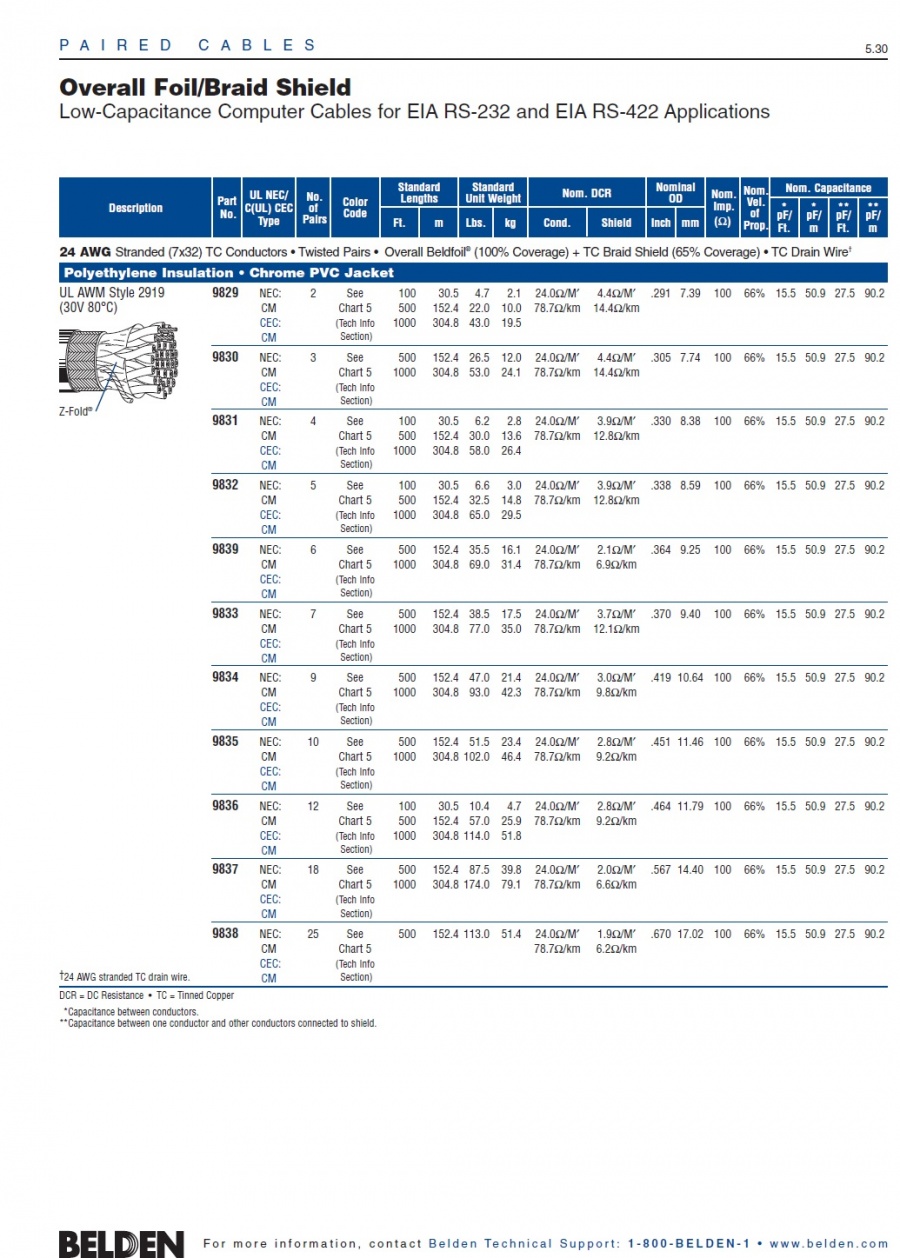

Belden-9838 Low-Capacitance Computer Cables for EIA RS-422 & 232 Overall Foil/Braid Shield 24 AWG (30V 80°C) 100(Ω)歐姆低電容多芯對型UL/2919鋁箔銅網隔離電腦線
verall Foil/Braid Shield
Low-Capacitance Computer Cables for EIA RS-232 and EIA RS-422 Applications
AWG Stranded (7x32) TC Conductors • Twisted Pairs • Overall Beldfoil® (100% Coverage) + TC Braid Shield (65% Coverage) • TC Drain Wire†
Polyethylene Insulation • Chrome PVC Jacket
UL AWM Style 2919 (30V 80°C) CM
Belden-9829 2P
Belden-9830 3P
Belden-9831 4P
Belden-9832 5P
Belden-9839 6P
Belden-9833 7P
Belden-9834 9P
Belden-9835 10P
Belden-9836 12P
Belden-9837 18P
Belden-9838 25P
†24 AWG stranded TC drain wire. CM Section)
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
verall Foil/Braid Shield
Low-Capacitance Computer Cables for EIA RS-232 and EIA RS-422 Applications
24 AWG Stranded (7x32) TC Conductors • Twisted Pairs • Overall Beldfoil® (100% Coverage) + TC Braid Shield (65% Coverage) • Drain Wire†
Datalene® Insulation • Chrome PVC Jacket
UL AWM Style 2919 (30V 80°C) CM
Belden-8102 2P
Belden-8103 3P
Belden-8104 4P
Belden-8105 5P
Belden-8106 6P
Belden-8107 7P
Belden-8108 8P
Belden-8110 10P
Belden-8112 12.5P
Belden-8115 15P
Belden-8118 18P
Belden-8125 25P
†24 AWG stranded TC drain wire. CM Section)
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Datalene insulation features include low dielectric constant and a
dissipation factor for high-speed, low-distortion data handling.
Physical properties include good crush resistance and light weight.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
|
