Belden-Computer P.O.S. Cables Overall Foil/Braid Shield Plenum-Rated and Non-Plenum 22 AWG Solid 100(Ω)歐姆2對鋁箔銅網隔離電腦線

5679962

商品編號: Belden-POS-22

Belden-Computer P.O.S. Cables Overall Foil/Braid Shield Plenum-Rated and Non-Plenum 22 AWG Solid 100(Ω)歐姆2對鋁箔銅網隔離電腦線

★★★★商品說明★★★★

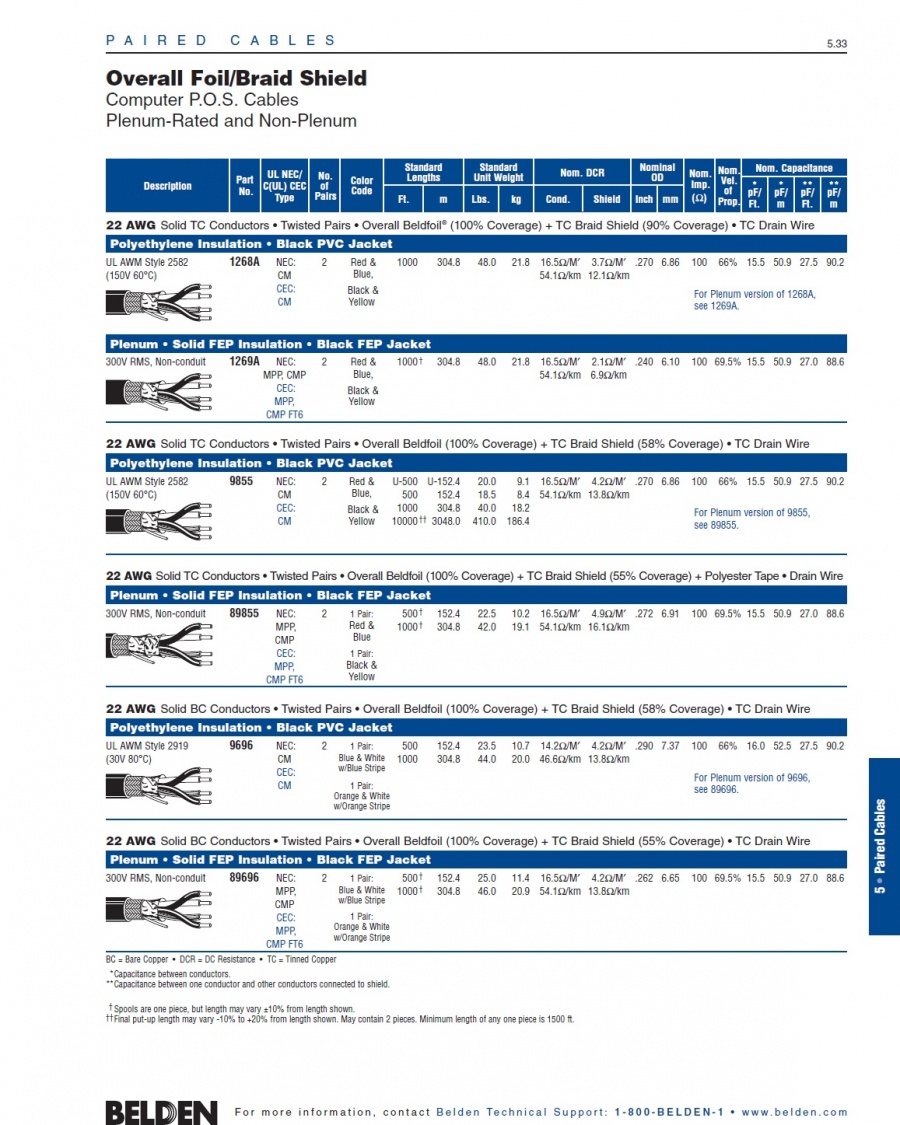

Overall Foil/Braid Shield
Computer P.O.S. Cables
Plenum-Rated and Non-Plenum

22 AWG Solid TC Conductors • Twisted Pairs • Overall Beldfoil® (100% Coverage) + TC Braid Shield (90% Coverage) • TC Drain Wire
Polyethylene Insulation • Black PVC Jacket
UL AWM Style 2582 (150V 60°C) CM

Belden-1268A 2P

Plenum • Solid FEP Insulation • Black FEP Jacket
300V RMS, Non-conduit CMP FT6

Belden-1269A 2P
　

22 AWG Solid TC Conductors • Twisted Pairs • Overall Beldfoil (100% Coverage) + TC Braid Shield (58% Coverage) • TC Drain Wire
Polyethylene Insulation • Black PVC Jacket
UL AWM Style 2582 (150V 60°C) CM

Belden-9855 2P

22 AWG Solid TC Conductors • Twisted Pairs • Overall Beldfoil (100% Coverage) + TC Braid Shield (55% Coverage) + Polyester Tape • Drain Wire
Plenum • Solid FEP Insulation • Black FEP Jacket
300V RMS, Non-conduit CMP FT6

Belden-89855 2P
　

22 AWG Solid BC Conductors • Twisted Pairs • Overall Beldfoil (100% Coverage) + TC Braid Shield (58% Coverage) • TC Drain Wire
Polyethylene Insulation • Black PVC Jacket
UL AWM Style 2919 (30V 80°C) CM

Belden-9696 2P
　

22 AWG Solid BC Conductors • Twisted Pairs • Overall Beldfoil (100% Coverage) + TC Braid Shield (55% Coverage) • TC Drain Wire
Plenum • Solid FEP Insulation • Black FEP Jacket
300V RMS, Non-conduit CMP FT6

Belden-89696 2P
BC = Bare Copper • DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Spools are one piece, but length may vary ±10% from length shown.
††Final put-up length may vary -10% to +20% from length shown. May contain 2 pieces. Minimum length of any one piece is 1500 ft.

★★★★商品規格描述★★★★

Introduction

Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
　

Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
　

As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
　

Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
　

Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
