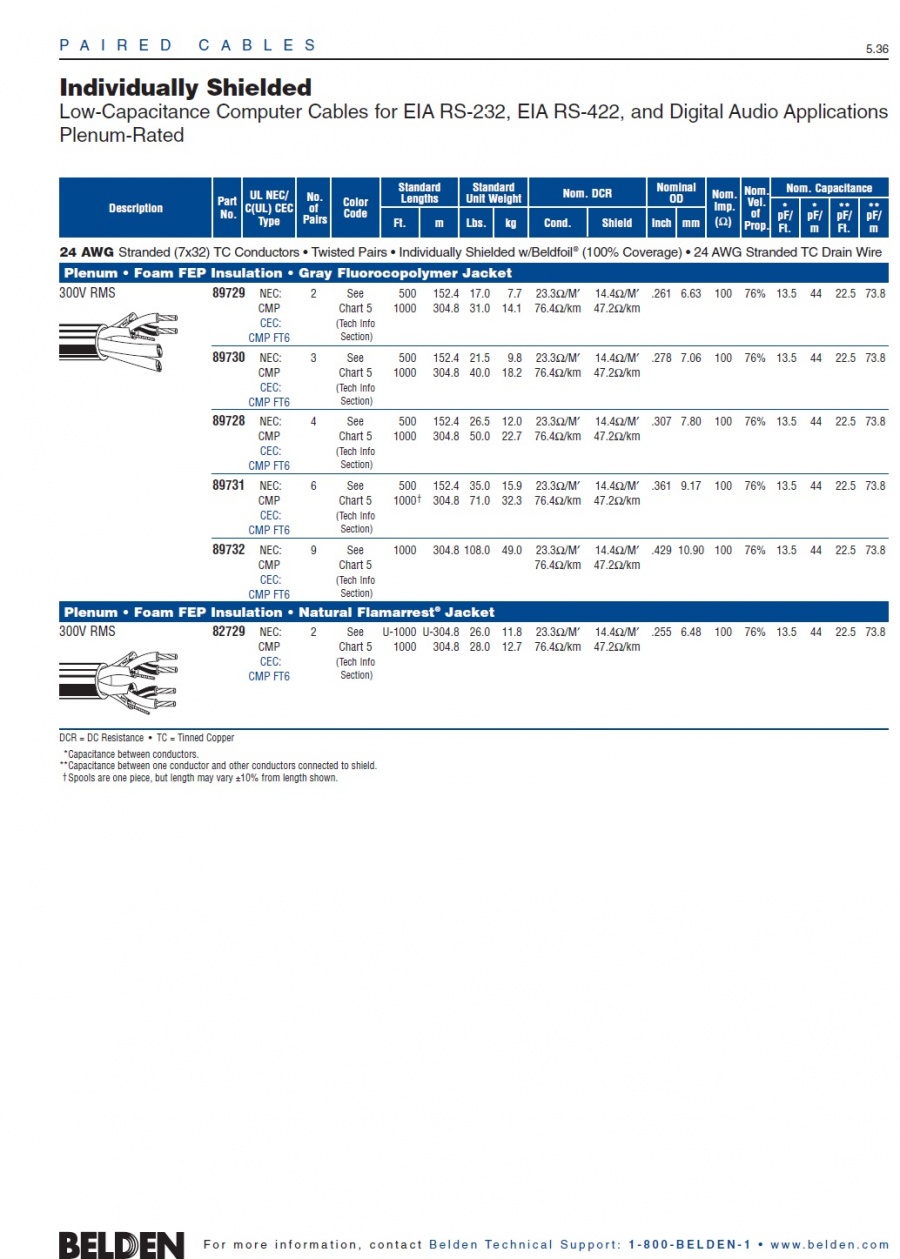

| | Individually Shielded Low-Capacitance Computer Cables for EIA RS-232, EIA RS-422, and Digital Audio Applications Plenum-Rated 24 AWG Stranded (7x32) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 24 AWG Stranded TC Drain Wire Plenum • Foam FEP Insulation • Gray Fluorocopolymer Jacket 300V RMS CMP FT6 Belden-89729 2P Belden-89730 3P Belden-89728 4P Belden-89731 6P Belden-89732 9P Plenum • Foam FEP Insulation • Natural Flamarrest® Jacket 300V RMS CMP FT6
Belden-82729 2P DCR = DC Resistance • TC = Tinned Copper *Capacitance between conductors. **Capacitance between one conductor and other conductors connected to shield. † Spools are one piece, but length may vary ±10% from length shown. |
| | | |
| | Introduction Belden® paired cable products are manufactured in a variety of gage sizes, dimensions, insulation materials, shielding configurations, and jacketing materials including Plenum and High-Temperature versions to meet the technical requirements of many different types of systems.
Paired cables allow balanced signal transmission, which results in lower crosstalk through common mode rejection. Due to the improved noise immunity of twisted pairs, they generally permit higher data speeds than multi-conductor cables. As an aid to proper cable selection, both the suggested working voltages and the maximum temperature ratings are indicated for each applicable paired cable selection. Most of our paired cables are available from stock. Many of these are available off the shelf from distributors. If you have a new or unusual application or you cannot find a paired cable in this catalog section that meets your technical requirements, contact Technical Support at 1-800-BELDEN-1. Paired Cables Packaging Belden’s unique UnReel® cable dispenser is available for many of the paired cable products listed in this section. The letter “U” before the specified put-up length denotes UnReel packaging |
| |
|
|
