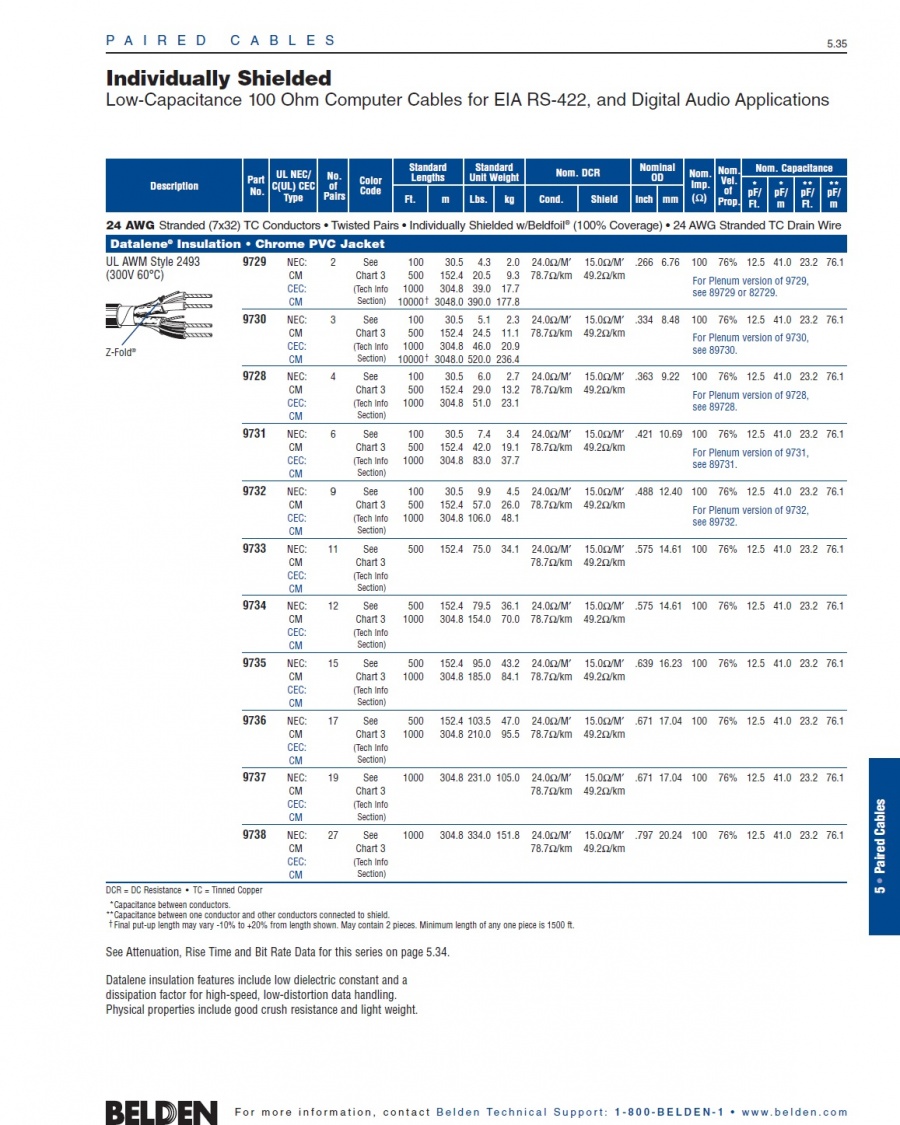

Individually Shielded
Low-Capacitance 100 Ohm Computer Cables for EIA RS-422, and Digital Audio Applications
24 AWG Stranded (7x32) TC Conductors • Twisted Pairs • Individually Shielded w/Beldfoil® (100% Coverage) • 24 AWG Stranded TC Drain Wire
Datalene® Insulation • Chrome PVC Jacket
UL AWM Style 2493 (300V 60°C) CM
Belden-9729 2P
Belden-9730 3P
Belden-9728 4P
Belden-9731 6P
Belden-9732 9P
Belden-9733 11P
Belden-9734 12P
Belden-9735 15P
Belden-9736 17P
Belden-9737 19P
Belden-9738 27P
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
† Final put-up length may vary -10% to +20% from length shown. May contain 2 pieces. Minimum length of any one piece is 1500 ft.

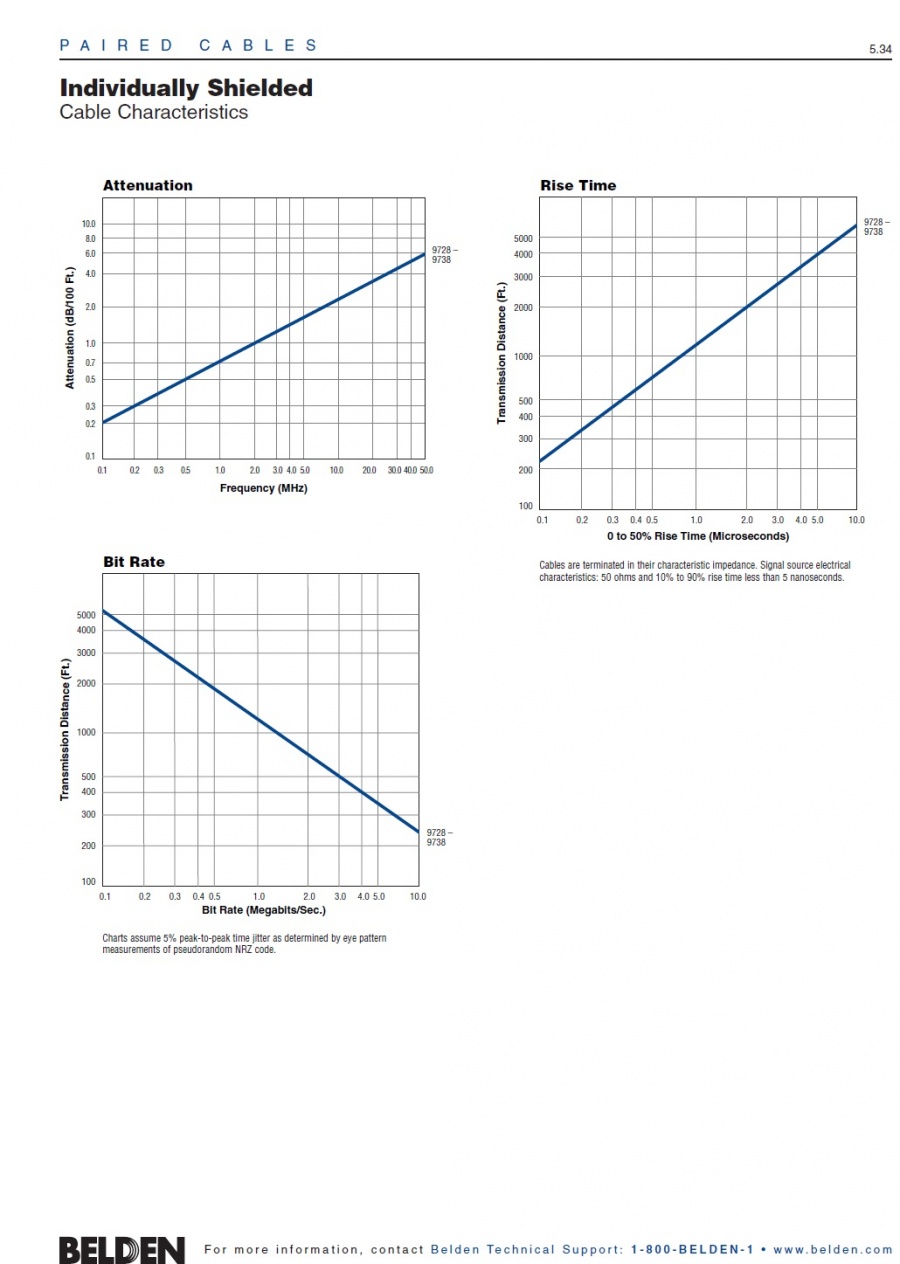

See Attenuation, Rise Time and Bit Rate Data for this series on page 5.34.
Datalene insulation features include low dielectric constant and a
dissipation factor for high-speed, low-distortion data handling.
Physical properties include good crush resistance and light weight.
Introduction
Belden® paired cable products are manufactured in a variety of gage
sizes, dimensions, insulation materials, shielding configurations,
and jacketing materials including Plenum and High-Temperature
versions to meet the technical requirements of many different types
of systems.
Paired cables allow balanced signal transmission, which results
in lower crosstalk through common mode rejection. Due to the
improved noise immunity of twisted pairs, they generally permit
higher data speeds than multi-conductor cables.
As an aid to proper cable selection, both the suggested working
voltages and the maximum temperature ratings are indicated for
each applicable paired cable selection.
Most of our paired cables are available from stock. Many of these
are available off the shelf from distributors. If you have a new or
unusual application or you cannot find a paired cable in this catalog
section that meets your technical requirements, contact Technical
Support at 1-800-BELDEN-1.
Paired Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many
of the paired cable products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
