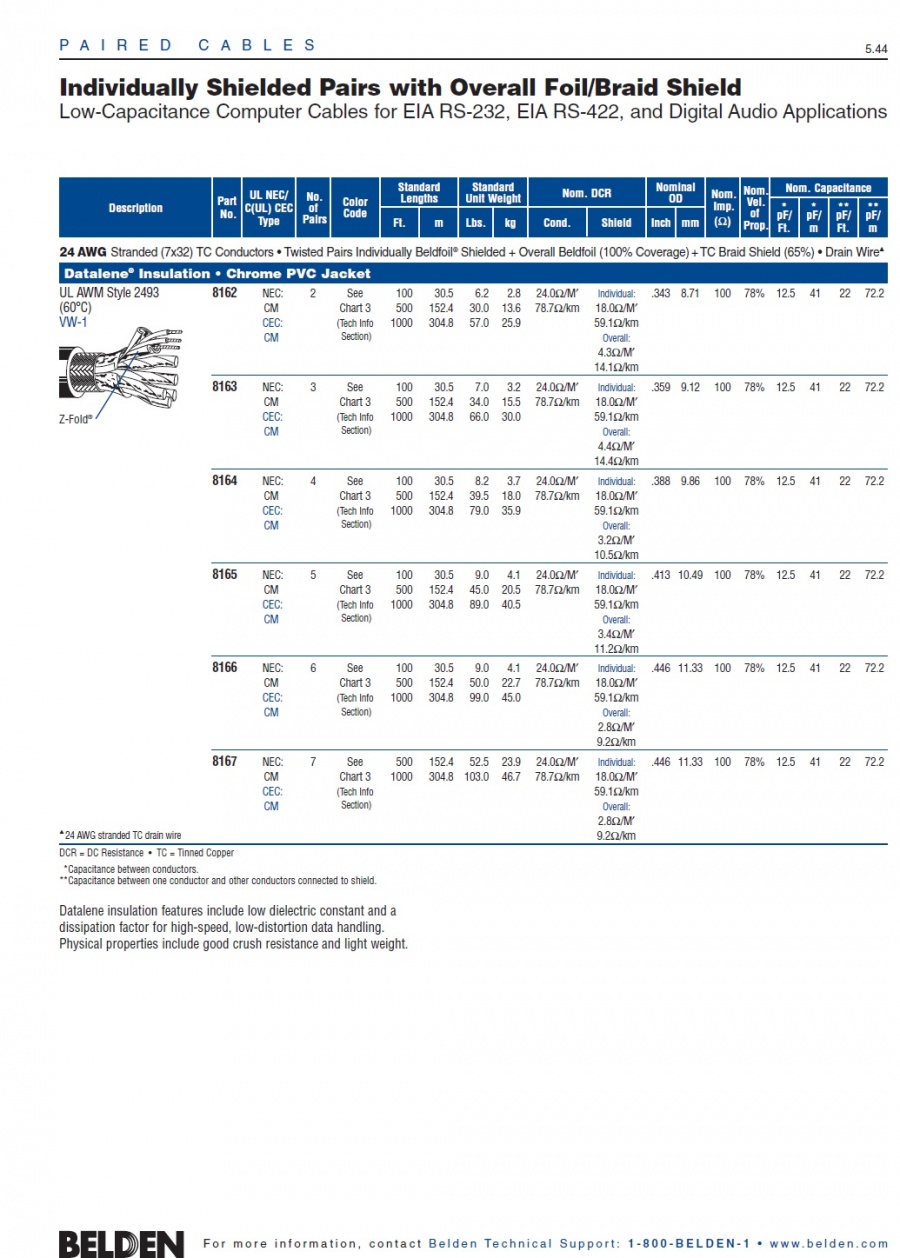

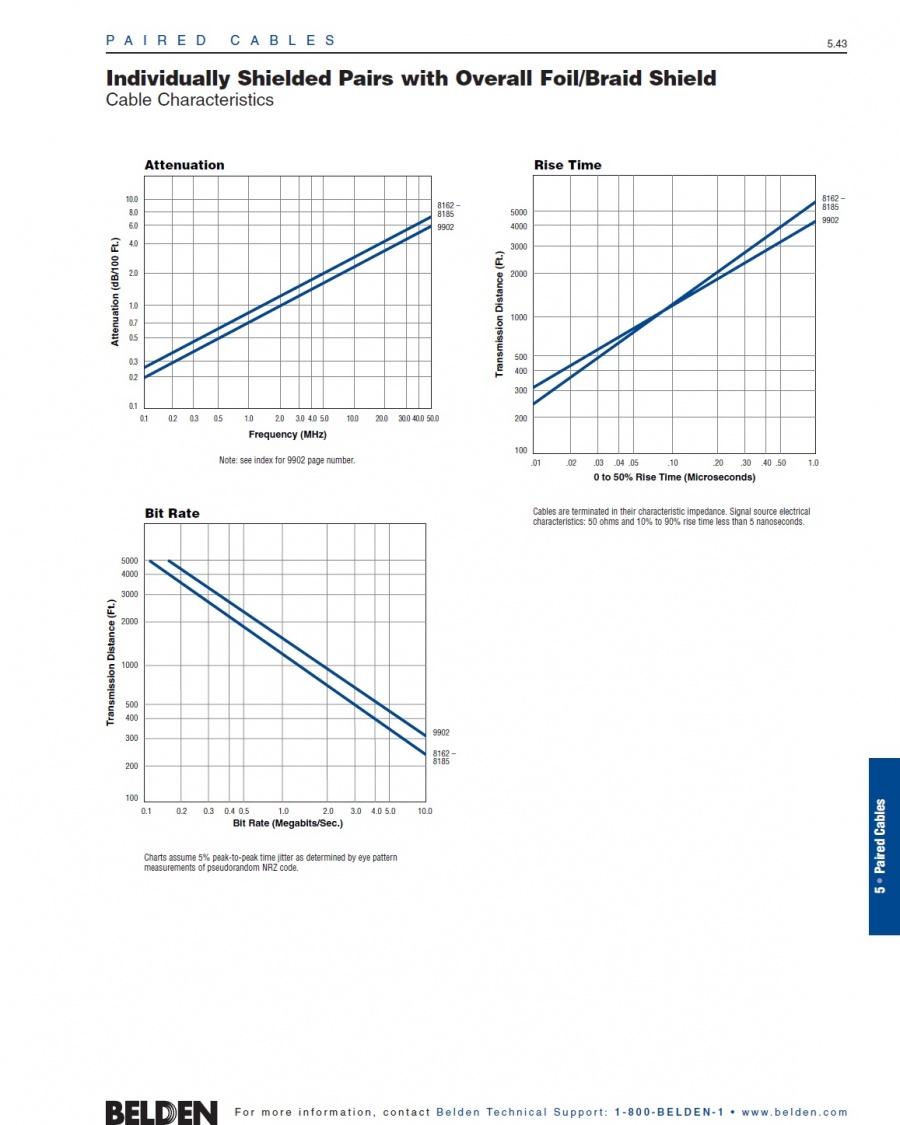

Individually Shielded Pairs with Overall Foil/Braid Shield

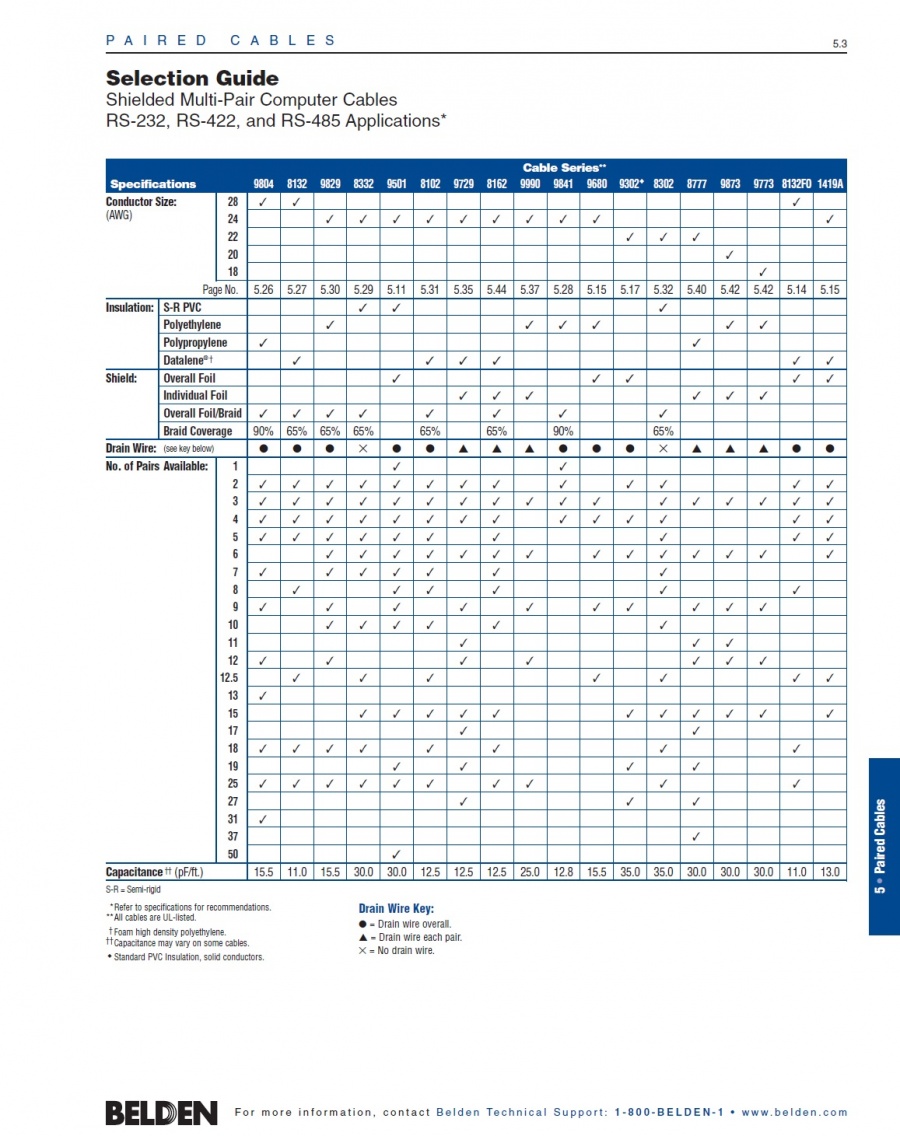

Low-Capacitance Computer Cables for EIA RS-232, EIA RS-422, and Digital Audio Applications
24 AWG Stranded (7x32) TC Conductors • Twisted Pairs Individually Beldfoil® Shielded + Overall Beldfoil (100% Coverage) + TC Braid Shield (65%) • Drain Wire
Datalene® Insulation • Chrome PVC Jacket
UL AWM Style 2493 (60°C) CM VW-1 100Ω
Belden-8162 2P
Belden-8163 3P
Belden-8164 4P
Belden-8165 5P
Belden-8166 6P
Belden-8167 7P
24 AWG stranded TC drain wire 9.2Ω/km
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
Datalene insulation features include low dielectric constant and a
dissipation factor for high-speed, low-distortion data handling.
Physical properties include good crush resistance and light weight.
Datalene® Insulation • Chrome PVC Jacket
UL AWM Style 2493
Belden-8168 8P
Belden-8170 10P
Belden-8175 15P
Belden-8178 18P
Belden-8185 25P
24 AWG stranded TC drain wire 7.9Ω/km
DCR = DC Resistance • TC = Tinned Copper
*Capacitance between conductors.
**Capacitance between one conductor and other conductors connected to shield.
|
