商品編號: Belden-9966

Belden-9966 MIL-W-16878 (Type B) 22 AWG x 2C TC, TC braid shield 600V 105°C PVC/Nylon -PVC jacket. 軍規PVC尼龍絕緣PVC被覆鍍錫銅網隔離電纜


9966    Multi-Conductor - 2 Conductors Cabled -Communication and Instrumentation Cable 22 AWG stranded (19x34) tinned copper conductors, nylon skin over insulation, PVC insulation, tinned copper braid shield (90% coverage), PVC jacket. For more Information please call 1-800-Belden1 Put Ups and Colors: Item # Putup Ship Weight Color Notes Item Desc 9966 009100 100 FT 2.600 LB WHITE 　 2 #22 PVC/NY SHLD PVC 9966 0091000 1,000 FT 19.000 LB WHITE C 2 #22 PVC/NY SHLD PVC 9966 009500 500 FT 10.500 LB WHITE 　 2 #22 PVC/NY SHLD PVC Notes: 　 C = CRATE REEL PUT-UP. 　 Physical Characteristics (Overall) Conductor AWG: # Conductors AWG Stranding Conductor Material 2 22 19x34 TC - Tinned Copper Insulation Insulation Material: Layer # Insulation Material Wall Thickness (in.) 1 PVC - Polyvinyl Chloride .010 2 Nylon .003 Insulation Resistance: 500 megohms/1000 ft. @ 500 VDC Outer Shield Outer Shield Material: Type Outer Shield Material Coverage (%) Braid TC - Tinned Copper 90 Outer Jacket Outer Jacket Material: Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride .020 Overall Cabling Overall Cabling Lay Length & Direction: Length (in.) Twists (ft.) 1.5 8 Overall Cabling Color Code Chart: Number Color 1 White 2 Black Overall Nominal Diameter: 0.176 in. Mechanical Characteristics (Overall) Operating Temperature Range: -20°C To +105°C UL Temperature Rating: 105°C Bulk Cable Weight: 18.600 lbs/1000 ft. Max. Recommended Pulling Tension: 19 lbs. Min. Bend Radius (Install)/Minor Axis: 1.750 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes Military Specification: MIL-W-16878E/17 (insulated conductor) Flame Test UL Flame Test: UL1685 UL Loading, VW-1 Plenum/Non-Plenum Plenum (Y/N): No Electrical Characteristics (Overall) Nom. Inductance: Inductance (µH/ft) .129 Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 52 Nom. Capacitance Cond. to Other Conductor & Shield: Capacitance (pF/ft) 87 Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 14.6 Nominal Outer Shield DC Resistance: DCR @ 20°C (Ohm/1000 ft) 6.2 Max. Operating Voltage - UL: Voltage 600 V RMS Max. Recommended Current: Current 2.8 Amps per conductor @ 25°C
★★★★商品規格描述★★★★

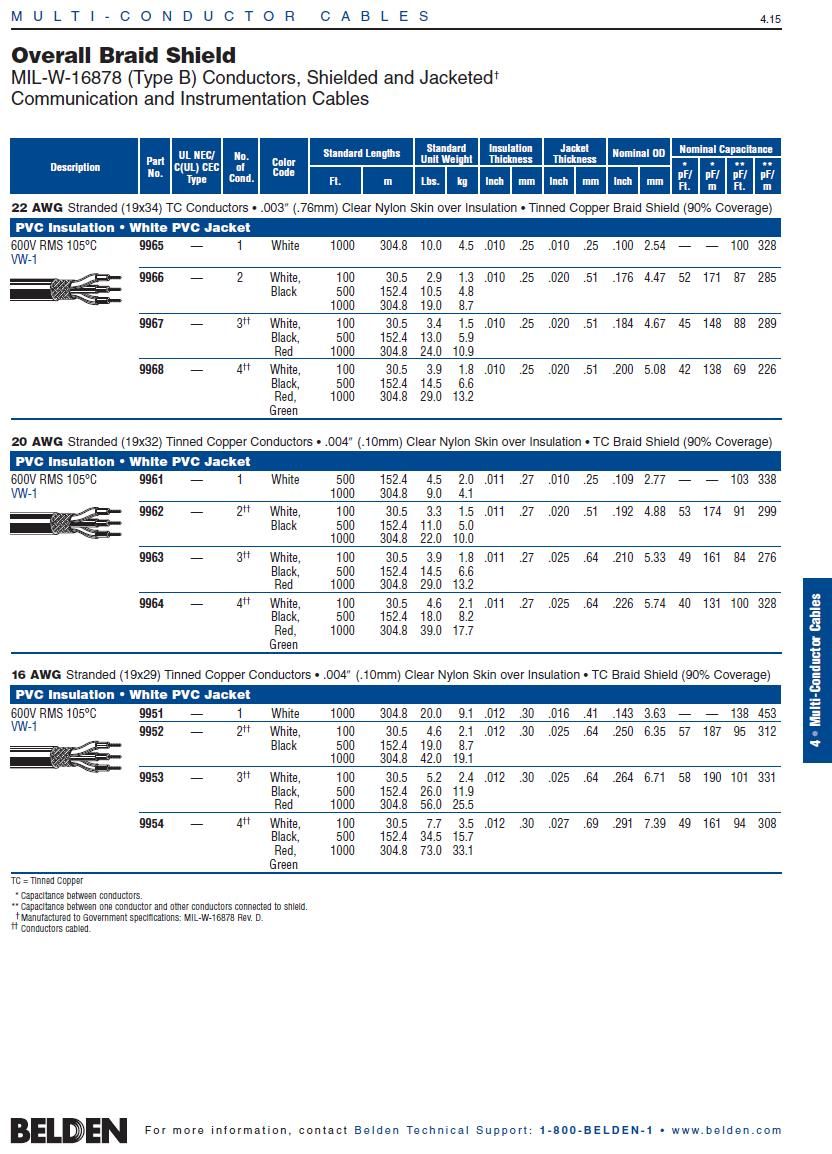

Overall Braid Shield
MIL-W-16878 (Type B) Conductors, Shielded and Jacketed†
Communication and Instrumentation Cables
　

22 AWG Stranded (19x34) TC Conductors • .003″ (.76mm) Clear Nylon Skin over Insulation • Tinned Copper Braid Shield (90% Coverage)
PVC Insulation • White PVC Jacket
600V RMS 105°CBelden-9965 — 1C
VW-1
Belden-9966 — 2C
Belden-9967 — 3C††
Belden-9968 — 4C††
　

20 AWG Stranded (19x32) Tinned Copper Conductors • .004″ (.10mm) Clear Nylon Skin over Insulation • TC Braid Shield (90% Coverage)
PVC Insulation • White PVC Jacket
600V RMS 105°CBelden-9961 — 1C
Belden-9962 — 2C††
Belden-9963 — 3C††
Belden-9964 — 4C††
　

16 AWG Stranded (19x29) Tinned Copper Conductors • .004″ (.10mm) Clear Nylon Skin over Insulation • TC Braid Shield (90% Coverage)
PVC Insulation • White PVC Jacket
600V RMS 105°CBelden-9951 — 1C VW-1

Belden-9952 — 2C††
Belden-9953 — 3C††
Belden-9954 — 4C††

Introduction

Belden® multi-conductor cables are manufactured in a wide
variety of gage sizes, dimensions, insulation materials, shielding
configurations, and jacketing materials including Plenum and
High-Temperature versions. These cables meet the technical
requirements of many different types of systems. In fact, Belden
offers one of the broadest lines of UL Listed, NEC and CEC
multi-conductor cables available from any single source.
　

Applications for multi-conductor cables include computers,
communications, instrumentation, sound, control, audio, and
data transmission. Each of these cables is designed to protect
signal integrity under critical conditions by reducing hum, noise,
and crosstalk.
　

To assist you in selecting the proper cable for your application,
both the suggested working voltages and the maximum temperature
ratings are indicated for each applicable product in this section.
　

Most of our multi-conductor cables are available from stock. Many
of these are available off the shelf from distributors. If you have a
new or unusual application or you cannot find a multi-conductor
cable in this catalog section that meets your technical requirements,
contact Technical Support at 1-800-BELDEN-1.
　

Multi-Conductor Cables Packaging
Belden’s unique UnReel® cable dispenser is available for many of
the multi-conductor products listed in this section. The letter “U”
before the specified put-up length denotes UnReel packaging
