    首頁 > > Belden® Molded Cable Assemblies 電纜接頭一體成型組裝

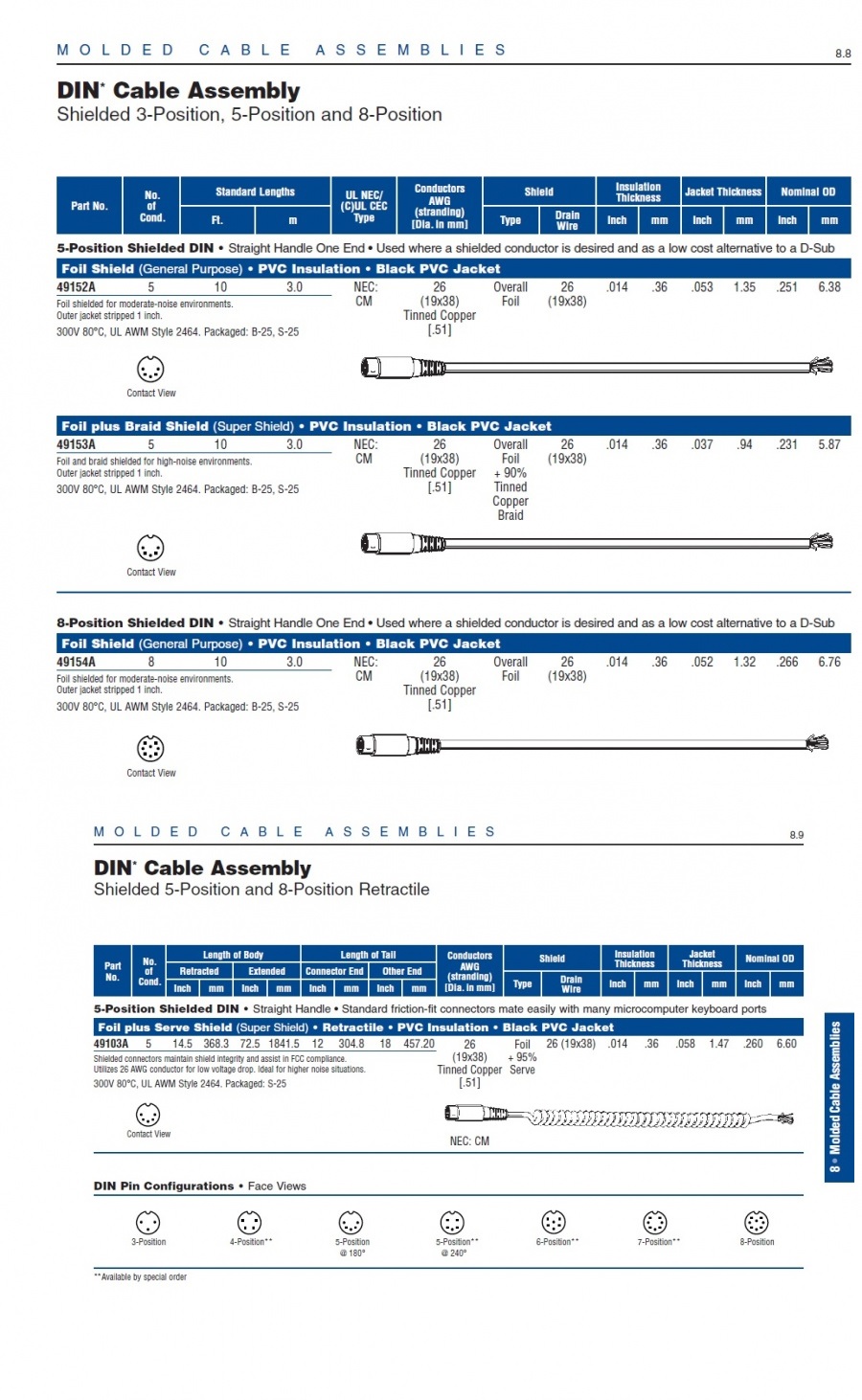

    Belden-49153A  DIN* Cable Assembly Shielded 3, 5 and 8-Position Shielded 5 and 8-Position Retractile DIN型電腦隔離線接頭組裝
    看原圖
    5674080

    商品編號: Belden-DIN

    Belden-
    49103A  DIN* Cable Assembly Shielded 3, 5 and 8-Position Shielded 5 and 8-Position Retractile DIN型電腦隔離線接頭組裝

    DIN* Cable Assembly
    Shielded 3-Position, 5-Position and 8-Position

    5-Position Shielded DIN • Straight Handle One End • Used where a shielded conductor is desired and as a low cost alternative to a D-Sub
    Foil Shield (General Purpose) • PVC Insulation • Black PVC Jacket
    Belden-49152A
    Foil shielded for moderate-noise environments.
    Outer jacket stripped 1 inch.
    300V 80°C, UL AWM Style 2464. Packaged: B-25, S-25


    Foil plus Braid Shield (Super Shield) • PVC Insulation • Black PVC Jacket
    Belden-
    49153A
    Foil and braid shielded for high-noise environments.
    Outer jacket stripped 1 inch.
    300V 80°C, UL AWM Style 2464. Packaged: B-25, S-25

    DIN* Cable Assembly
    Shielded 5-Position and 8-Position Retractile

    5-Position Shielded DIN • Straight Handle • Standard friction-fit connectors mate easily with many microcomputer keyboard ports
    Foil plus Serve Shield (Super Shield) • Retractile • PVC Insulation • Black PVC Jacket
    Belden-49103A
    Shielded connectors maintain shield integrity and assist in FCC compliance.
    Utilizes 26 AWG conductor for low voltage drop. Ideal for higher noise situations.
    300V 80°C, UL AWM Style 2464. Packaged: S-25





    ★★★★商品規格描述★★★★


    Introduction
    Quality Construction

    Belden® molded cable assemblies are designed for long life
    and reliable performance in a variety of input/output (I/O) and
    keyboard interface applications. Among the many features of the
    cable assemblies are these performance-enhancing attributes:
    Shielding


    Molded handles are 100% shielded (where used) to assist in FCC
    compliance while guarding against EMI and RFI. Shield continuity
    is maintained through the entire length of the assembly. The
    connector shield is connected to both the connector shell and the
    cable shield. This provides a low resistance ground path to optimize
    shield performance.


    Handles
    Straight or right angle handles are available for different
    connecting situations. Standard molding is PVC.
    Connectors
    Connectors consist of tin-plated shells with grounding indents
    on male connectors. Pins and sockets are constructed of brass
    or phosphor-bronze base with gold selectively plated over nickel.


    Retention Systems
    Belden offers several types of retention systems.
    They include:
    ● Friction: Pin/contact force holds connectors mated.
    ● Screw: Retaining screws mate with female screwlocks.
    Straight handle uses two screws; right angle handle
    uses one screw. Screws are #4-40 thread of plated
    steel with stainless steel clips.
    ● Slide Lock: Fingertip-operated slide mechanism holds
    mated connectors securely. Slide lock clip is stainless
    steel with plated screw, washer, and hex nut.
    ● Spring Latch: Stainless steel latch mates with latching blocks
    (special orders only).
    ● Jack Screw: Two captive jacks crews mate securely with
    female screwlocks. Zinc plated, #4-40 thread screws with
    large knurled heads for easy fingertip connect/disconnect.


    Wiring Patterns
    Standard wiring is point-to-point on most assemblies. Special wiring
    is available upon request.
    Cables
    For standard assemblies, Belden utilizes three standard cable
    configurations for tailoring a cable to a specific electrical environment.
    The cable configurations are as follows:
    ● General Purpose Unshielded: An economical assembly
    where electrical noise/interference is not a problem.
    ● General Purpose Shielded: An overall foil shielded
    assembly for use in situations where some noise/interference
    is experienced or anticipated.
    ● Super Shield: A foil plus braid shield provides extra protection
    in areas of moderate to heavy noise/interference.


    Most of our molded cable assemblies are available from stock in
    a wide variety of handles, cables, colors, retention systems, and
    wiring patterns. Many of these are available off the shelf from
    distributors. If you have a new or unusual application or you cannot
    find molded cables in this catalog section that meet your technical
    requirements, contact Technical Support at 1-800-BELDEN-1.
    Molded Cable Assemblies Packaging


    Unless otherwise indicated, molded cable assemblies are shipped
    in individual packages or plastic bags with printed part numbers,
    descriptions and an area to indicate the retail price.
