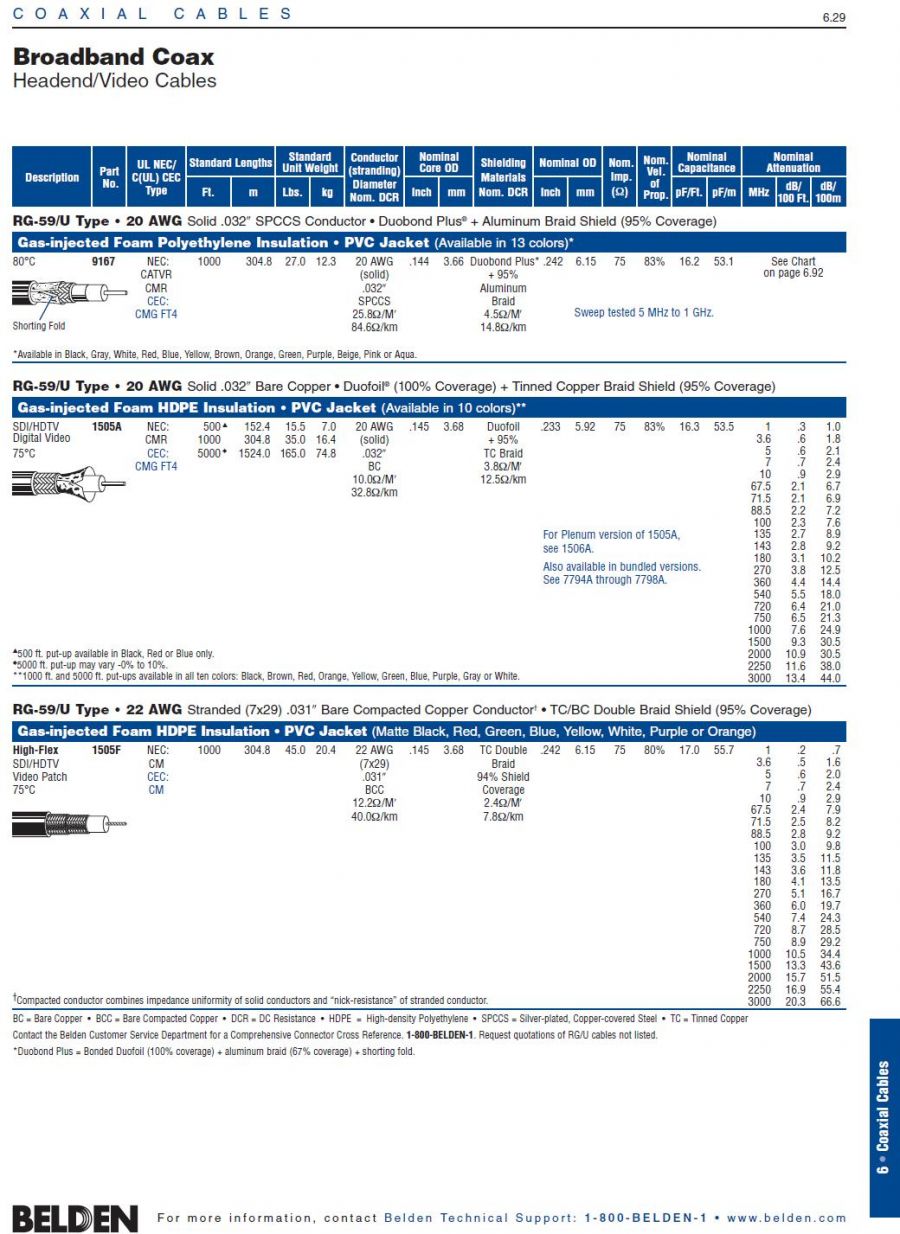

    Belden 1505F Brilliance RG-59/U Flexible Type Precision Digital Video Coaxial Cable(double tinned copper braid.) 雙銅網隔離現場佈放超柔移動式影像同軸電纜
    看原圖
    162694

    商品編號: Belden-1505F

    Belden 1505F Brilliance RG-59/U Flexible Type Precision Digital Video Coaxial Cable(double tinned copper braid.) 雙銅網隔離現場佈放超柔移動式影像同軸電纜

    1505F
       Coax - RG-59/U Type
    22 AWG stranded (7x29) .031" bare compacted copper conductor, gas-injected foam HDPE insulation, tinned copper double braid shield (98% coverage), PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    1505F B591000 1,000 FT 45.000 LB BLACK, MATTE C #21 GIFHDLDPE DBLB PVC
    1505F G7V1000 1,000 FT 45.000 LB RED, MATTE C #21 GIFHDLDPE DBLB PVC
    1505F G7W1000 1,000 FT 45.000 LB GREEN, MATTE C #21 GIFHDLDPE DBLB PVC
    1505F G7X1000 1,000 FT 45.000 LB BLUE, MATTE C #21 GIFHDLDPE DBLB PVC
    1505F G7Y1000 1,000 FT 45.000 LB WHITE, MATTE C #21 GIFHDLDPE DBLB PVC
    1505F G8L1000 1,000 FT 45.000 LB ORANGE, MATTE C #21 GIFHDLDPE DBLB PVC
    1505F Z4B1000 1,000 FT 45.000 LB VIO Z4B   #21 GIFHDLDPE DBLB PVC
    1505F 0041000 1,000 FT 45.000 LB YELLOW C #21 GIFHDLDPE DBLB PVC
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 22 7x29 BCC - Bare Compacted Copper .031
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    Gas-injected FHDPE - Foam High Density Polyethylene .145
    Outer Shield
    Outer Shield Material:
    Layer # Type Outer Shield Material Coverage (%) Dia. (in.) Description
    1 Braid TC - Tinned Copper 94 .167 Layer 1
    2 Braid TC - Tinned Copper 94 .189 Layer 2
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.242 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -35°C To +75°C
    UL Temperature Rating: 75°C
    Bulk Cable Weight: 41 lbs/1000 ft.
    Max. Recommended Pulling Tension: 90 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.400 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CM
    CEC/C(UL) Specification: CM
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    RG Type: 59/U
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Suitability
    Suitability - Indoor: Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    75
    Nom. Inductance:
    Inductance (µH/ft)
    0.094
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    17.0
    Nominal Velocity of Propagation:
    VP (%)
    80
    Nominal Delay:
    Delay (ns/ft)
    1.3
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    12.2
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    2.4
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1.000 0.200
    3.600 0.500
    5.000 0.600
    6.000 0.670
    7.000 0.730
    10.000 0.900
    12.000 0.980
    25.000 1.440
    67.500 2.400
    71.500 2.500
    88.500 2.800
    100.000 3.000
    135.000 3.500
    143.000 3.600
    180.000 4.100
    270.000 5.100
    360.000 6.000
    540.000 7.400
    720.000 8.700
    1000.000 10.500
    750.000 8.900
    1500.000 13.300
    2000.000 15.700
    2250.000 16.900
    3000.000 20.300
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination.
    Other Electrical Characteristic 2: Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and termination.
    Minimum Return Loss:
    Start Freq. (MHz) Stop Freq. (MHz) Min. RL (dB)
    5.000 850.000 20.000
    851.000 4500.000 15.000
