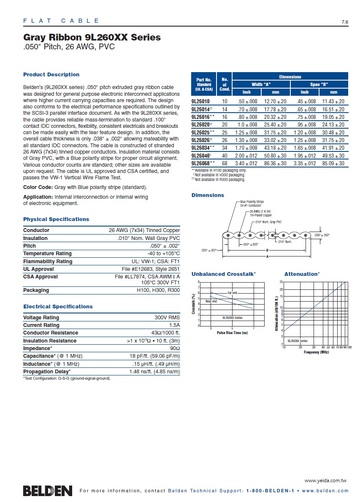

Gray Ribbon 9L260XX Series
.050″ Pitch, 26 AWG, PVC

Belden- 9L26010  10C
Belden- 9L26014  14C
Belden- 9L26016  16C
Belden- 9L26020   20C
Belden- 9L26025   25C
Belden- 9L26026   26C
Belden- 9L26034   34C
Belden- 9L26040   40C
Belden- 9L26068   68C

Product Description

Belden’s (9L260XX series) .050″ pitch extruded gray ribbon cable
was designed for general purpose electronic interconnect applications
where higher current carrying capacities are required. The design
also conforms to the electrical performance specifications outlined by
the SCSI-3 parallel interface document. As with the 9L280XX series,
the cable provides reliable mass-termination to standard .100″
contact IDC connectors, flexibility, consistent electricals and breakouts
can be made easily with the tear feature design. In addition, the
overall cable thickness is only .038″ ± .002″ allowing mateability with
all standard IDC connectors. The cable is constructed of stranded
26 AWG (7x34) tinned copper conductors. Insulation material consists
of Gray PVC, with a Blue polarity stripe for proper circuit alignment.
Various conductor counts are standard; other sizes are available
upon request. The cable is UL approved and CSA certified, and
passes the VW-1 Vertical Wire Flame Test.
　

Color Code: Gray with Blue polarity stripe (standard).
Application: Internal interconnection or internal wiring
of electronic equipment.
